Macintosh Classic - Page 39

Take Apart Power/Sweep Board - 10

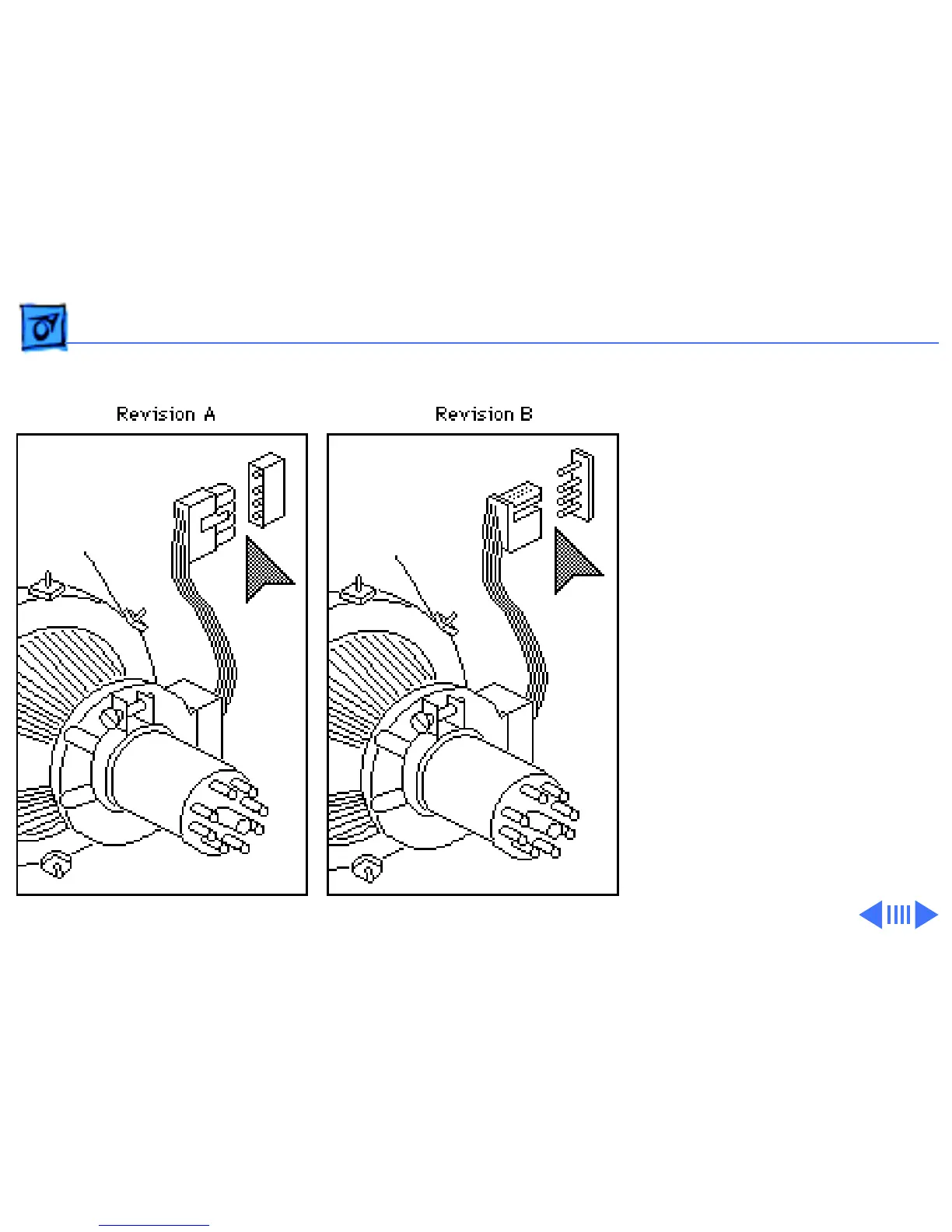

Note: The two versions of
the power/sweep board,
Rev A and Rev B, are
functionally equivalent, but
they are not
interchangeable.
In addition, a Rev A power/
sweep board must be used
with a Rev A CRT yoke
assembly and a Rev A or Rev
B cover. A Rev B power/
sweep board must be used
with a Rev B CRT yoke
assembly and a Rev B cover.
