Take Apart Logic Board - 14

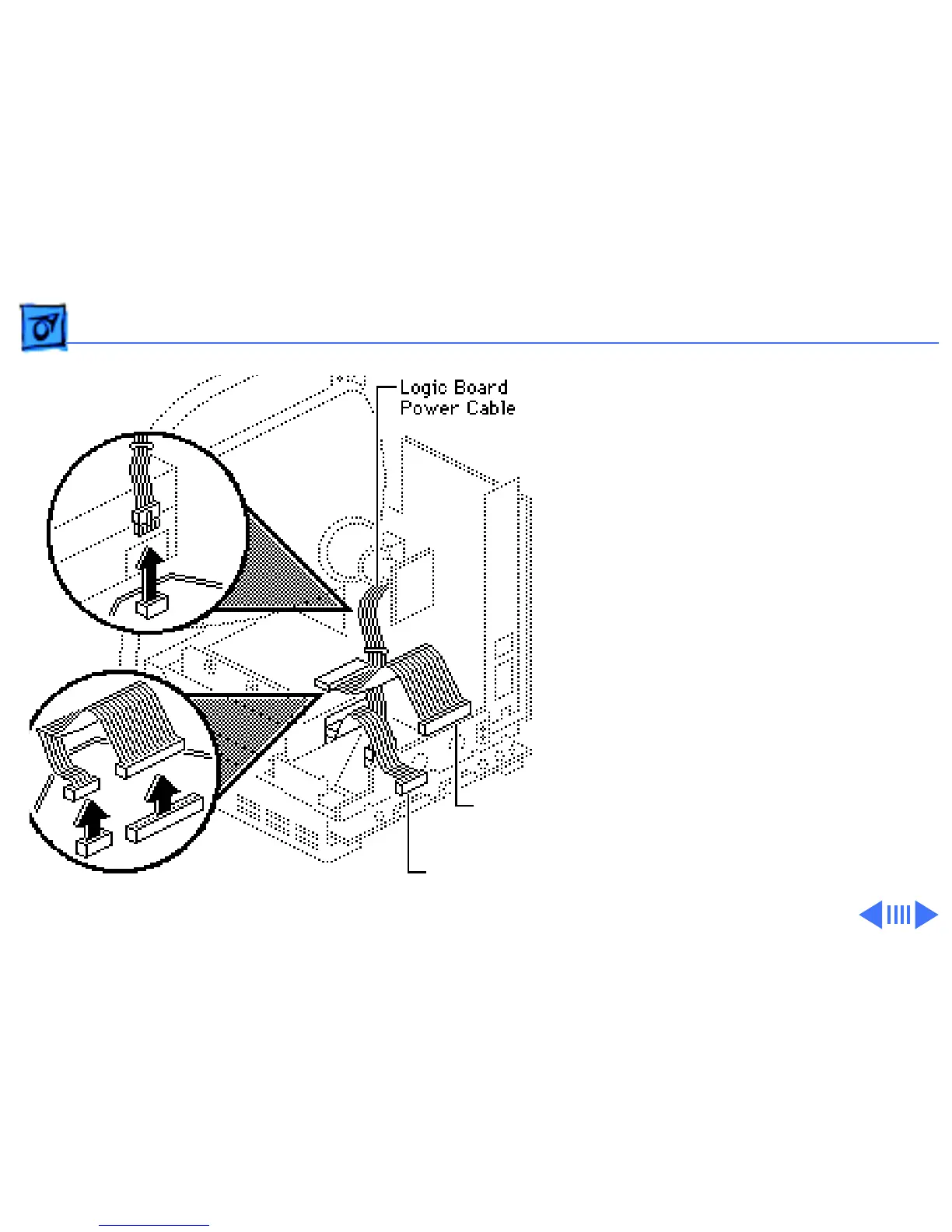

1 Remove the following
cable connectors from
the logic board:
• Logic board power
cable
• Floppy drive cable
• Hard drive data
cable (if present)
Hard Drive
Floppy Drive Cable
Data Cable
