Macintosh Classic - Page 59

Take Apart CRT - 30

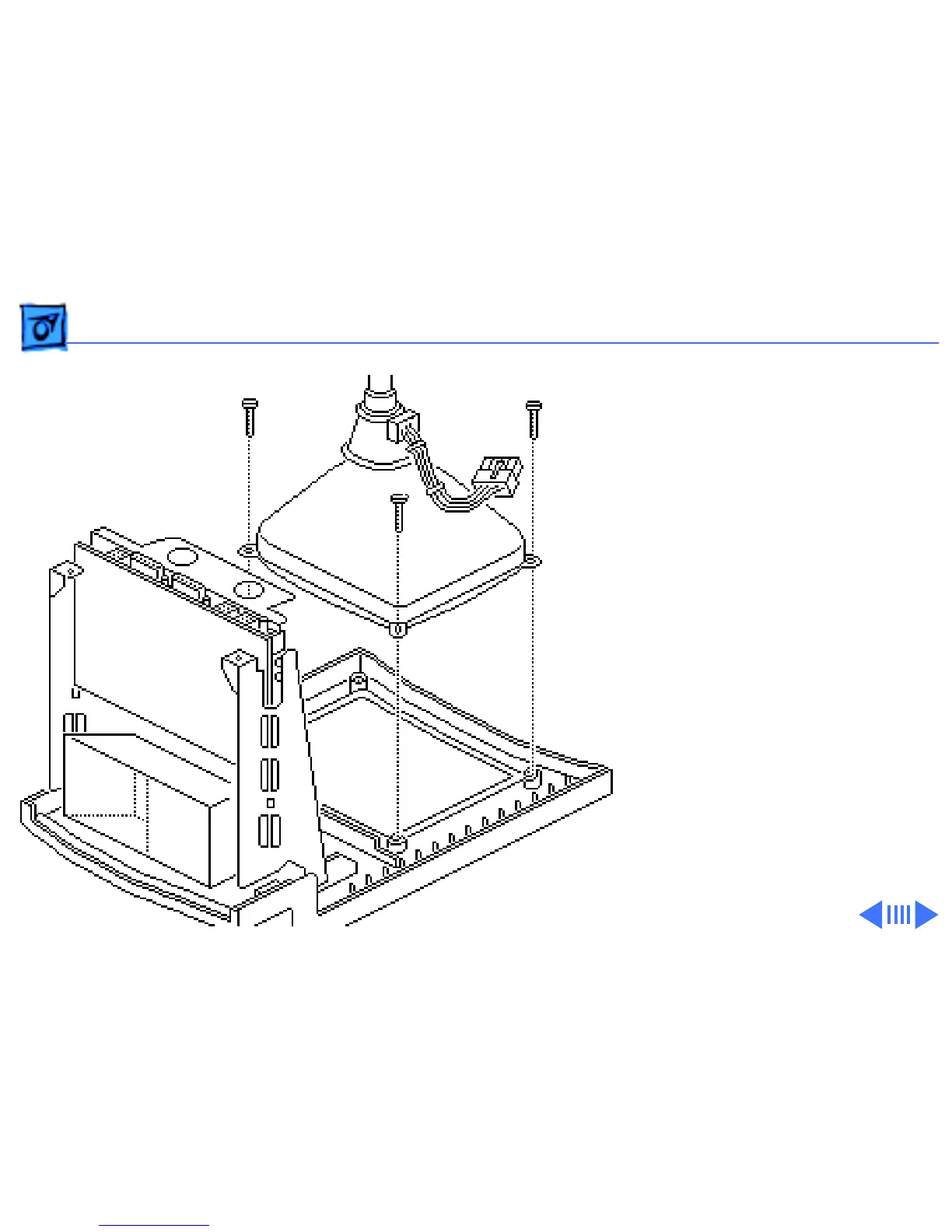

1 Remove the three Torx
screws from the
corners of the CRT.
2 Carefully lift the CRT
free from the bezel.
Note: The CRT yoke
assembly must be
compatible with the power/
sweep assembly, which is
available in two versions,
Rev A and Rev B. CRT yoke
assembly Rev A requires
power/sweep board Rev A.
CRT yoke assembly Rev B
requires power/sweep
board Rev B.
