D8B Manual • Chapter 1 • page 5
2. Connect the data cable between the Remote CPU
and the console. Rotate the thumbscrews on each
connector clockwise until they are finger tight.
3. Make sure the POWER switch on the Remote
CPU is off.
4. Connect the detachable linecord to the Remote
CPU. Shortly, we’ll connect to AC power.

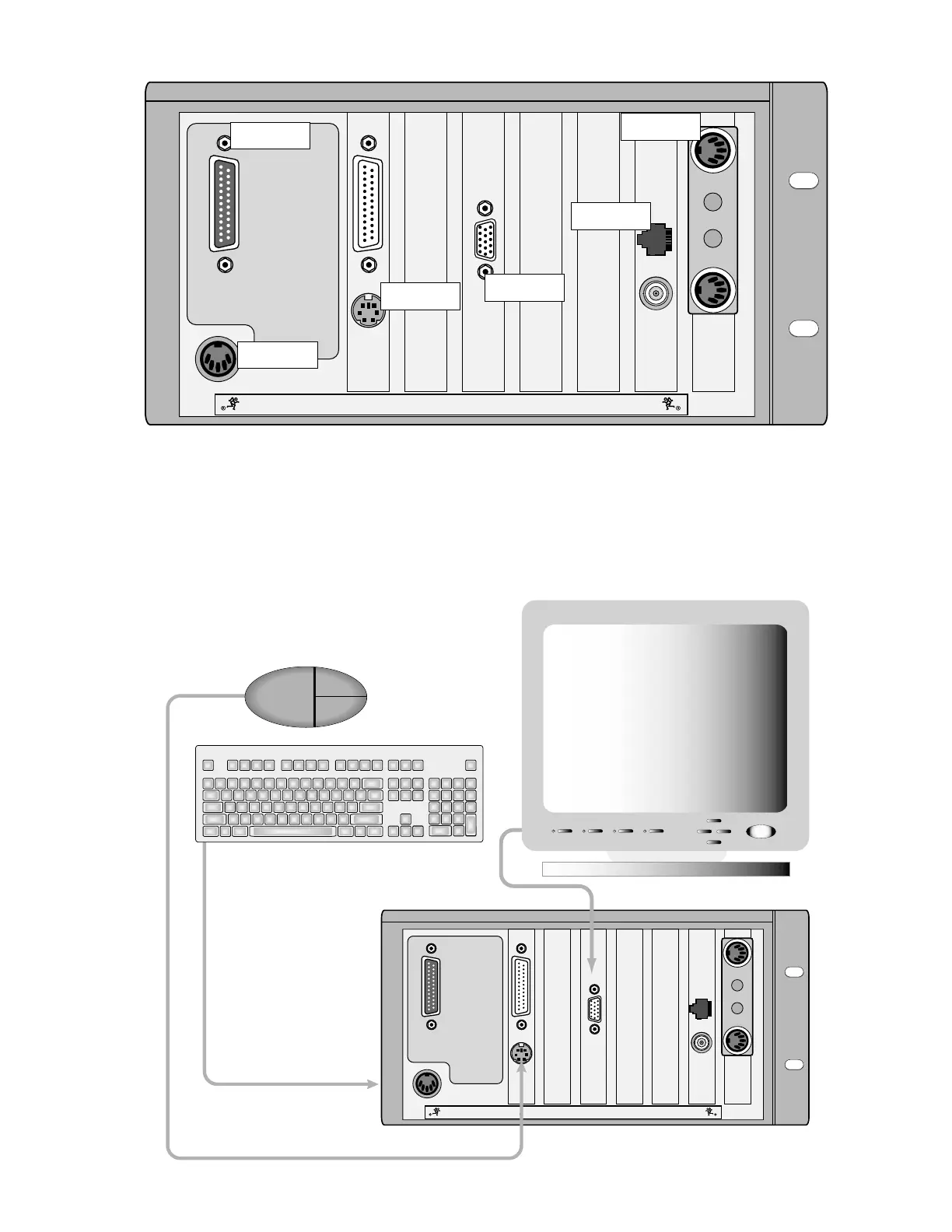

Next, connect the keyboard, mouse,
and video monitor.
These connections are optional, but we strongly
recommend using them to get the most from your
new Digital 8•Bus console.
PARALLEL
MOUSE
CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC • WOODINVILLE • WA • USA • MADE IN USA • FABRIQUE AU USA • COPYRIGHT ©1997 •
THE FOLLOWING ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MACKIE DESIGN INC.: "MACKIE", "DIGITAL SYSTEMS", D8B AND THE "RUNNING MAN" FIGURE •
CONSOLE DATA
KEYBOARD
PARALLEL
MOUSE
CONCEIVED, DESIGNED, AND MANUFACTURED BY MACKIE DESIGNS INC • WOODINVILLE • WA • USA • MADE IN USA • FABRIQUE AU USA • COPYRIGHT ©1997 •
THE FOLLOWING ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MACKIE DESIGN INC.: "MACKIE", "DIGITAL SYSTEMS", D8B AND THE "RUNNING MAN" FIGURE •
CONSOLE DATA
KEYBOARD
Mouse
Video
Keyboard
CPU
MIDI
Ethernet

Mackie D8B Specifications

General

Type	Digital Mixer
Channels	56
Sample Rate	48kHz
Bit Depth	24-bit
EQ	4-band parametric per channel
Frequency Response	20Hz - 20kHz
Operating System	Proprietary
MIDI I/O	Yes
Power Supply	Internal
Effects	Built-in effects processor
Digital I/O	ADAT, TDIF
Display	LCD
