Mixer Hardware: Inputs
You already hooked up a mic
to the channel 8 input and got
signal out of the speakers and
headphones. This means that there
are an additional 15 inputs at your
disposal!
1
All channels may accept a mic or
line-level signal on an XLR connector,
while channels 13-16
2
may also accept
a 1/4" line-level signal.
The steps for setting the
levels on the remaining channels
is exactly the same as it was for
channel 8 (as described in the
previous two pages, 6-7).
1

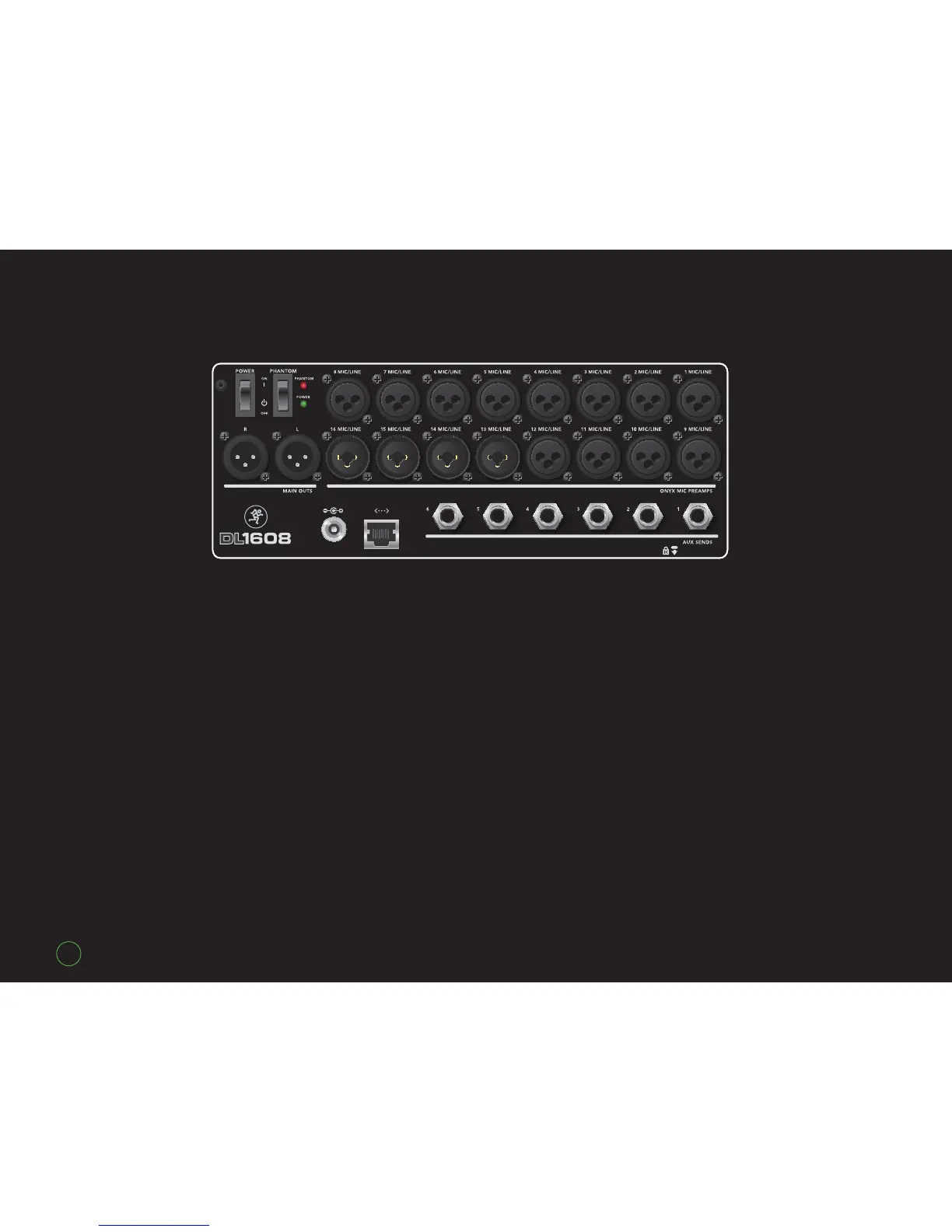

Seven additional inputs on the DL806.
2
Channels 5-8 on the DL806.
Mixer Hardware : Connections
Mixer Hardware: Aux Sends
Also on the rear panel of the
mixer are six Aux Sends
3
. Here you
may run up to six separate monitor
mixes by connecting these balanced
1/4" jacks to the line-level inputs of
powered speakers or to line-level
inputs of an amplifier (with speakers
already attached).
Headphone amplifiers and/or
external effects devices may also be
connected to the Aux Sends.
We will discuss setting aux levels
later in the Quick Start Guide.
3
Four Aux Sends on the DL806.
Mixer Hardware: Network
The real power of the mixer
becomes clear when it is controlled
wirelessly. All that’s necessary is to
connect it to a Wi-Fi access point.
It is possible to utilize an existing
network, but with a dedicated Wi-Fi
router, you have complete control
of the router, resulting in the best
possible performance.
Nearly any Wi-Fi router found at a
reputable store will work. There are
four things to look for:
(1) Ethernet connection. Make
sure the Wi-Fi router connects via
Ethernet, NOT USB!
(2) DHCP. The router needs to be
able to assign an IP address to the
mixer.
