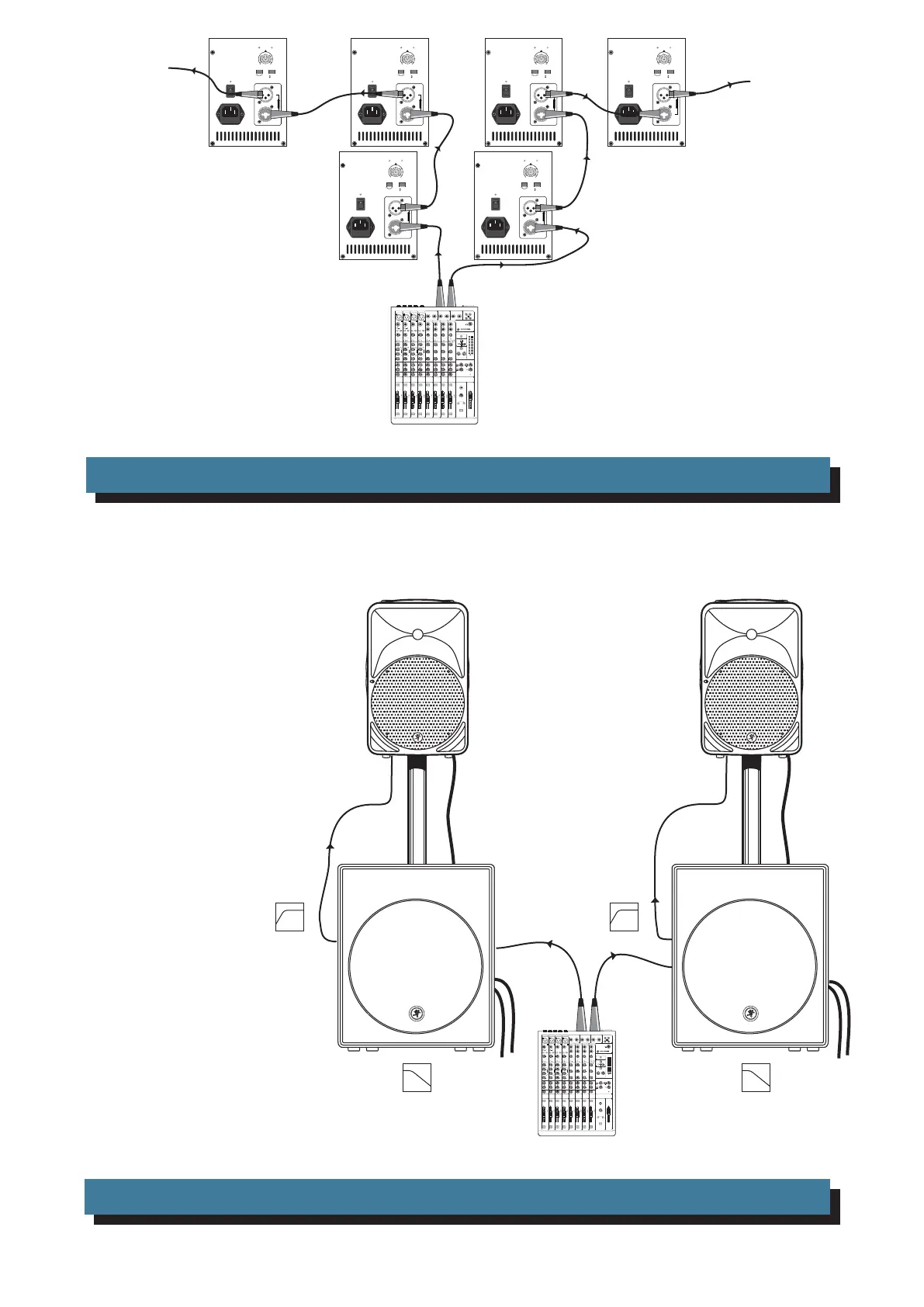

SRM350v2: DAISY-CHAINING USING THE THRU JACK
SRM350v2: 3-WAY SYSTEM WITH A POWERED SUBWOOFER
The SRM350v2 can
be used with a Mackie
SRM1801 subwoofer to
create an incredibly
powerful system.
The active crossover
inside the subwoofer splits
the full range input
signal into two ranges. The
subwoofer plays the low
frequency range through
its built-in amplifier and
woofer, and sends the
high-pass range to the
SRM350v2.
The SRM350v2 can be
pole mounted on top of
the SRM1801 as shown
using the optional SPM200
Speaker Pole Mount,
saving the cost of a more
expensive tripod stand.
Power
Cord
Power
Cord
Pole
Mount
Pole
Mount
Line-level
High Pass
output
Line-level
High Pass
output
Power
Cords
To SRM1801
input
To SRM1801
input
Power
Cords
SRM1801
plays the low
frequencies
Mixing Console
(Mackie Onyx 1220i shown)
SRM1801
plays the low
frequencies
Thru Thru
Next
From Mixer
Right Output
Mixing Console
(Mackie Onyx 1220i shown)
From Mixer
Left Output
Next
