Components / Key Parts
Please see below to familiarise yourself with the components of the Mackworth M400 Mobile Hoist. The image below show the
contents of the Hoist. If you have not received all the components contact Mackworth dealer immediately – contact details are
provided on the last page of this manual.
Item
Description
Item
Description
1
Boom
6
Handle
2
Mast
7
Front Castors
3
Control Box & Battery
8
Manual Leg Lever Plate
4
Manual Emergency lower
9
Base
5
Carry Bar
10
Rear Castors
11
Serial Number/ Product Information
12
Lift Actuator

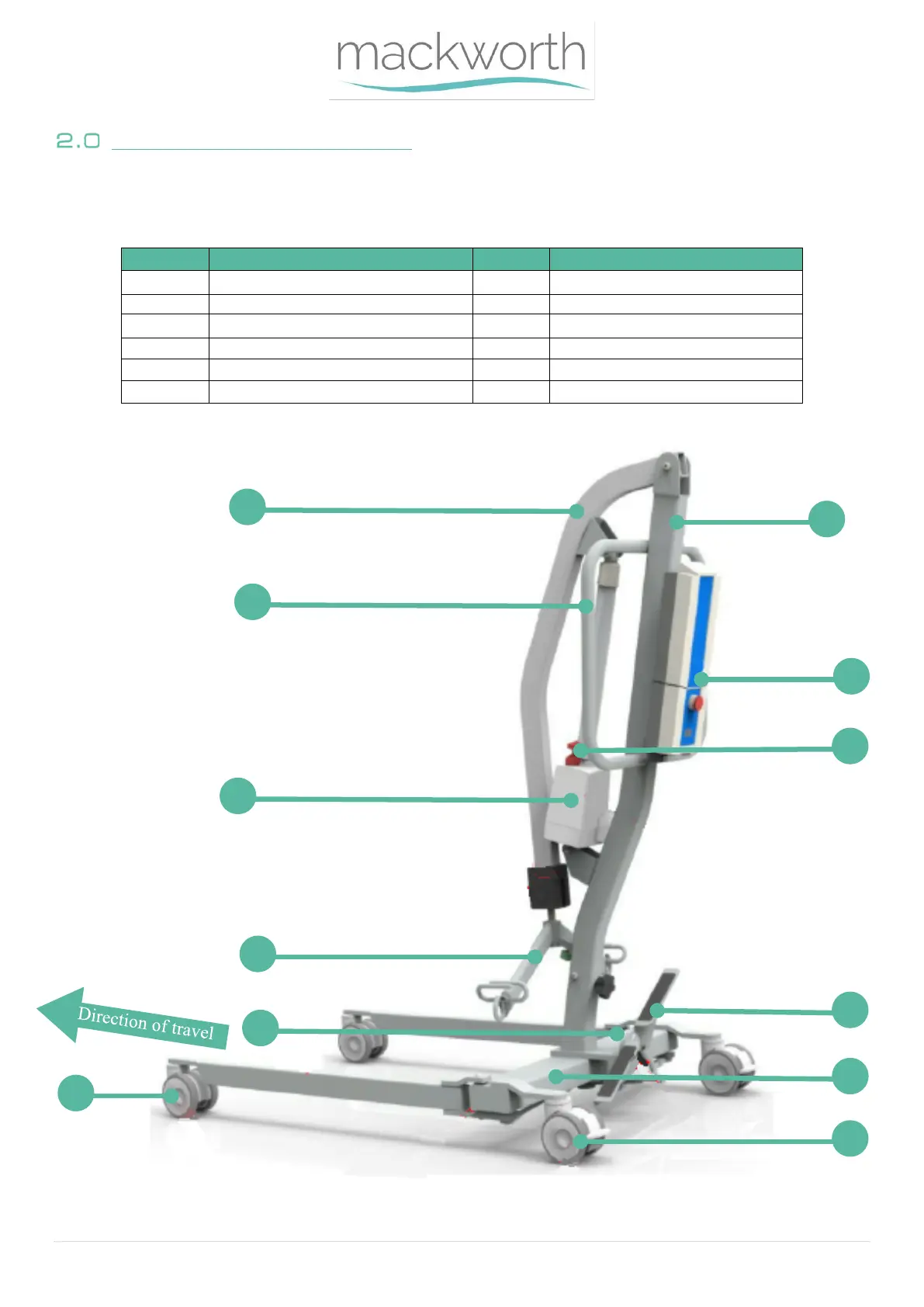

Figure 2
Table 2
1
2
3
4
5
6
7
8
9
10
11
12
