Page 24 of 32

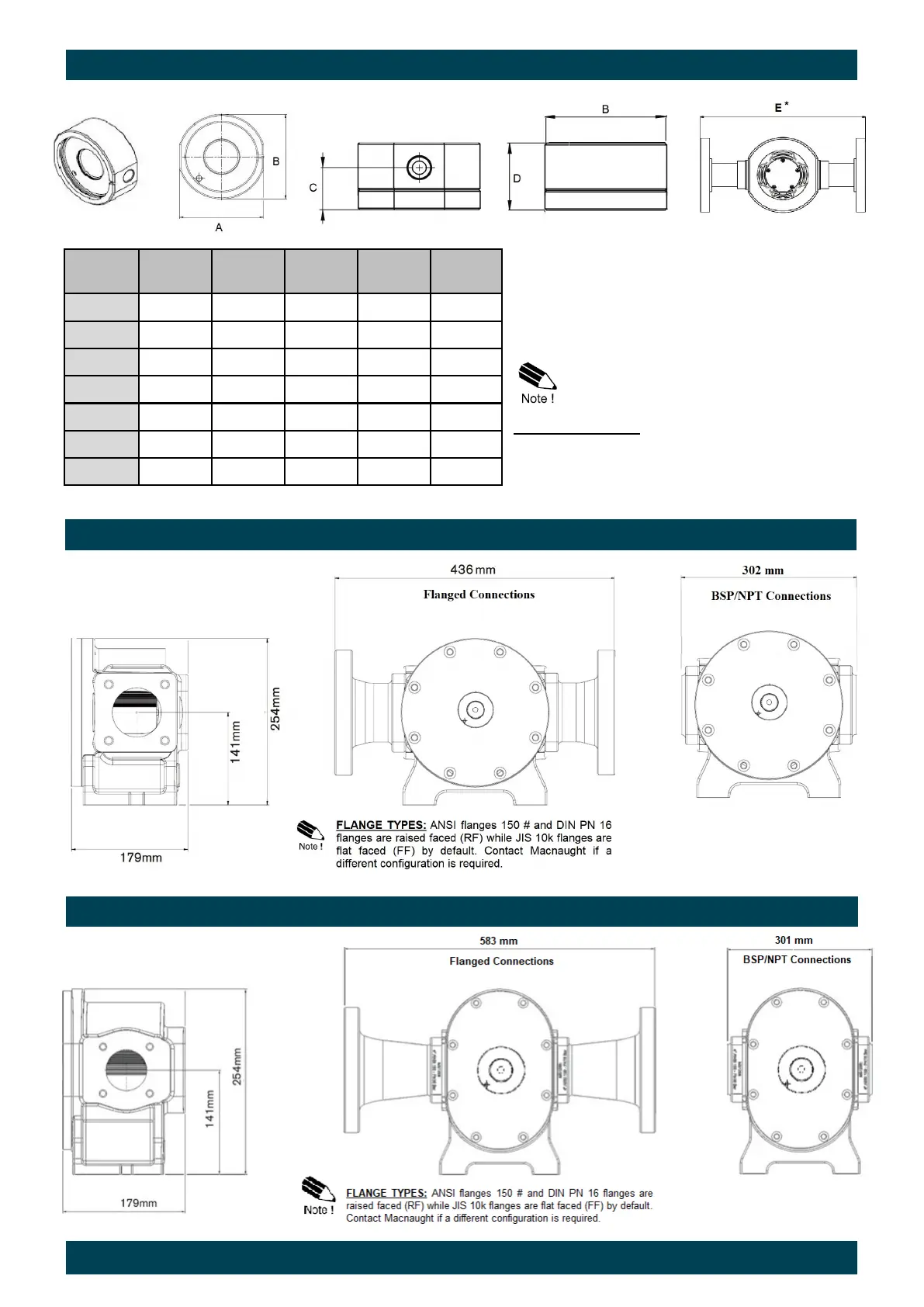

DIMENSIONS Flow Meters MX06 - MX50
Flow
meter
A
(mm)
B
Ø (mm)
C
(mm)
D
(mm)
E
(mm)
MX06 71 74 25 42 N/A
MX09 71 74 25 42 N/A
MX12 81 87 28 49 N/A
MX19 100 112 37 62 N/A
MX25 100 112 45 75 240*
MX40 120 137 61 120 240*
MX50 140 153 72 123 264*
FLANGE TYPES: ANSI flanges 150 # and DIN PN
16 flanges are raised faced (RF) while JIS 10k
flanges are flat faced (FF) by default. Contact
Macnaught if a different configuration is required.
DIMENSIONS Flow Meters MX75
DIMENSIONS Flow Meters MX100
