Madas EVP/NC - Overall Dimensions; Installation Guidelines

INSTALLATION
The solenoid valve is in conformity with
the Directive 94/9/CE (said Directive ATEX
100 a) as device of group II, category 3G
and as device of group II, category 3D;
for this reason it is suitable to be installed
in the zones 2 and 22 as classifi e d i n t h e
attachment I to the Directive 99/92/EC. The
solenoid valve is not suitable to be used
in zones 1 and 21 and, all the more so, in
zones 0 and 20 as classifi e d i n t h e a l r e a d y
said Directive 99/92/EC.
To determine the qualifi c a t i o n a n d t h e
extension of the dangerous zones, see the
norm EN 60079-10.
The device, if installed and serviced
respecting all the conditions and the
technical instructions of this document, is
not source of specifi c d a n g e r s : i n p a r t i c u l a r,
during the normal working, is not forecast,
by the solenoid valve, the emission in the
atmosphere of infl a m m a b l e s u b s t a n c e i n
way to cause an explosive atmosphere.
WARNING: all installation/wiring/
maintenance work must be carried out
by skilled staff.
• The gas supply must be shut off before
installation.
• Check that the line pressure DOES NOT
EXCEED the maximum pressure stated
on the product label.
It is always important to read
carefully the instruction sheet of
each product.

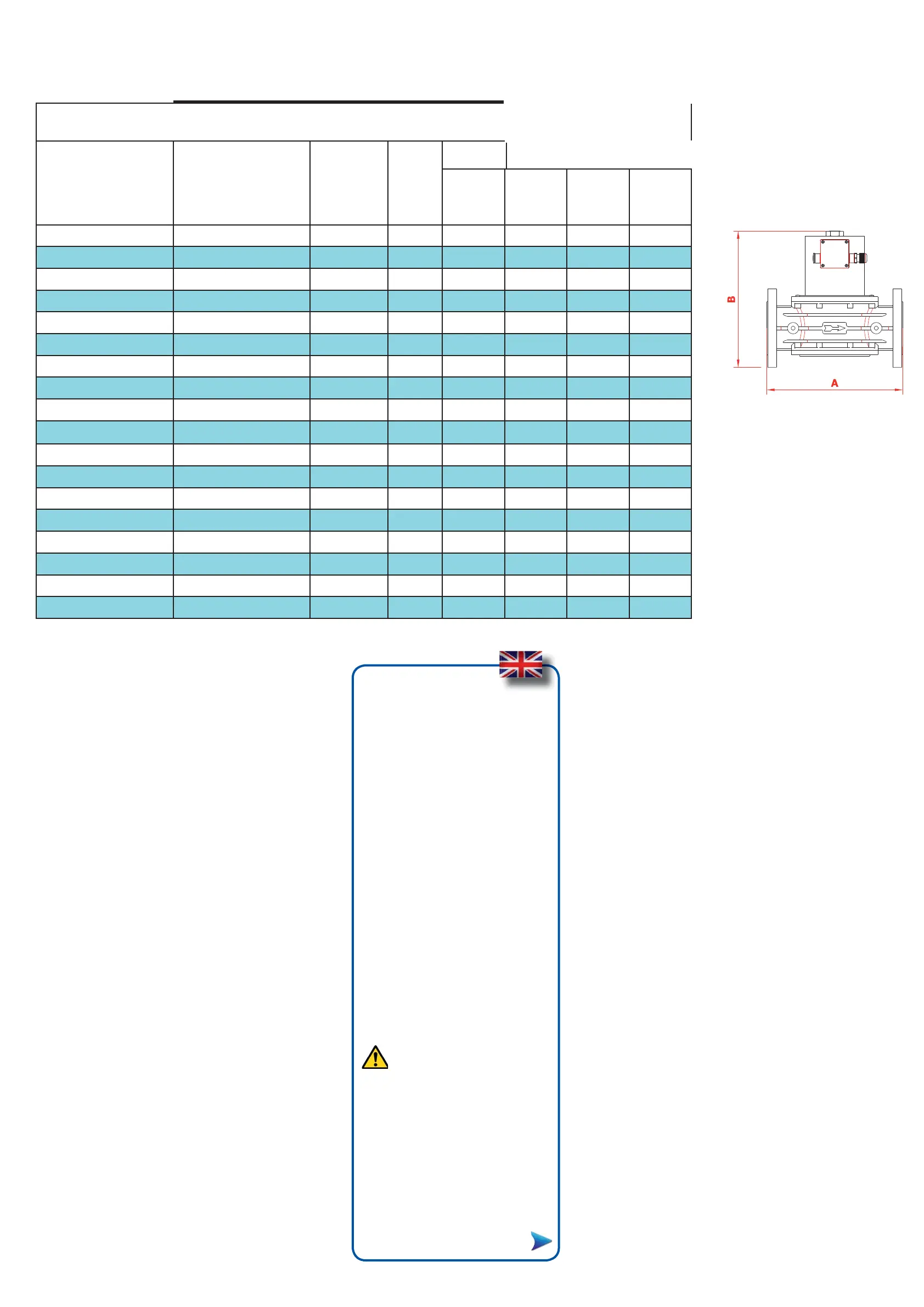

Overall dimensions in mm
Flanged
connections F
P. max
(mbar)
A
B
EVP...
EVPC...
- 70 137 05 185
- 200 / 360 70 137 150 205 185
- 360 mbar 90 157 172 225 205
- EVPC DN 25 200 / 360 142 170 195 250 230
- EVP DN 25 360 mbar 162 190 205 262 242
- 200 mbar 160 185 200 262 240
- 360 mbar 160 210 210 275 253
- 200 mbar 160 210 225 290 267
- 360 mbar 160 210 225 290 267
EVPC DN 32 - DN 40 - DN 50 200 / 360 230 237 252 295 269
EVP DN 50 - 360 mbar 160 235 235 300 278
EVP DN 32 - DN 40 - DN 50 360 mbar 230 261 261 326 304
- EVP DN 65 360 mbar 290 321 321 480 432
- EVP DN 80 360 mbar 310 328 328 486 439
- EVP DN 100 360 mbar 350 389 389 547 500
- EVP DN 125 360 mbar 480 570 570 728 681
- EVP DN 150 360 mbar 480 570 570 728 681
EVP DN 200 360 mbar 600 680 680 - -
