Madas EVP/NC - Example of Installation

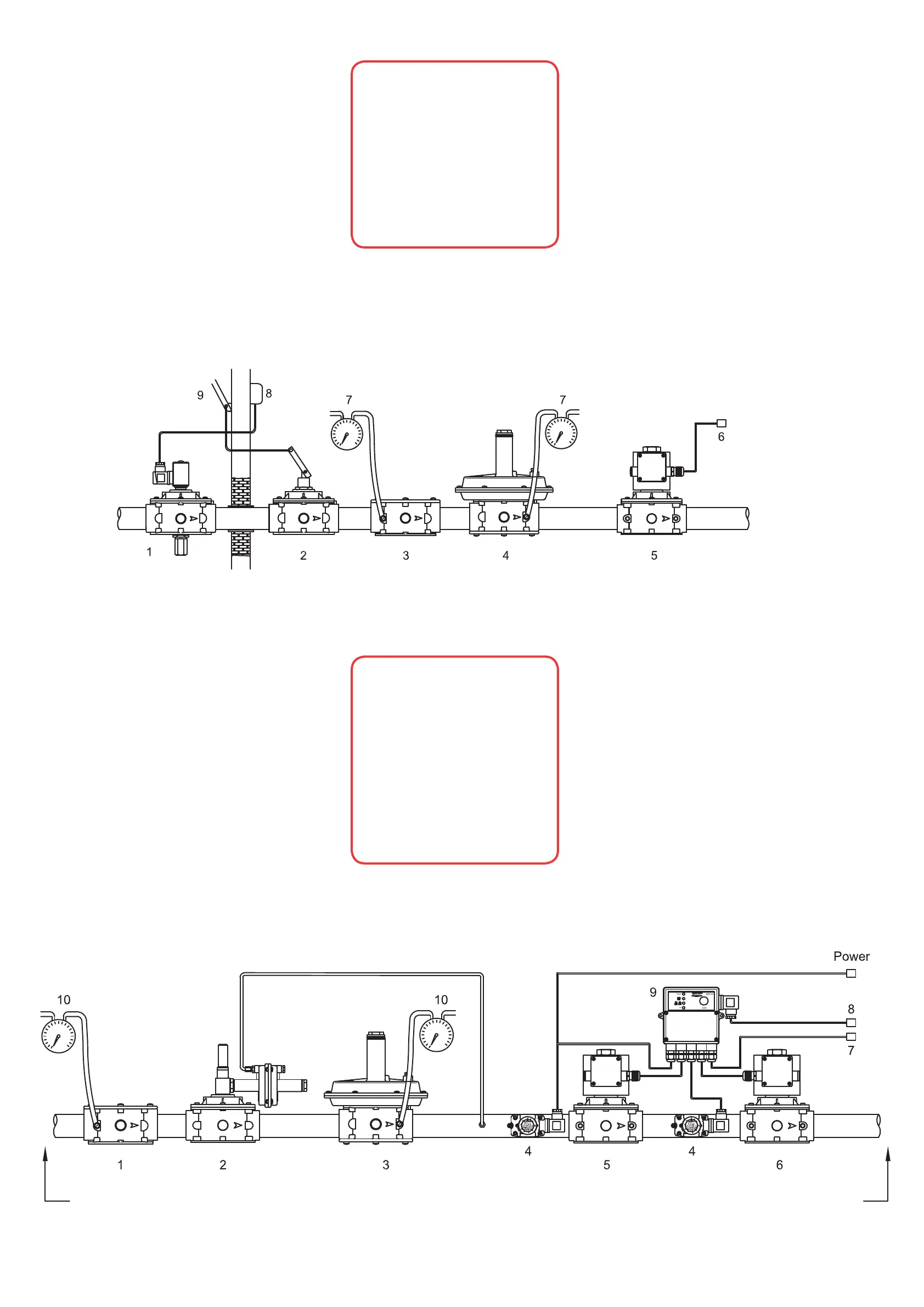

EXAMPLE OF INSTALLATION 1
1. M16/RM N.C. manual reset solenoid valve
2. SM series jerk handle ON/OFF valve
3. Gas fi l t e r t y p e F M
4. Gas pressure regulator type RG/2MC
5. Automatic solenoid valve type
EVP/NC or EVPC/NC
6. Solenoid valve control device
7. Manometer
8. Gas detector
9. Lever for remote SM ON/OFF valve control
rete - pipe
réseau - red
utenza - user
utilisateur - punto de consumo
rete - pipe
réseau - red
EXAMPLE OF INSTALLATION 2
1. Gas fi l t e r t y p e F M
2. Over pressure slam shut off valve type
MVB1/MAX
3. Gas pressure regulator type RG/2MC
4. Pressure switch of minimum pressure type MP
5. Automatic solenoid valve type
EVP or EVPC
6. Automatic solenoid valve type
EVP or EVPC
7. External reset
8. Burner control
9. Valve proving system type MTC10
10. Manometer
testa di combustione
combustion head
tête de combustion
cabeza de combustión
