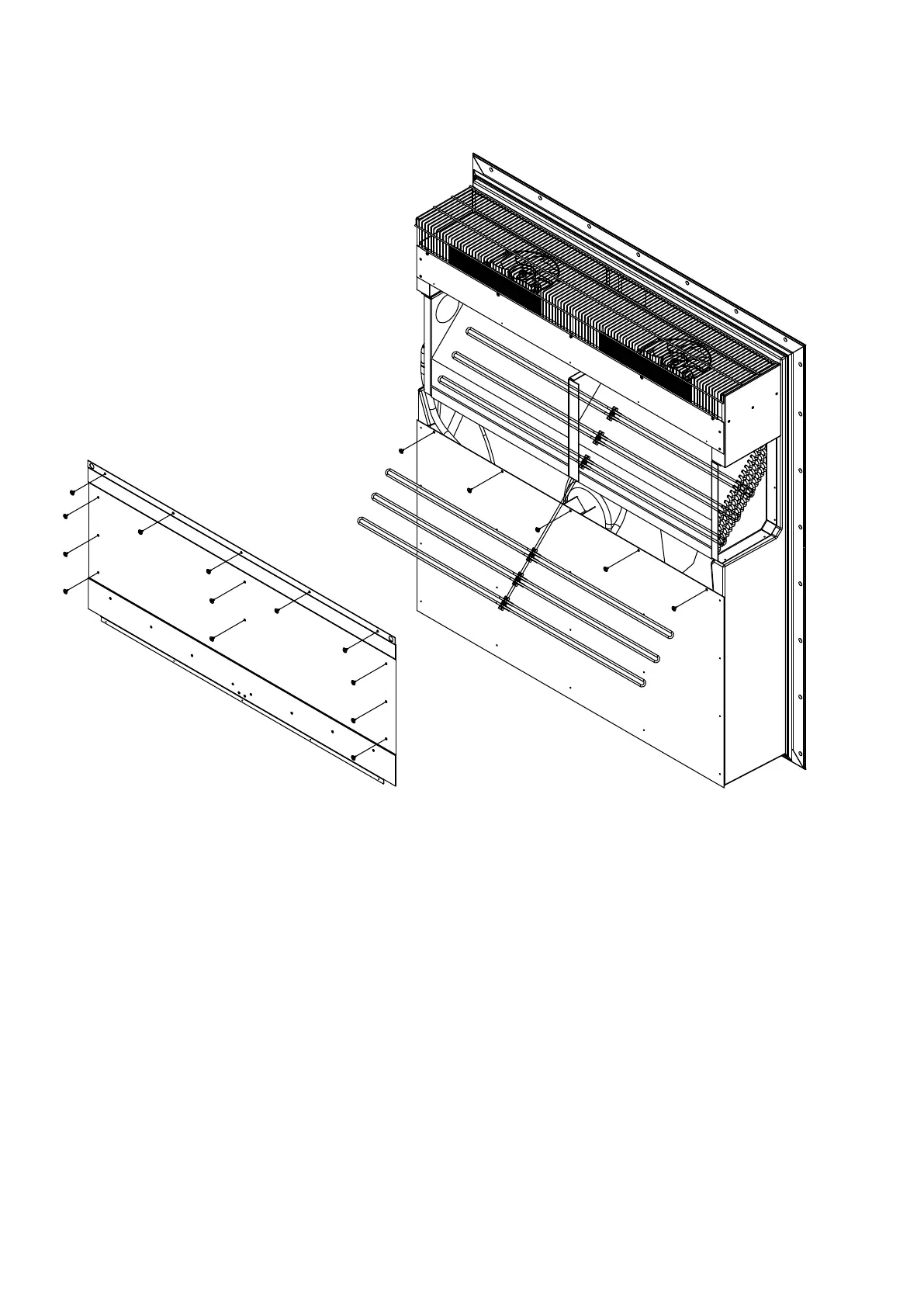

21.4 Replacement of heating elements

1. Dismount the upper back panel of the unit and dismount the defective heating element.

2. Mount the new heater onto the pin bolt and click into the bracket if installed.

3. Mount and tighten the M6 hex nut and washer.

4. Secure the heater cables with cable ties.

5. Mount the upper back panel on the unit and ensure all screws are fully secured.
