Mag-lite C CELL - Flashlight Schematic (New Style); Parts List

C & D Flashlight
ML Rev.1 8/03 421-000-391
6

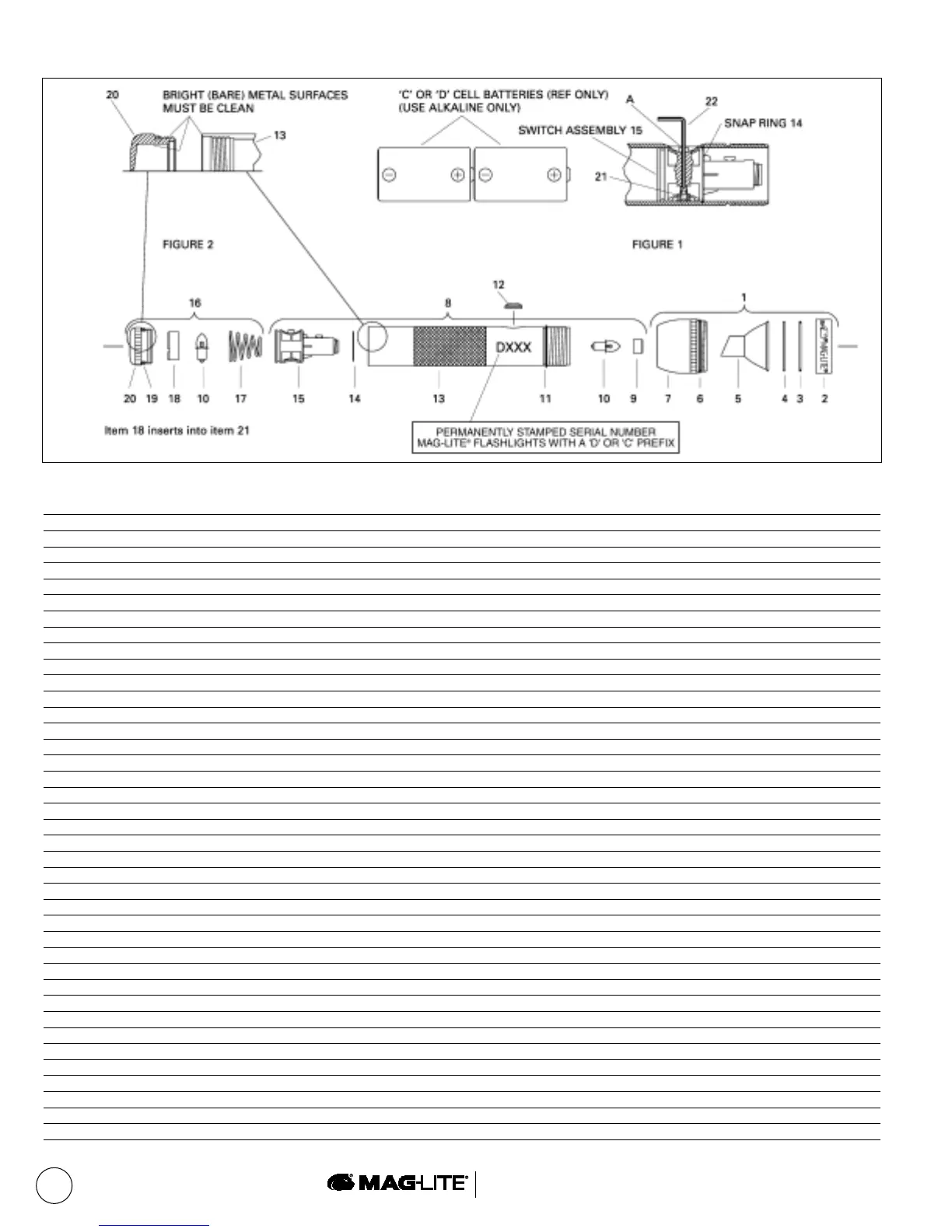

SCHEMATIC - FLASHLIGHT
PARTS LIST FOR BLACK ‘D’ AND BLACK ‘C’ MAG-LITE® FLASHLIGHTS (PREFIX 'D' or 'C' SERIAL NUMBER)
ITEM NO. QTY. PART NO. DESCRIPTION
11 HEAD SUB-ASSEMBLY, ‘D’ or ‘C’
2 1 201-000-157 FACE CAP, Black
3 1 108-000-026 O RING, FACE CAP
4 1 108-000-031 CLEAR LENS
5 1 108-000-036 PARABOLIC REFLECTOR
6 1 108-000-025 O-RING, HEAD C & D
7 1 201-000-161 HEAD, ‘D’ SIZE, Black
7 1 201-000-475 HEAD, ‘C’ SIZE, Black
9 1 200-000-057 BULB RETAINER
10 1 LWSA201 LAMP, 2-CELL KRYPTON - ALKALINE
10 1 LWSA301 LAMP, 3-CELL KRYPTON - ALKALINE
10 1 LWSA401 LAMP, 4-CELL KRYPTON - ALKALINE
10 1 LWSA501 LAMP, 5-CELL KRYPTON - ALKALINE
10 1 LWSA601 LAMP, 6-CELL KRYPTON - ALKALINE
11 1 108-000-574 O-RING, ‘C’ BARREL
11 1 108-000-206 O-RING, 'D' BARREL
12 1 108-000-034 SWITCH SEAL, ‘D’
12 1 108-000-575 SWITCH SEAL, ‘C’
13 1 201-000-178 BARREL 2D
13 1 201-000-179 BARREL 3D
13 1 201-000-180 BARREL 4D
13 1 201-000-181 BARREL 5D
13 1 201-000-182 BARREL 6D
13 1 201-000-476 BARREL 2C
13 1 201-000-477 BARREL 3C
13 1 201-000-478 BARREL 4C
13 1 201-000-479 BARREL 5C
13 1 201-000-480 BARREL 6C
14 1 400-000-067 SNAP RING, ‘D’
14 1 400-000-122 SNAP RING, ‘C’
15 1 108-000-208 SWITCH SUB-ASSEMBLY 'D' SIZE
15 1 108-000-498 SWITCH SUB-ASSEMBLY 'C' SIZE
17 1 108-000-032 SPRING, TAILCAP ‘D’ SIZE
17 1 108-000-033 SPRING, TAILCAP ‘C’ SIZE
18 1 108-000-037 BULB PROTECTOR, ‘C’ & ‘D’
19 1 108-000-207 O-RING, TAILCAP ‘D’ SIZE
19 1 108-000-030 O-RING, TAILCAP ‘C’ SIZE
20 1 201-000-191 TAILCAP, ‘D’, Black
20 1 200-000-100 TAILCAP, ‘C’, Black
