Instructions
UTILITY CARTS and ACCESSORIES
LOWER ACCESSORY TRAY INSTALLATION
- Refer to cart manual for further attachment information

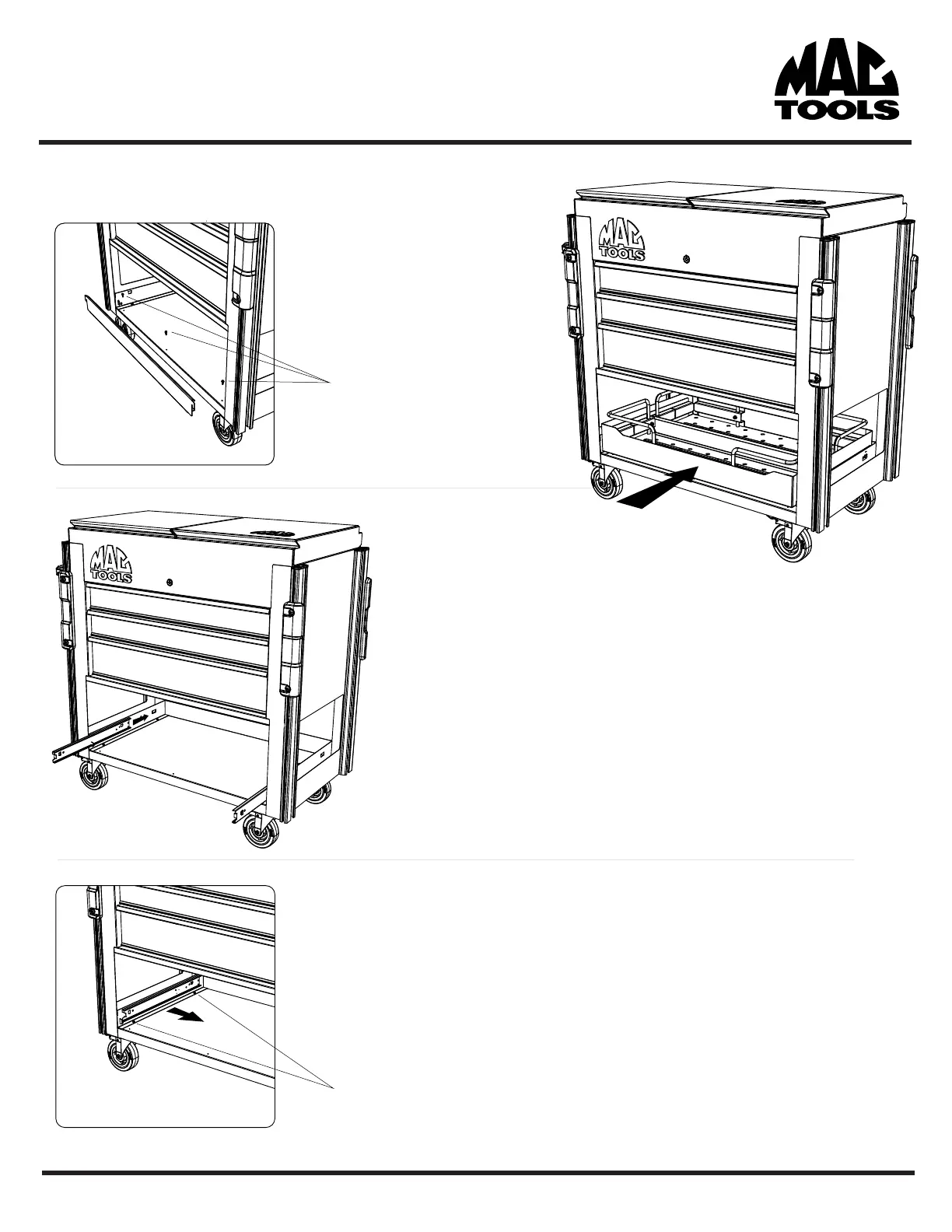

1.
Remove the 3 sheet metal screws holding
down the lower fascia piece. Lift the piece
up to clear the hooks on each end.
2.
Install the slide on the left and right side
walls of the lower static shelf. Follow the
slide installation instructions on page 2 of
the carts instruction manual.
3.
Install the lower accessory tray and test t
to make sure there is correct spacing
between the left and right slide support
brackets. If the lower accessory tray is too
loose or too tight you can adjust the slide
support brackets using the two mount
screws.
3 fascia screws
2 mount screws for the
lower
support bracket
MB188UC / MB188UCFD / MB199UC / MB199UCFD UTILITY CARTS and ACCESSORIES - MANUAL - REV 4.0 - 2014
PN# 080106
