AA/AAA SWITCH REPLACEMENT
Tools required to replace switches in
Solitaire
®
, AAA/AA Mini Maglite
®
flashlights
Each tool has a long and short pin end.
The long pins remove the switch. The
short pins are to install the switch (23).

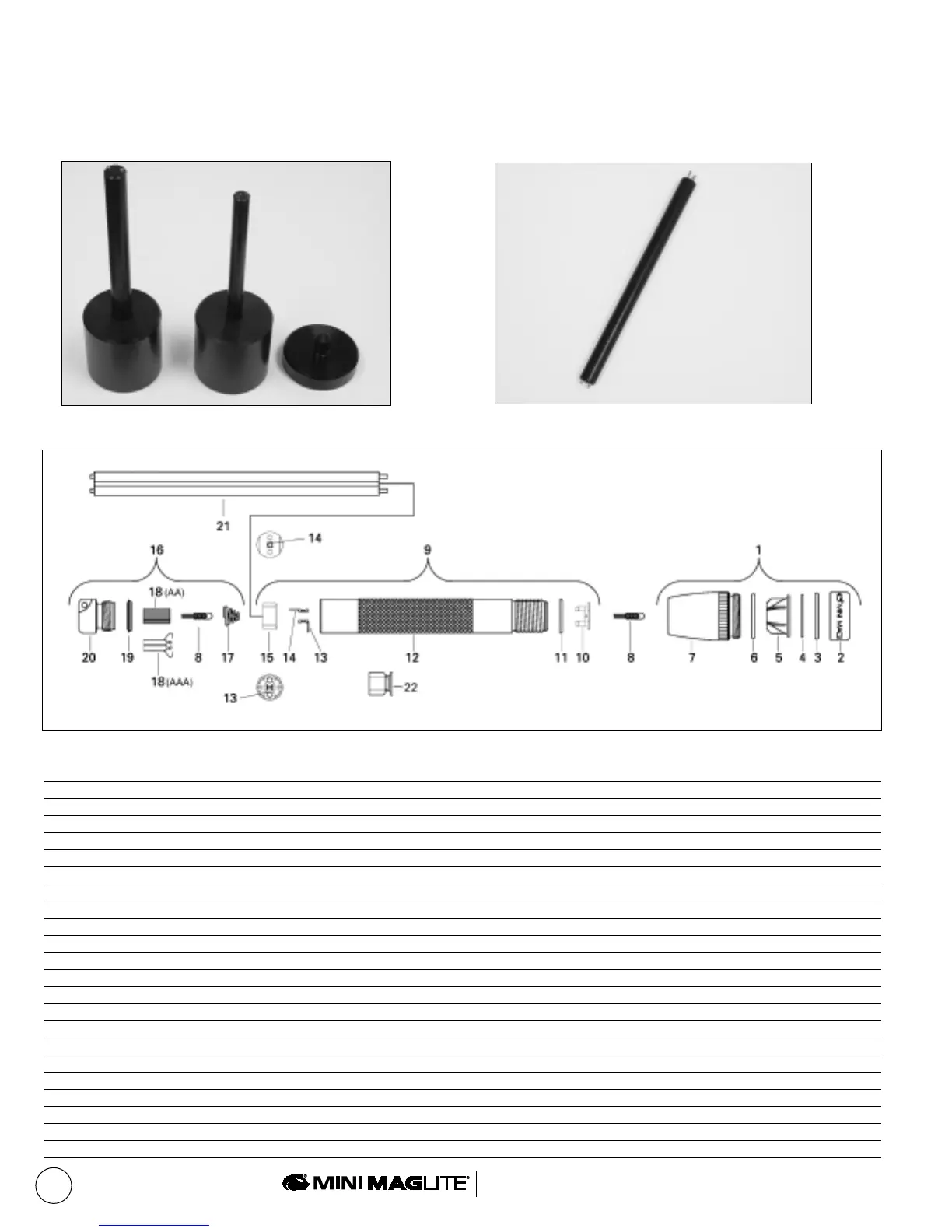

SCHEMATIC - FLASHLIGHT
Parts List for Standard Black Mini Maglite
®
AAA Flashlight
ITEM NO QTY. PART NUMBER DESCRIPTION
1 1 N/A Head Sub-Assembly
2 1 216-000-020 Face cap, Black
3 1 108-000-068 'O' Ring, Face cap
4 1 108-000-063 Clear Lens
5 1 108-000-064 Reflector
6 1 108-000-065 'O' Ring, Head
7 1 216-000-008 Head, Black
8 1 LM2A001 Bulb
9 1 108-000-261 Barrel & Switch Sub-Assembly
10 1 N/A Insulator, Upper
11 1 108-000-066 'O' Ring, Barrel
12 1 216-000-032 Barrel, Black
13 1 N/A Contact/Lamp, Side
14 1 N/A Contact/Lamp, Center
15 1 N/A Insulator, Lower
16 1 108-000-197 Tail cap Sub-Assembly
17 1 108-000-069 Spring, Tail cap
18 1 108-000-618 Ground Contact
19 1 108-000-204 Lip Seal
20 1 220-000-156 Tail cap, Black
21 1 109-000-468 Long/Short pin tool AAA
22 1 108-000-071 Switch Assembly AAA
Items 10, 13, 14 and 15 are included in item 22
