AA/AAA Flashlight
MM Rev.1 8/03 421-000-439
8

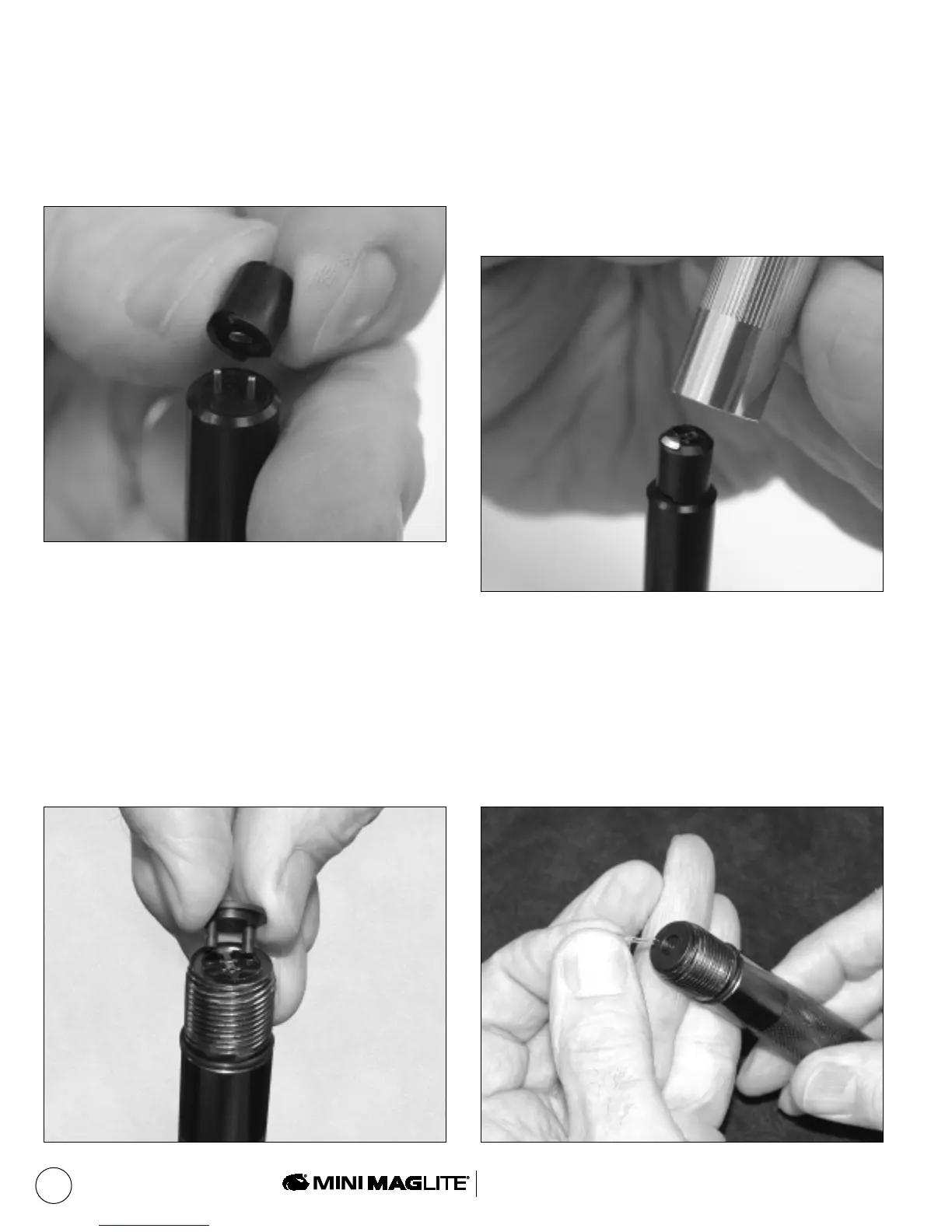

STEP 8
REPLACING SWITCH
Place the LOWER INSULATOR (15) on the
SHORT PIN TOOL (21) making sure the pins
of the TOOL (21) are in the holes of the
LOWER INSULATOR (15).
STEP 10
While firmly holding the TOOL (23) and
BARREL (12), line up the pins of the UPPER
INSULATOR (11) with the holes of the
LOWER INSULATOR (15). Push the UPPER
INSULATOR (11) down into the LOWER
INSULATOR (15) until it presses into place.
STEP 11
Reinstall the LAMP (8) in the receptacles of
the UPPER INSULATOR (11). Adjust the
LAMP (8) so it is as vertical and straight as
possible. Using a clean soft cloth, gently
wipe the moisture and oil from the glass on
the LAMP (8).
STEP 9
Insert the TOOL (23) with the LOWER
INSULATOR (15) into the bottom of the
BARREL (12). Push the TOOL (23) into
the BARREL (12) until it stops at the top
of the BARREL (12).
*Note: make sure the SIDE CONTACT (14) and
CENTER CONTACT (13) are in the switch.
To Next Page
