Magellan 176910 - Rudder Installation Guide

Installing the Rudder

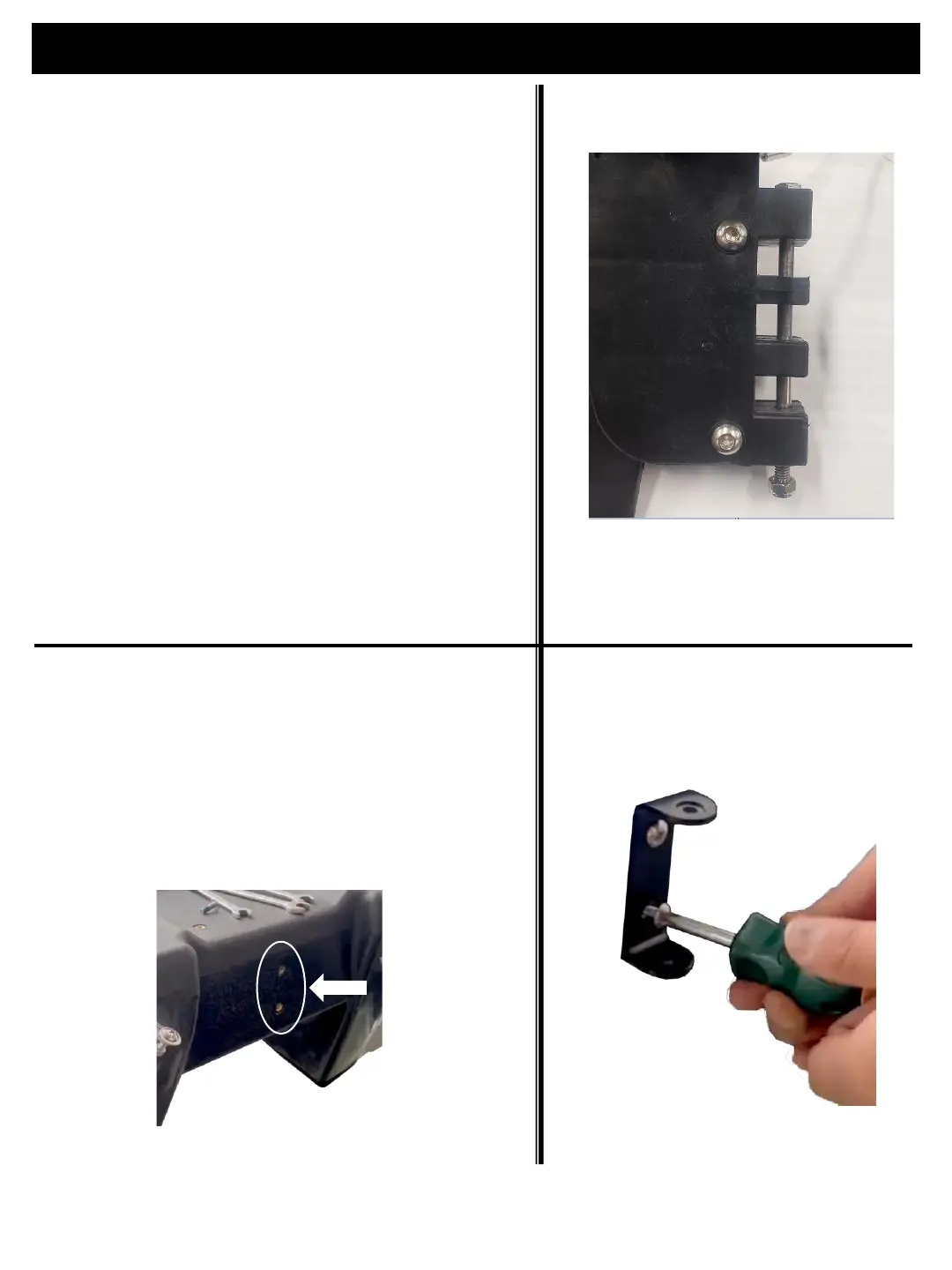

Step 1:
Remove the rudder from the packaging. Remove
the nut and M6x116mm hex head cap screw, and
set aside for later.
Step 2:
Locate the two threaded inserts on the stern of the
kayak (Fig.1) and mount the rudder bracket using
two M6x16mm screws.
Page 15 of 29
Figure 1
