Magellan Back-up Camera - Receiver Attachment and GPS Connection

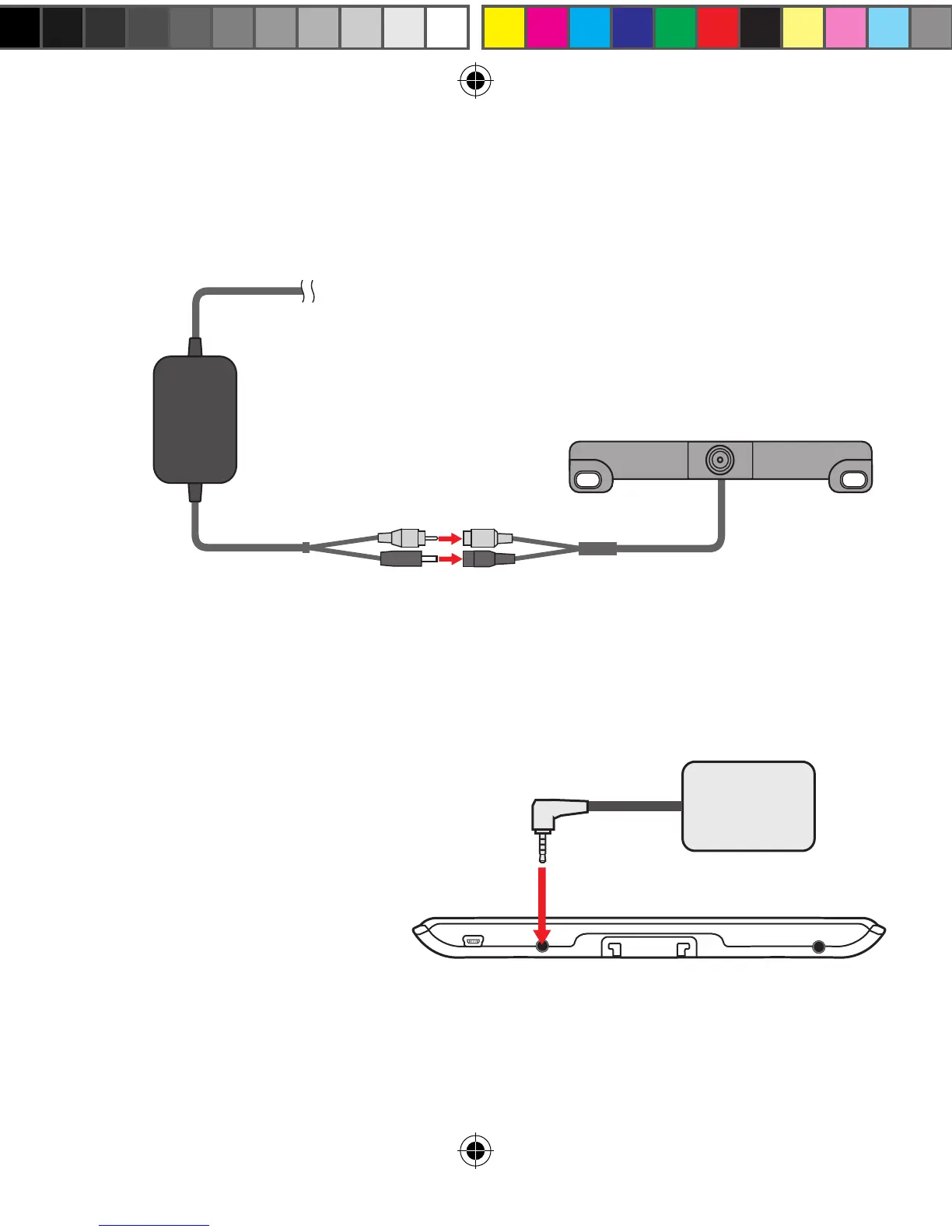

4. Connect the power cable and video cable of the
Transmitter to the corresponding cables of the Camera.
Install the Receiver
5. Slide the receiver onto the back of the GPS device
cradle. The Back up Camera receiver has a “T” slot that
will slide onto the
back of the cradle
supplied with
the GPS device.
Connect the 3.5
mm plug to the
AV-IN jack of your
Roadmate GPS.
