Magellan 5
Remote Control Button Programming
The button of the MG-REM1 and MG-REM2 remote controls has been permanently programmed to disarm the system. However, when
the system is disarmed and the Magellan console’s radio is on (MG-6160 only), the button can be used for volume control. The
button’s functionality cannot be altered. The button of the MG-REM2 remote control has been permanently programmed to request
feedback from the system. The button’s functionality cannot be altered.
When section [040] is accessed, the console will display the contents of section [041] and copy the saved value of that section to all remote
options: [041] to [56].
Section RC# Data (Default: 4DE0) Section RC# Data (Default: 4DE0)
[040]
Default
1-16
______ ______ ______ ______
[041] 1
______ ______ ______ ______
[049] 9
______ ______ ______ ______
[042] 2
______ ______ ______ ______
[050] 10
______ ______ ______ ______
[043] 3
______ ______ ______ ______
[051] 11
______ ______ ______ ______
[044] 4
______ ______ ______ ______
[052] 12
______ ______ ______ ______
[045] 5
______ ______ ______ ______
[053] 13
______ ______ ______ ______
[046] 6
______ ______ ______ ______
[054] 14
______ ______ ______ ______
[047] 7
______ ______ ______ ______
[055] 15
______ ______ ______ ______
[048] 8
______ ______ ______ ______
[056] 16
______ ______ ______ ______
+
+
+
+
Button Options Table
0 - Button disabled
1 - Regular arming
2 - Stay arming
3 - Instant arming
4 - Force arming
5 - N/A
6 - N/A
7 - N/A
8 - Panic 1†
9 - Panic 2†
A* - Panic 3†
B* - PGM Activation (Event Group #7, see Appendix 1: PGM Event Table)
C* - PGM Activation (Event Group #8, see Appendix 1: PGM Event Table)
D* - Turn FM radio ON/OFF (MG-6160 only)
E* - FM radio memory scan (MG-6160 only)
F* - Non-medical alarm
* = Hex values A to F are keys [17/1] to [22/6] from Magellan’s Center
Keypad. Refer to Figure 1 on page 2.
† = The panic feature (section [091] options [1] to [3]) must be enabled.

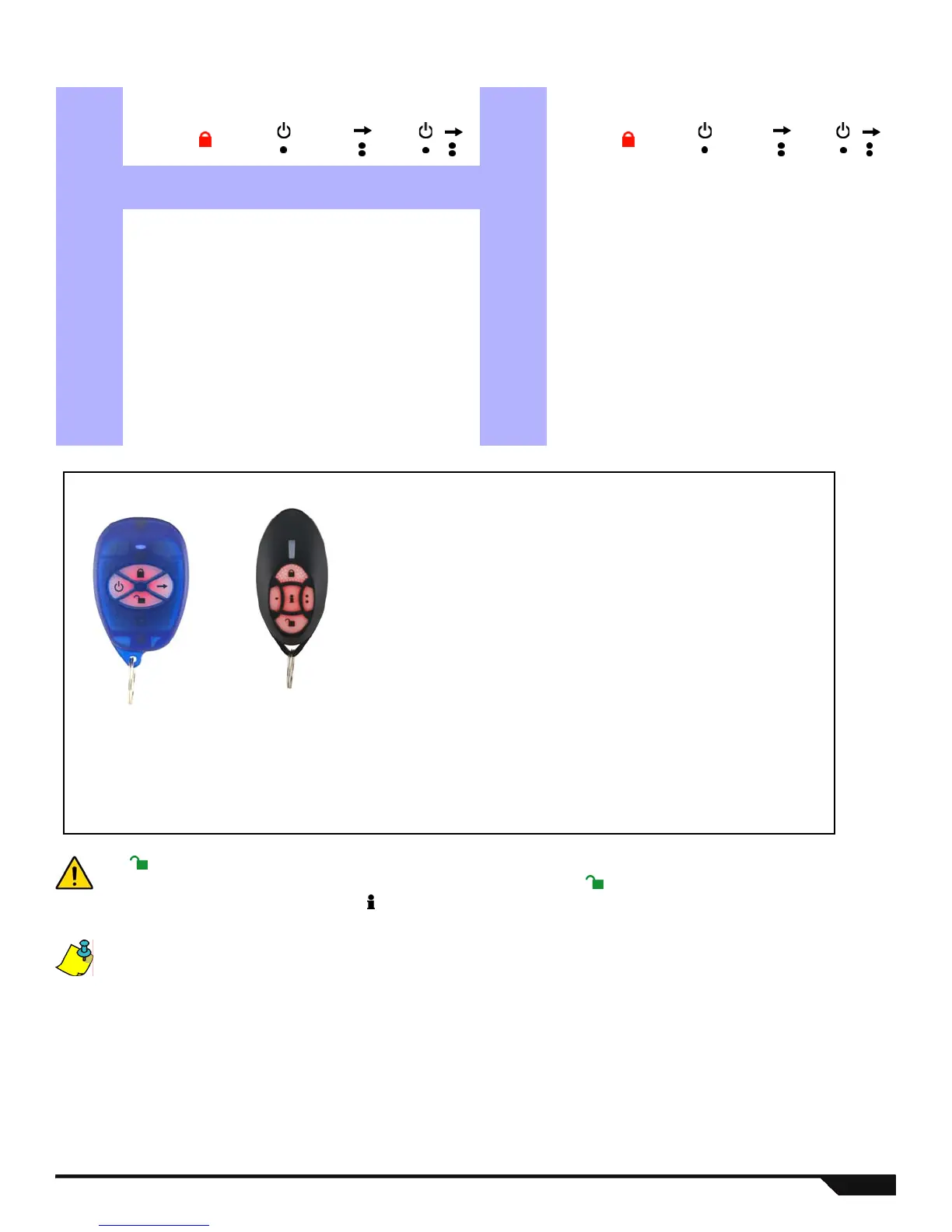

MG-REM1
MG-REM2
To Next Page
