Magic Chef MCBR980W User Manual

CHANGING THE REVERSIBLE DOOR
CAUTION: To avoid personal injury to yourself and/or property, we recommend
someone assist you during the door reversal process.

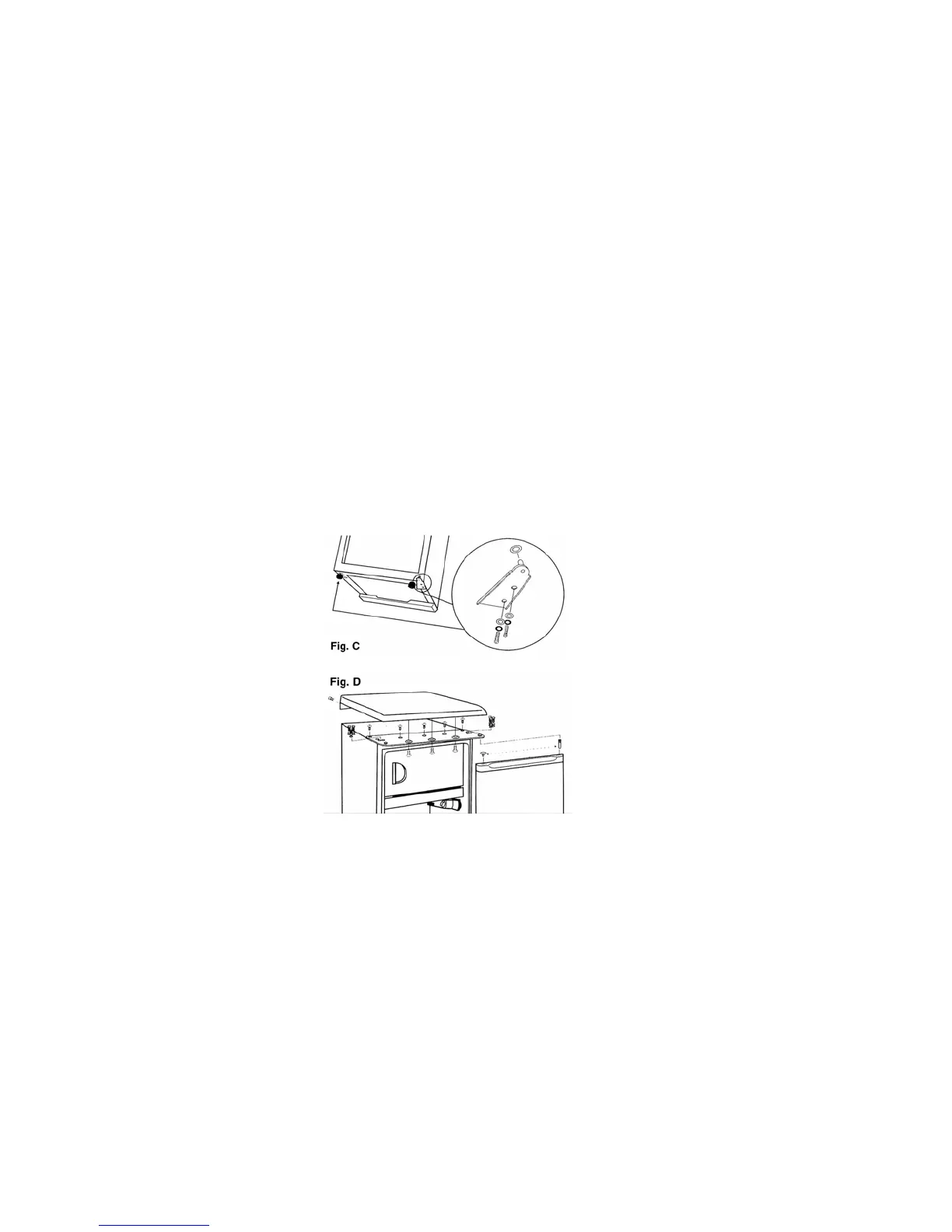

1. To access the lower hinge assembly, tilt back the refrigerator cabinet or lay the refrigerator on its back. (Fig. C)
2. Remote both leveling legs located at the front of the cabinet.
3. Remove the screws holding the lower hinge assembly to the cabinet.
4. Remove the main door assembly from the refrigerator cabinet. (Open door and pull down)
5. Remove (unscrew) the main door top hinge pin. (Fig. D)
6. Re-install the main door top hinge pin on the opposite side of the cabinet.
7. Remove the door plug and door bushing located on the top of the main door assembly.
8. Interchange positions. (i.e. door plug right side, door bushing left side.)
9. Re-install main door assembly on the cabinet.
10. Remove door bushing (bottom door) and install on the opposite side.
11. Re-install the lower hinge assembly on the opposite side.
12. Make sure the door assembly is properly aligned on the cabinet before tightening lower hinge screws.
13. Re-install both leveling legs.
The process is now complete.
7
