Usage note
Do not remove the back panel during installation.
1. In order for normal use, the connection must be reliable. Besides the power source
proper connection, the wire of the unit and outer wire must meet the following
requirement:
2
Wire size
14 AWG
The max length (Feet)
3.2 Feet
8 Feet
13 Feet
20 Feet
33 Feet
50 Feet
14 AWG wire is not recommended. 13 AWG wire or Larger is recommended.
This DC unit is not equipped with a power source. Please purchase a power source from an authorized dealer.
13 AWG
12 AWG
10 AWG
8 AWG
6 AWG
Remarks:
1.
Connect terminal with Positive pole of 12V DC.
2.
Connect terminal with Negative pole of 12V DC.
3.If the unit is installed in an RV, The GND terminal should be connected to a metal portion of
the RV.

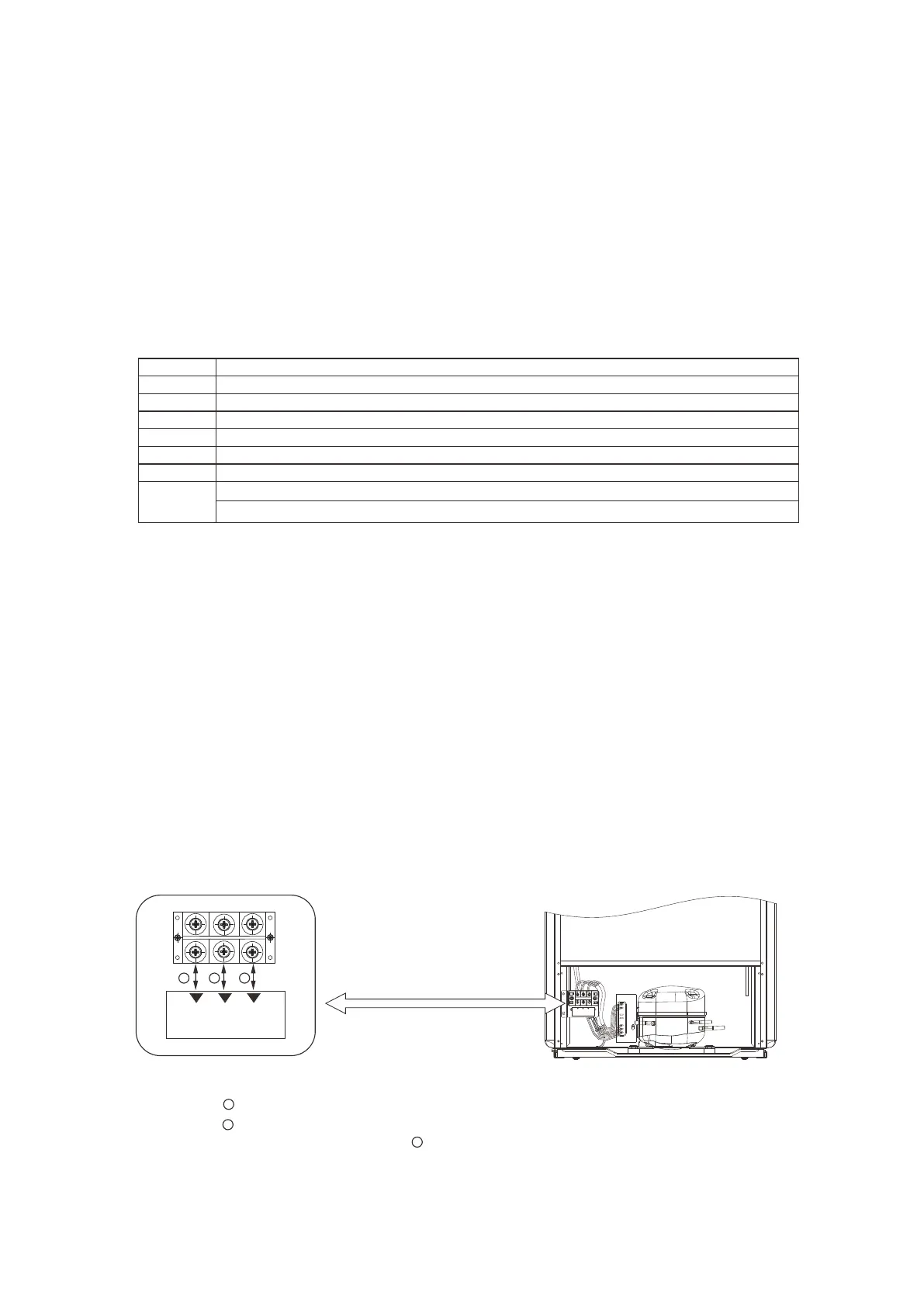

Wire connection diagram
2. When using an adaptor or converter AC to DC, No DC power supply is
recommended. The operation of the DC refrigerator is also dependent on a good,
clean ground connections.
3. It is recommended that only authorized or qualified professionals perform repair
services on unit.
1
2
3
Power Input:
Current:
DC12V
15A MAX
+
-
GND
Power Input:
Current:
DC12V
15A MAX
+
-
GND
1 2 3
