Figure 11
Figure 10
Electrical Requirements: 220-240V/50-60Hz. With recommendation to connect to a 50 Amp power supply.
Electrical Specifications
System Wattage
Oven Light 25 W (2)
Upper Heating Element 2450 W / 1960 W
Bottom Heating Element 1361 W
Grill Heating Element 2560 W
Convection Heating Element 1960 W
Ventilator Motor 20 W
Cooling Fan 18 W
WARNING: BEFORE MAKING THE ELECTRICAL CONNECTION, MAKE SURE THAT
• The safety circuit-breaker and the electrical system are able to withstand the load of the appliance.
Refer to rating label on back of range.
• Rating plate is located on back of range should you need to verify any of the electrical requirements.
• The power supply system has a ground connection in good working order in accordance with the
regulations in force.
• The electrical socket is easily accessible with the appliance installed. In all cases, the power supply lead
must be positioned so that it does not reach a temperature of 122°F above the room temperature at any
point.
• The manufacturer is not liable for any direct or indirect damage caused by faulty installation or
connection. It is therefore necessary that all installation and connection operations are carried out by
qualified personnel complying with the local and general regulations in force.
Terminal
Block Cover

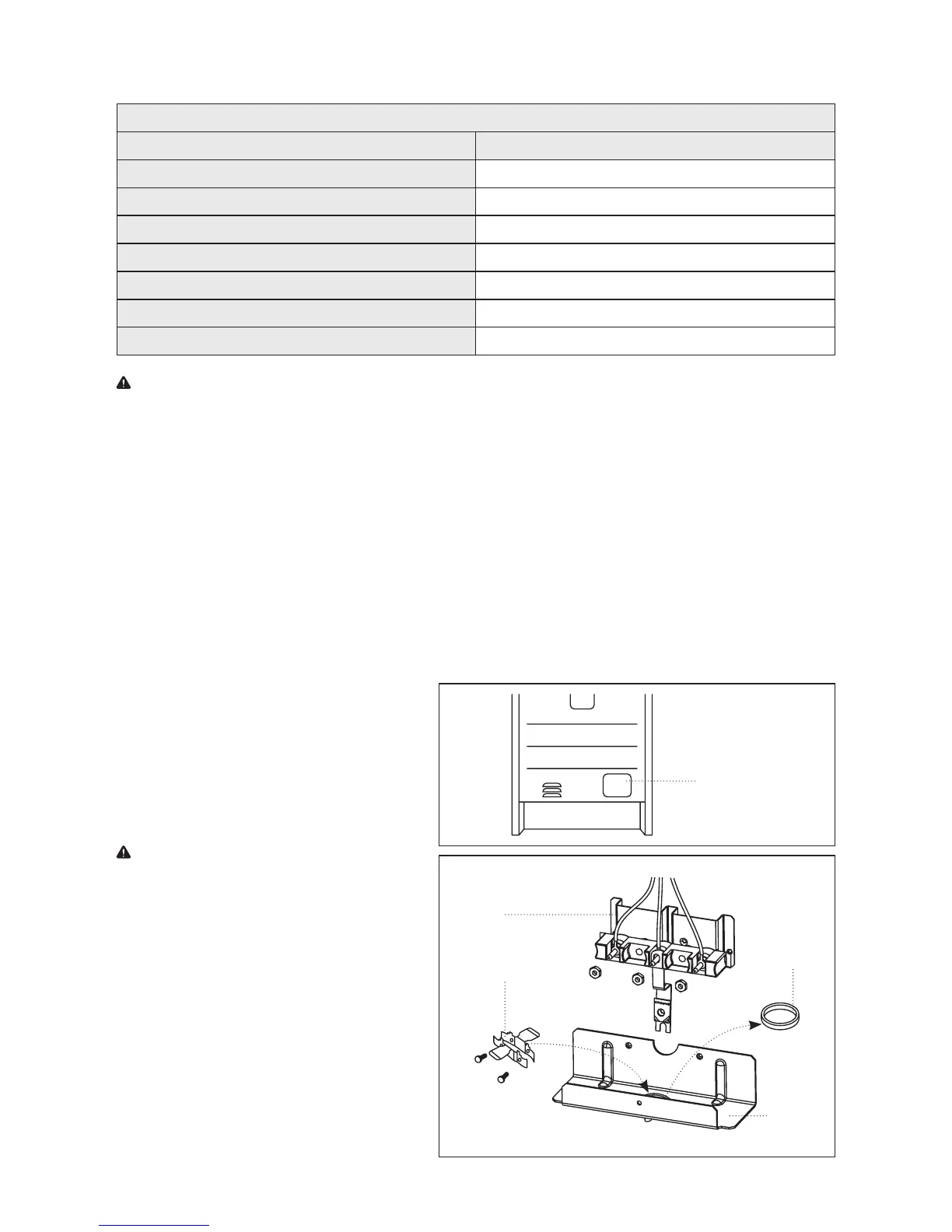

ELECTRICAL CONNECTION
Follow these steps for the 3-wire and 4-wire
installation process.
1. Remove the wire cover on the back of the
range by removing the two (2) screws using
a Phillips screw driver. (Refer to Figure 10.)
NOTE: DO NOT discard these screws.
2. Remove the knockout ring (1-3/8”)
located on bracket directly below the
terminal block. To remove the knockout,
use a pair of pliers to bend the knockout
ring away from the bracket and twist
until ring is removed. (Refer to Figure 11.)
3. Assemble the strain relief in the hole.
Insert the power cord through the strain
relief and tighten. Allow enough slack to
easily attach the cord terminals to the
terminal block. If tabs are present at the
end of the winged strain relief, they can be
removed for better fit. (Refer to Figure 11.)
Terminal
Block
Bracket
Strain Relief
Knockout
Ring
To Next Page
