PARTS AND FEATURES

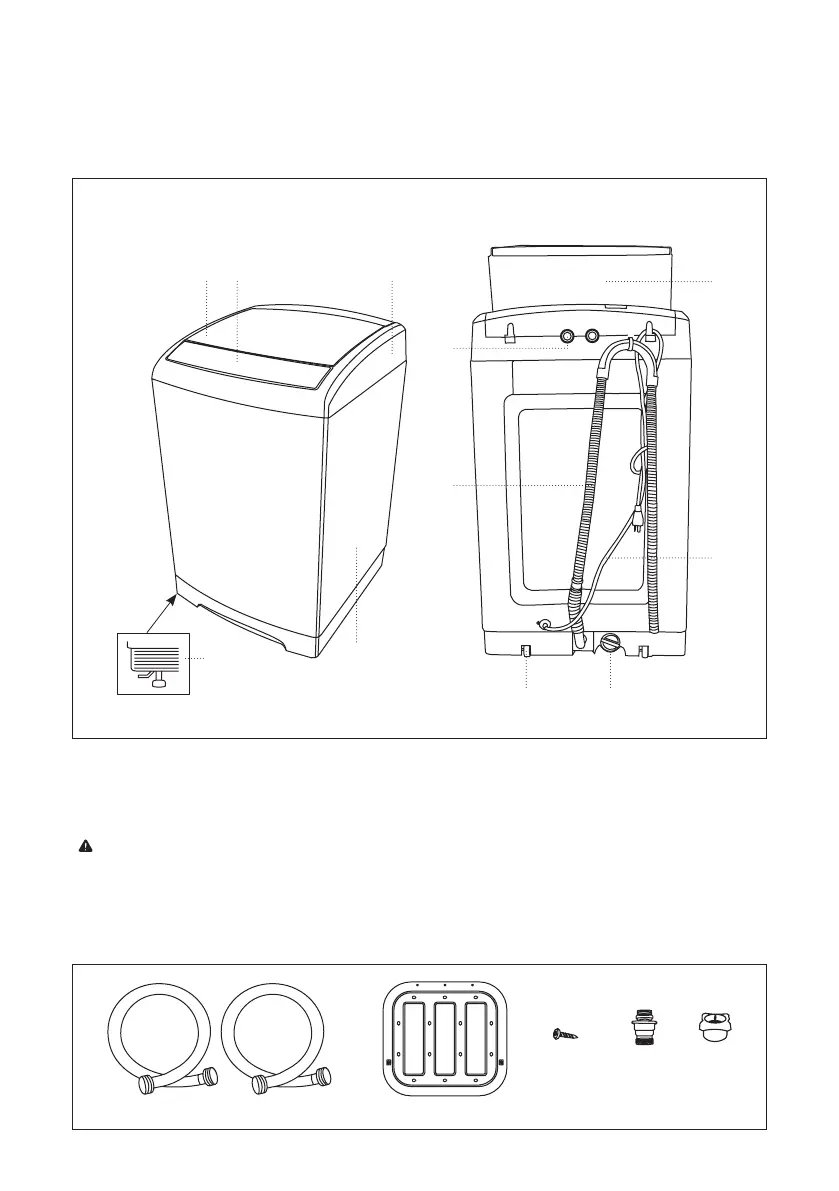

PRODUCT PARTS
ACCESSORIES
Figure 2
Figure 3
a� Top Lid
b� Control Panel
c� Adjustable Leg*
d� Frame
e� Cabinet
f� Water Inlet
g� Drain Hose*
h� Roller
i� Power Cord
*
NOTE: The 1�6 cu� ft� models (MCSTCW16W4 and MCSTCW16S4) have ONE adjustable leveling foot, and the
drain hose is located on the side of the washer� The 2�0 c� ft� models (MCSTCW20W4 and MCSTCW20S4) have
TWO adjustable leveling feet, and the drain hose is located on the back of the washer�
b d
i
a
g
f
a
e
h j
c
▲ Front View of Washer
▼ Rear View of Washer
Water Supply Hose (2) Bottom Cover
Screw
Quick
Connection
Adaptor
Water
Intake
Cap
j� Pump Filter

Magic Chef MCSTCW30W4 Specifications

General

Style	top load
Color	white
Washer Capacity	3 cubic feet
Temperature Selections	3
Delay Start / End	yes
Cycle Signal	yes
Annual Energy Consumption	65 kilowatt hours
Voltage	120 volts
Current	7 amperes

Weight and Dimensions

Depth	22 1/5 inches
Height	39 7/16 inches
Width	23 7/16 inches
Net Weight	99.21 pounds
