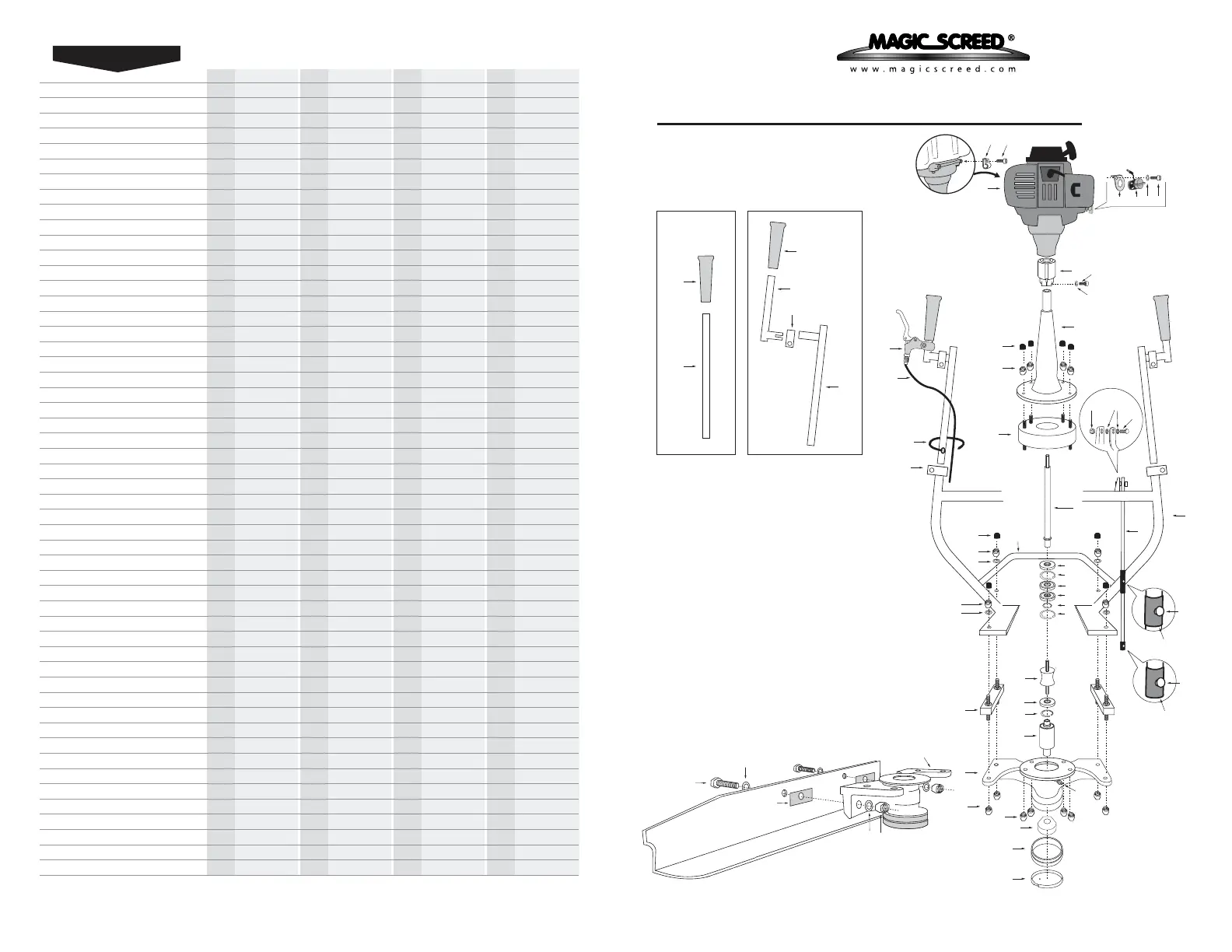

MAGIC SCREED HD 6060 - Parts Book and Assembly; Honda Magic Screed Parts List

8
9
HONDA
25
17
18
26
28
31
33
32
12
35
11
12
11
12
2
15
7
24
3
13
4
14
6
30
(XTRA VIBO)
34
48
39
45 44 47 46
37-2
37-3
37-1
27
27
38
6
36
29
5
50
12
52
51
12
38
51
53
54
55
20
20
19
21
56
21
36
57
8
7
1
10
10
9
MODEL MODEL MODEL MODEL
QTY HD6060 QTY HD6161 QTY HD7070 QTY HD7171
1 PLASTIC SPACER 2 10002 2 10002 2 10002 2 10002
2 VIBRO MOUNT 2 10003 2 10003
3 SEAL 1 10005 1 10005 1 10005 1 10005
4 GREASE FITTING 1 10008 1 10008 1 10008 1 10008
5 RUBBER COVER 1 10009-2 1 10009-2 1 10009-2 1 10009-2
6 HANDLES 1 50004 1 50004 1 50004 1 50004
6 HANDLE HOLD STYLE 1 10011-2 1 10011-2 1 10011-2 1 10011-2
7 HOUSING WEIGHT 1 50003 1 50003 1 50003 1 50003
8 BOLT 1/2 2 10017 2 10017 2 10017 2 10017
9 NUT 1/2 2 10018 2 10018 2 10018 2 10018
10 WASHER 1/2 4 10019 4 10019 4 10019 4 10019
11 WASHER 8 MM 4 10023 4 10023 4 10023 4 10023
12 NUT 8 MM 16 10024 16 10024 16 10024 16 10024
13 SHAFT ASSY 1 10026 1 10026 1 10026 1 10026
14 COUNTER WEIGHT 1 10027 1 10027 1 10027 1 10027
15 XTRA VIBRO MOUNT 2 10003 2 10003
17 HOUSING SHAFT 1 50001-2 1 50001-2 1 50001-2 1 50001-2
18 DRIVE SHAFT 1 20003-5050 1 20003-5050 1 20003-5050 1 20003-5050
19 CIRCLIP 13 MM 1 20004 1 20004 1 20004 1 20004
*
20 BEARING 2 20005 2 20005 2 20005 2 20005
*
21 CIRCLIP 29 MM 2 20006 2 20006 2 20006 2 20006
24 DRIVE AXLE 1 20009 1 20009 1 20009 1 20009
25 THROTTLE CONTROL 1 20010 1 20010 1 20010 1 20010
26 THROTTLE CABLE 1 20011 1 20011 1 20011 1 20011
27 GRIP 2 20012 2 20012 2 20012 2 20012
28 STAND 1 20013-1 1 20013-1 1 20013-1 1 20013-1
29 STAND RUBBER 1 20014 1 20014 1 20014 1 20014
30 CIRCLE 1 1/2 1 20016 1 20016 1 20016 1 20016
31 BOLT 1/4 1 200171 1 200171 1 200171 1 200171
32 NUT 1/4 1 20018 1 20018 1 20018 1 20018
33 6 MM NYLON FOR STAND 2 20023 2 20023 2 20023 2 20023
34 THROTTLE CABLE CLIP 1 20024 1 20024 1 20024 1 20024
35 TIE RAP 1 20026 1 20026 1 20026 1 20026
36 POP 1/8 FOR STAND RUBBER 2 20027 2 20027 2 20027 2 20027
37-1 ADJ. HDL. GRIP SECTION 2 20032-2 2 20032-2
37-2 ADJ. HDL. LONG SECTION 2 20032-3 2 20032-3
37-3 TOP SECTION HANDLES 2 20032-4 2 20032-4
38 CLIP FOR HANDLES 2 20033 2 20033 4 20033 4 20033
39 HONDA ENG. GX 35 TSM3 1 50000 1 50000 1 50000 1 50000
44 ON OFF SWITCH HONDA 1 40005 1 40005 1 40005 1 40005
45 SWITCH BRACKET HONDA 1 40006 1 40006 1 40006 1 40006
46 BOLT FOR 40006 1 40007 1 40007 1 40007 1 40007
47 LOCK FOR 40008 1 40008 1 40008 1 40008 1 40008
48 BOLT FOR 20024 HONDA 1 40010 1 40010 1 40010 1 40010
50 TIE RAP 1 20040 1 20040 1 20040 1 20040
51 CAP FOR 50002 8 50005 8 50005 8 50005 8 50005
52 ANTI VIBRATION SEAL 1 50002 1 50002 1 50002 1 50002
53 ENGINE ADAPTOR 1 50006 1 50006 1 50006 1 50006
54 BOLT M6 1 40002 1 40002 1 40002 1 40002
55 LOCK M6 1 40004 1 40004 1 40004 1 40004
56 HOUSING SHAFT SEAL 1 50008 1 50008 1 50008 1 50008
*
57 RUBBER TUBE 1 50009 1 50009 1 50009 1 50009
*
Please refer to the note attached to this manual.
MAGIC SCREED PARTS BOOK 2004 - HONDA
DESCRIPTION
