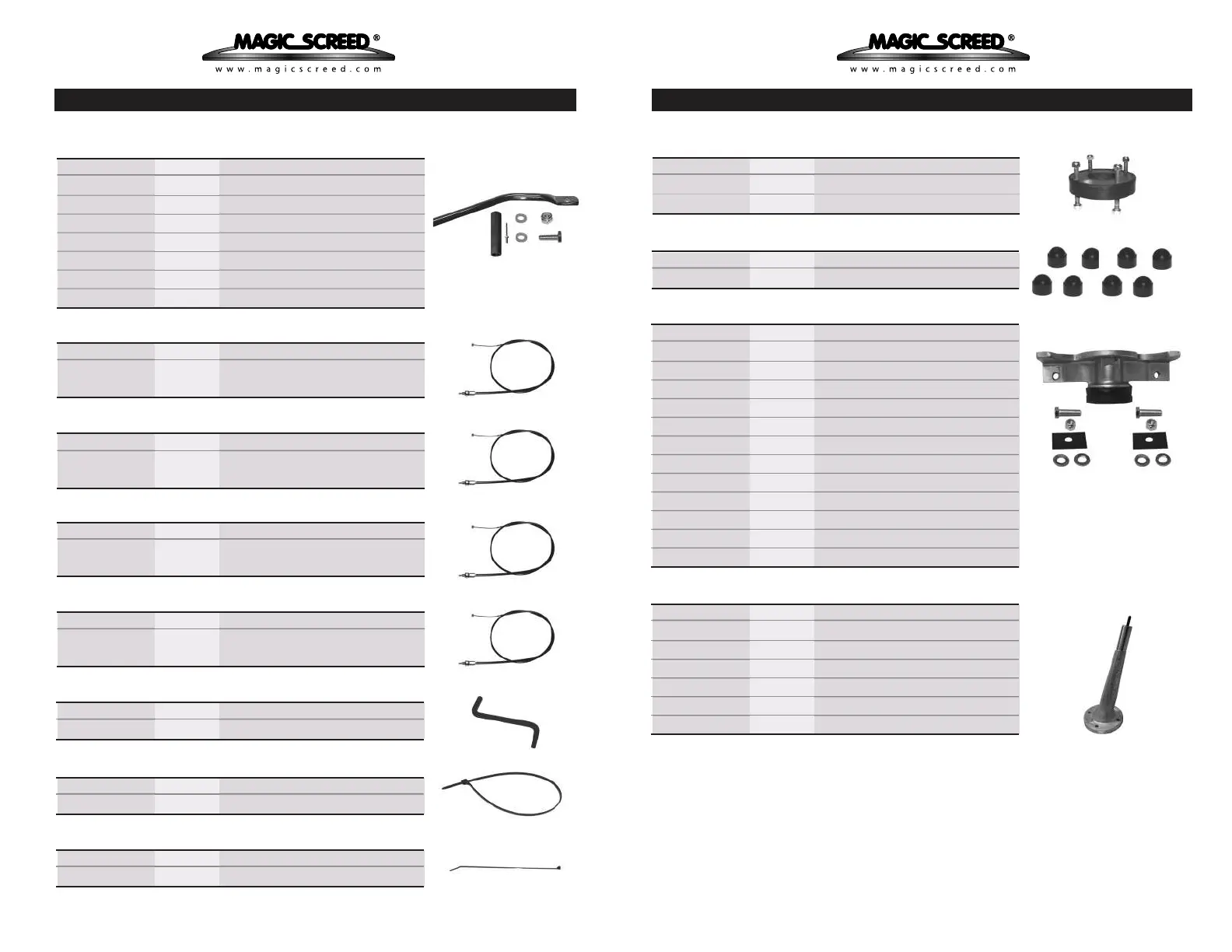

MAGIC SCREED HD 6060 - Magic Screed Parts Assembly

12
DA 4091 THROTTLE CABLE SHORT
PART NUMBER QTY DESCRIPTION
20011 1 THROTTLE CABLE
W./ ADJUSTEMENT
DA 4095 THROTTLE CABLE FOR ADJ. HANDLE BAG OF 10
PART NUMBER QTY DESCRIPTION
20011-L 10 THROTTLE CABLE LONG
W./ ADJUSTEMENT
DA 4096 THROTTLE CABLE SHORT BAG OF 10
PART NUMBER QTY DESCRIPTION
20011 10 THROTTLE CABLE
W./ ADJUSTEMENT
DA 4097 ALLEN 6 MM 5 MM
PART NUMBER QTY DESCRIPTION
10056 1 ALLEN 6 MM 5 MM
DA 4098 TIE RAP FOR 10009-2
PART NUMBER QTY DESCRIPTION
20040 10 TIE RAP
DA 4099
PART NUMBER QTY DESCRIPTION
20026 10 TIE RAP FOR HANDLES
DA 4100
PART NUMBER QTY DESCRIPTION
50002 1 ANTI VIBRATION SEAL
10024 8 NUT 8 MM
DA 4101
PART NUMBER QTY DESCRIPTION
50005 8 CAP FOR 8 MM NUT
13
DA 4102 HOUSING WEIGHT ASSEMBLY
PART NUMBER QTY DESCRIPTION
10002 2 PLASTIC SPACER
10005 1 SEAL
10008 1 GREASE FITTING
10009-2 1 RUBBER COVER
10017 2 BOLT 1/2 NF X 1” 3/4
10018 2 NUT 1/2 NF
10019 4 WASHER 1/2
10026 1 SHAFT ASSEMBLY
10027 1 COUNTER WEIGHT
20016 1 CIRCLIP 38 MM
20040 1 TIE RAP HOUSING WEIGHT
50003 1 HOUSING WEIGHT
* DA 4103-2 HOUSING SHAFT ASSEMBLY
PART NUMBER QTY DESCRIPTION
20003-5050 1 DRIVE SHAFT FOR HD-5050
20004 1 CIRCLIP 13 MM
20005 2 BEARING
20006 2 CIRCLIP 29 MM
50001-2 1 HOUSING SHAFT
50008 1 HOUSING SHAFT SEAL
*
Please refer to the note attached to this manual.
MAGIC SCREED PARTS ASSEMBLY MAGIC SCREED PARTS ASSEMBLY
DA 4088 STAND ASSEMBLY
PART NUMBER QTY DESCRIPTION
20013-1 1 STAND
20018 1 NYLON NUT 1/4
20023 2 NYLON WASHER 1/4
20017 1 BOLT 1/4
20014 1 STAND RUBBER
20027 2 RIVET
50009 1 RUBBER TUBE
DA 4090 THROTTLE CABLE FOR ADJ. HANDLE
PART NUMBER QTY DESCRIPTION
20011-L 1 THROTTLE CABLE LONG
W./ ADJUSTEMENT
