3
Step 3
Temporary bolt
placement

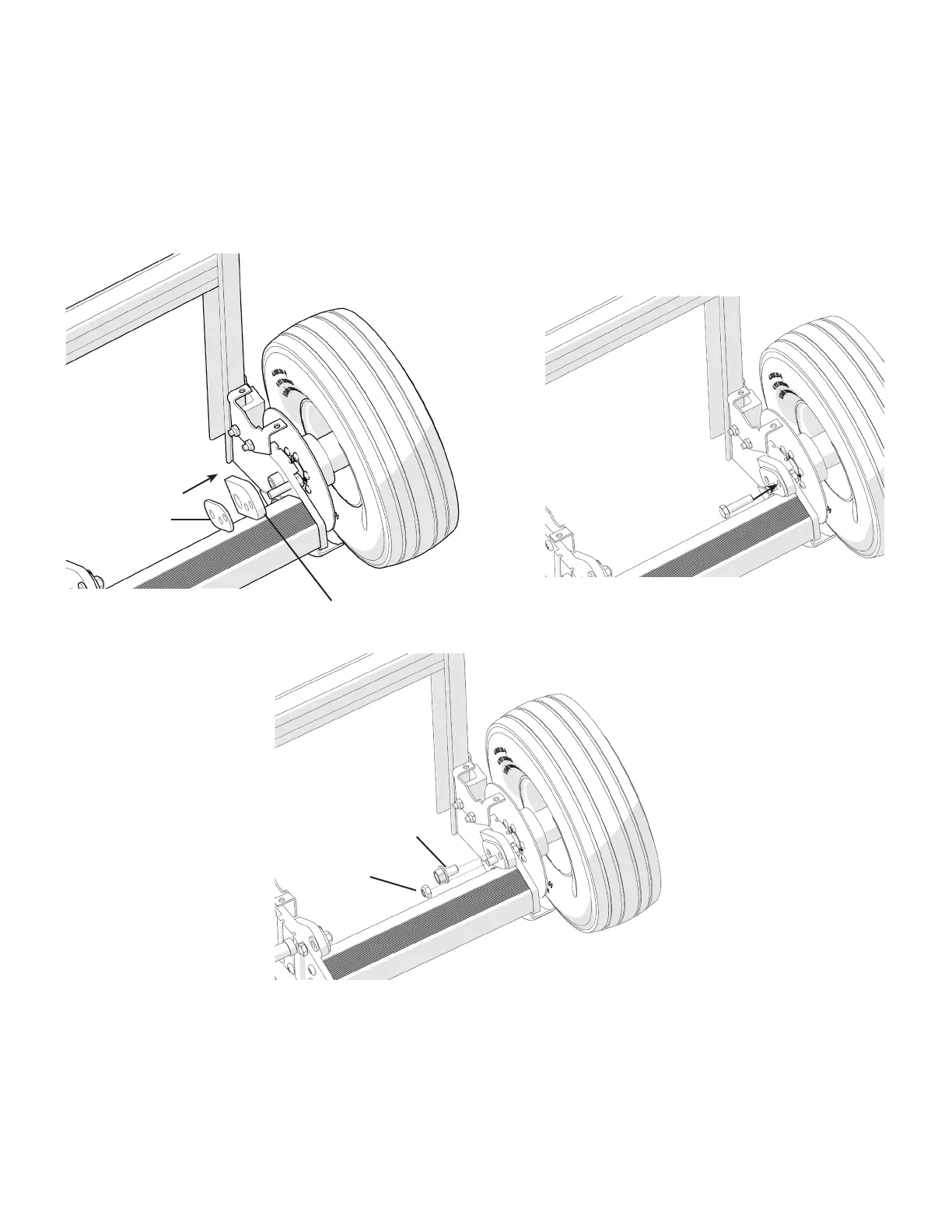

Insert lower bracket (C) and axle spacer (D) as shown below. Tip - it is helpful to temporarily insert a screw
through both spacers to help hold alignment BEFORE you tighten the lock nut and axle bolt. Remove this screw
after you've tightened the lock nut and axle bolt.
Then replace the lock nut and tighten to 100 120 in.-lbs. torque. Apply blue thread locker to axle bolt threads;
replace axle bolt and tighten to 50 ft.-lbs. torque.
3a
TIP
3b
(1/2" wrenches, 9/16" wrench, pliers, blue thread locker)
C
D
Lock
nut
Axle
bolt
