7 Preparing to Use
7.1 Ventilator Analyzer Setup

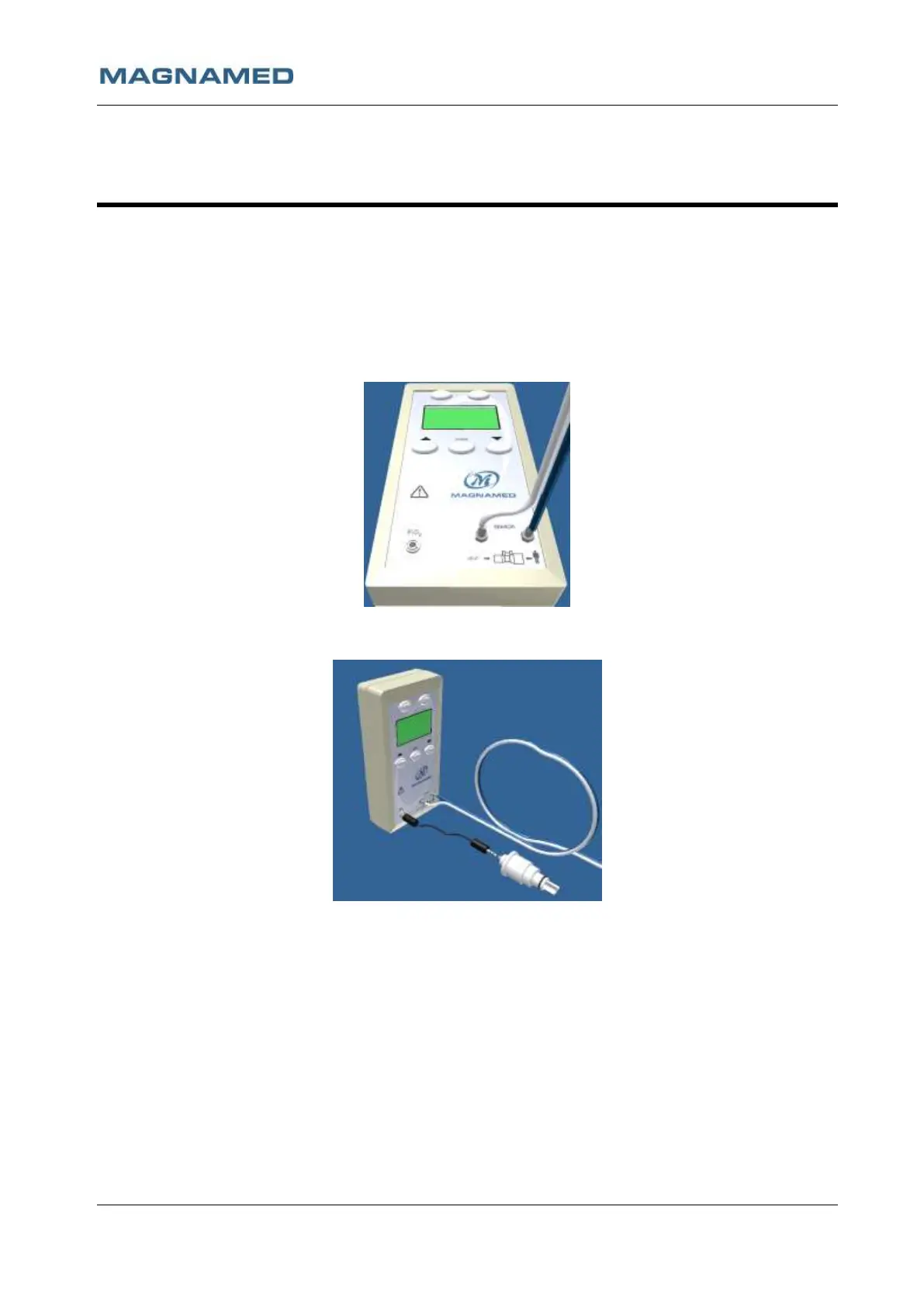

1 Connect the flow sensor tubing according to the following figure:
2 Connect the oxygen sensor to VentMeter using appropriate cable (audio cable).
3 Turn on the VentMeter and wait for the initialization screen.
4 Select the flow sensor to carry out the tests and connect the pressure line as shown in the figure
bellow
