Magnum XLS .15A User Manual

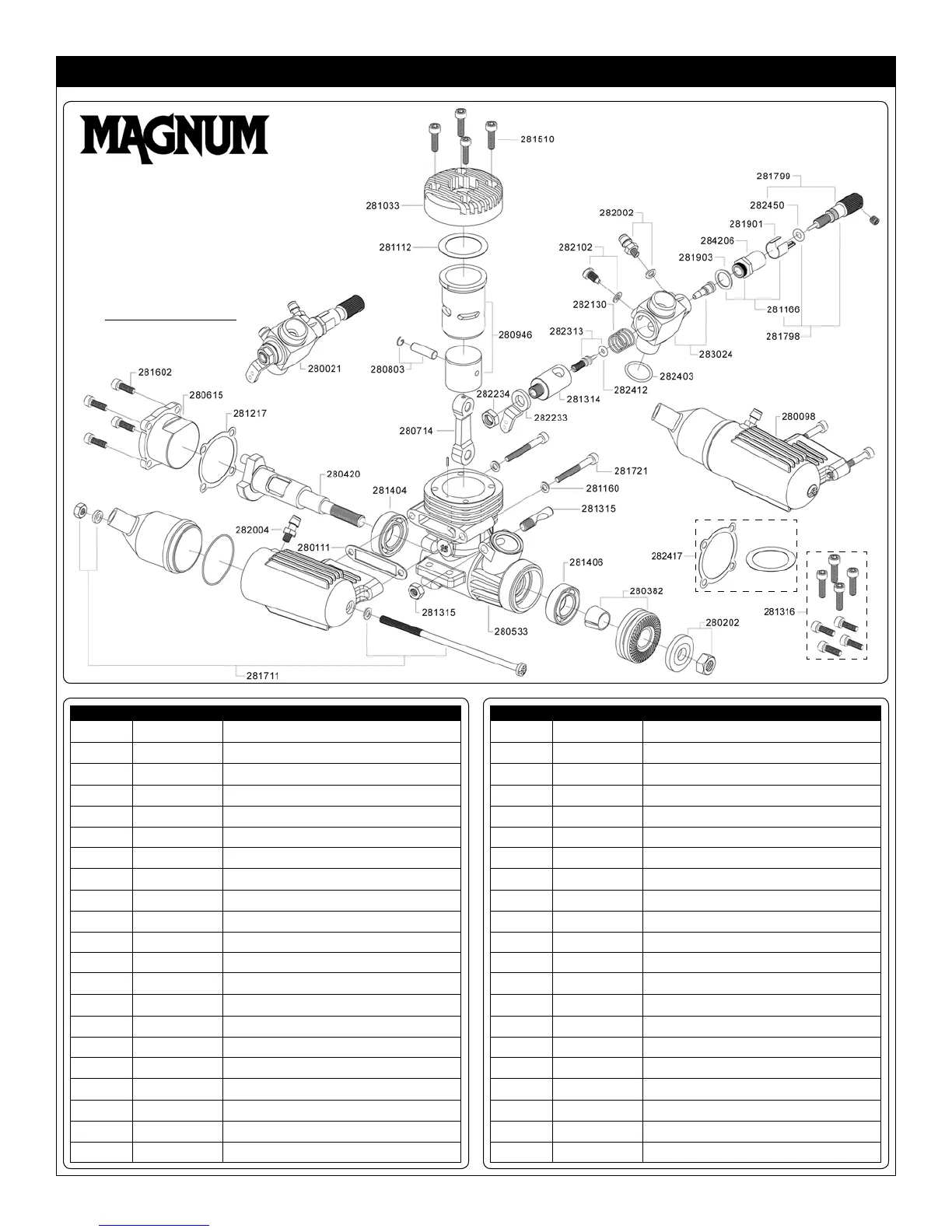

XLS .15A AIRCRAFT ENGINE EXPLODED PARTS VIEW
280021 S15801 Carburetor Assembly - Complete
280098 S15601 Mufer Assembly - Complete
280111 15609 Mufer Gasket
280202 12228 Propeller Nut and Washer
280382 S15238 Drive Washer and Collet
280420 S15210 Crankshaft
280533 S15101X Crankcase
280615 S15102 Backplate
280714 15204XH Connecting Rod
280803 12213K Wrist Pin and Clip
280946 S15203 Piston and Sleeve Assembly
281033 S15103 Cylinder Head
281115 S15112 Cylinder Head Gasket (2)
281166 12862 High Speed Needle Valve Seat Assembly
281160 80841 Mufer Bolt Lock Washers (2) M3
281217 15111G Backplate Gasket
281314 S15813 Carburetor Barrel
281315 S15124 Carburetor Cinch Bolt and Nut
281316 15901 Bolt Set (Includes 281510 & 281602)
281404 12110 Rear Ball Bearing
281406 28109 Front Ball Bearing
ORDER # REFERENCE # DESCRIPTION
281510 12122 Cylinder Head Bolts (4) M2.5x12mm
281602 12126 Backplate Bolts (4) M2.5x6mm
281711 15616 Mufer Axial Bolt Set M3x83mm
281721 12120K Mufer Bolts (2) M3x25mm
281798 S15860 High Speed Needle Valve Assembly - Complete
281799 S15861 High Speed Needle Valve with O-Ring
281901 12833 Needle Valve Detent Spring
281903 12847 Needle Valve Seat Gasket
282002 12819 Fuel Nipple with Fiber Gasket
282004 12114 Fuel/Pressure Nipple
282102 12837G Rotor Bolt with Fiber Gasket
282130 46814A Carburetor Rotor Spring
282233 12812K Throttle Arm
282234 12811K Throttle Arm Retaining Nut
282313 S15810 Idle Needle Valve with O-Ring
282403 12816 Carburetor Base O-Ring
282412 40845 Idle Needle Valve O-Ring
282417 S15416 Gasket Set (Includes 281112 & 281217)
282450 12845 High Speed Needle Valve O-Ring
283024 S15863 Carburetor Body with Spray Bar
284206 12830 Needle Valve Seat
ORDER # REFERENCE # DESCRIPTION
Revision 1 September 2006
Replacement parts can be ordered directly
from your local Magnum Engine hobby retailer.
If your hobby retailer does not stock Magnum
engines, you can order direct from us.
Global Services
18480 Bandilier Circle
Fountain Valley, CA 92708
Phone: (714) 963-0329
Fax: (714) 964-6236
Email: service@globalhobby.net
