Mahindra 2014 Scorpio S10 User Manual

2-8
© Copyright Mahindra & Mahindra Ltd. 082014
Fuse No
Fuse Rating
Circuit
9 60A
Battery — 2
10 60A EC Mini Fuse
11
Spare Fuse
12
Spare Fuse
13
Spare Fuse
14
Spare Fuse
15 30A
ABS Solenoid / Condenser Fan
16 15A Brake switch
17 15A
AC Comp Clutch
18 10A HFM
19
Spare
20 10A
AC Relay/GNS
21
Spare
22 5A
CBS/ISS
23
Spare
24 15A Horn
25 15A EGR
26 15A
Front Fog Lamp
27 10A
EMS Battery-2
28 15A Low Beam
29 10A
EMS Battery-1
30 15A
High Beam
Relay No
Circuit
31
Cooling Fan Low Relay
32
Cooling Fan High Relay
33
Spare
34
GNS Relay
35
Spare
36
AC Compressor Relay
37
Head lamp LO Beam Relay
Relay No
Circuit
38
Fog Lamp Relay
39
Head lamp HI Beam Relay
40
Horn Relay
41
Spare
42
Starter Relay
43
GNS Relay
44
ECU Relay
45
Condenser Fan Relay
46
Fuel Pump Relay

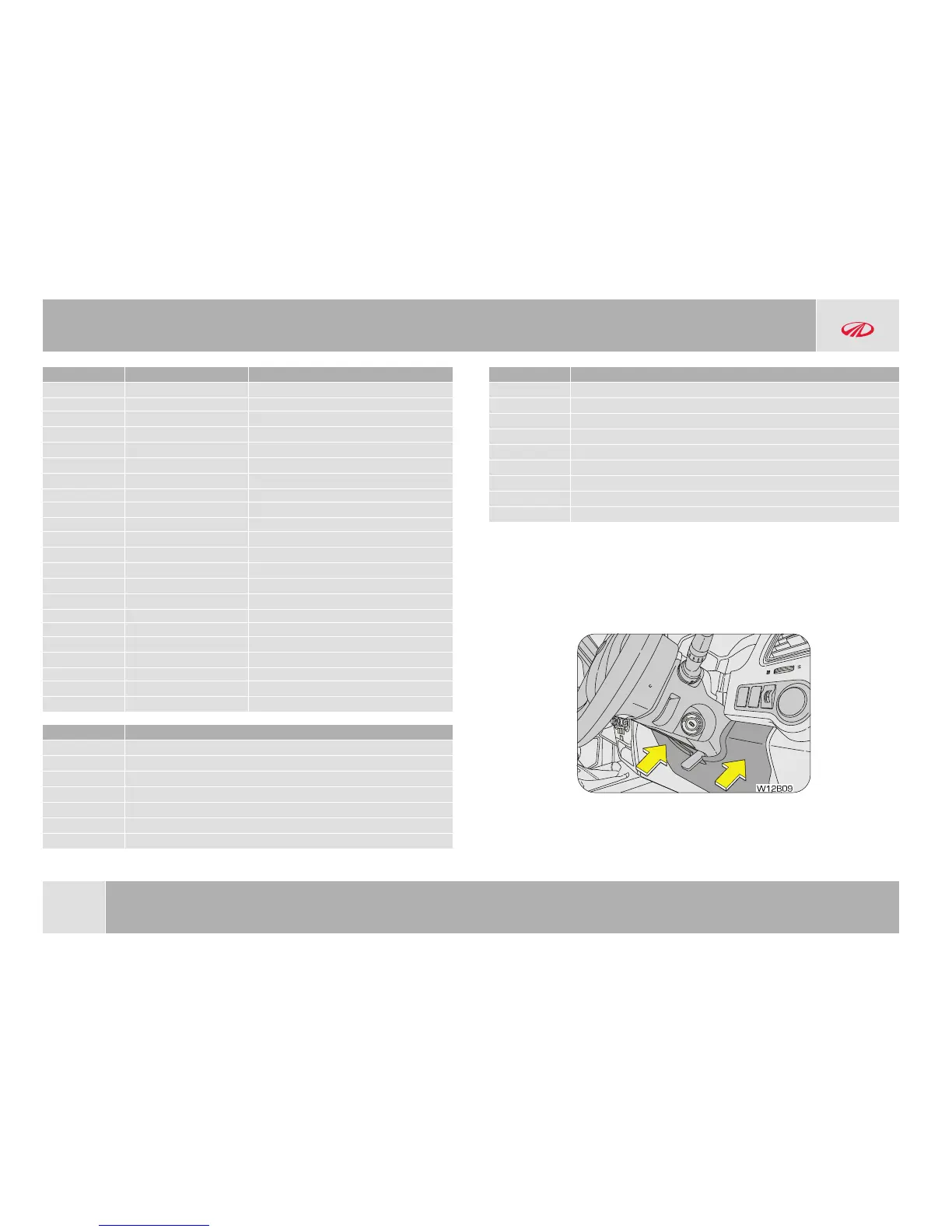

2.5.2 Instrument Panel Fuse Box
• Unlock the steering tilt lever (push it down)
• Remove the two screws of the shroud below the steering column
• Open the shroud outward to access the instrument panel fuse box
W12B09
