Mahindra 2014 Scorpio S10 User Manual

© Copyright Mahindra & Mahindra Ltd. 082014
2-9

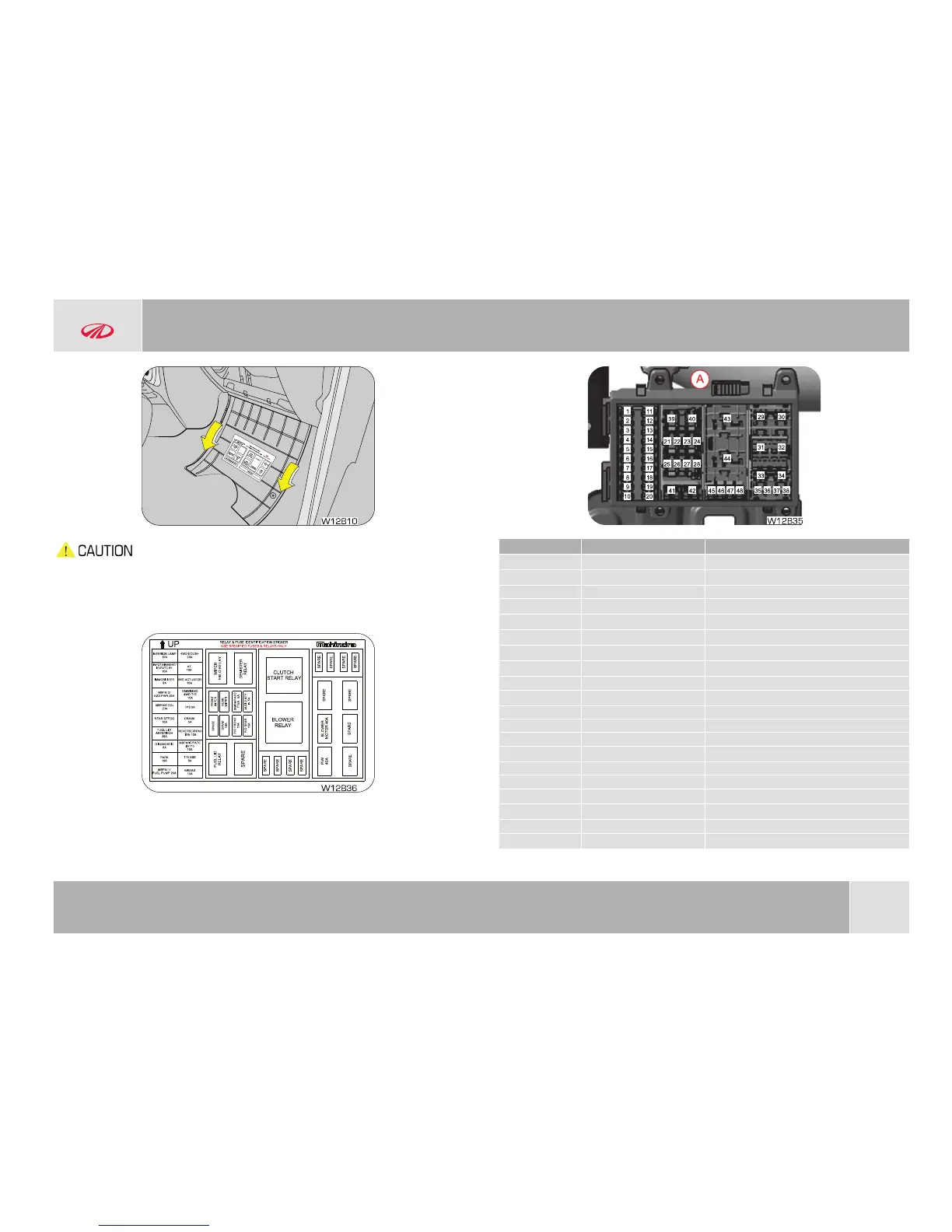

W12B10
Put the steering column shroud back and ensure you lock the tilt steering lever.
Spare fuses are available in this fuse box location.
Fuse puller (A) is available in this fuse box location.
W12B36
RELAY & FUS E IDENTIFICATION STICKER
USE SP ECIFIED FUS ES & RELAYS ONLY
PARK
10A
AIRBAG
10A
T15 ABS
5A
MBFM/IC/FATC
IS/T15
10A
REVER SE/R PAS
IGN 10 A
CRANK
5A
TPS 5A
EMS/IMMO
4WD T1 5
10A
4WD ACTUATOR
10A
AT
10A
4WD E CU B+
20A
INTERIOR LAMP
10A
INFOTAINMENT/
IC/FATC B+
10A
IMMOBILIZER
5A
MBFM 2/
HZD P WR 20A
MBFM3/ CDL
20A
REAR DEFOG
15A
FUEL LID/
ANTI PINCH
20A
DIAGNOSTIC
5
A
FUEL LID
RELAY
SPARE
SP ARE
ORVM
10A
P/O FRONT
15A
P/O REAR
15A
AUDIO KEY
IN 5A
MBFM/FATC
T15A 5A
REAR
WIPER
FRO NT
WIPER
WIPER
HI/LO R ELAY
DEMISTER
RELAY
SPARE
SPARE
SPARE
SPARE
BLOWER
RELAY
CLUTCH
START RELAY
SPARE
P/W
40A
BLOWER
MOTOR 40A
SPARE
SPARE
SPARE
SPARE
SPARE SPARE
SPARE
MBFM-1/
FUEL P UMP 20 A
UP
W12B35
1
2
3
4
5
6
7
8
9
10
11
39
21 22 23 24
25 26 27 28
40 43
29 30
31 32
33 34
44
41` 42 45 46 47 48 35 36 37 38
12
13
14
15
16
17
18
19
20
A
Fuse No
Fuse Rating
Circuit
1 10A
Interior Lamps
2 10A
Infotainment/IC/FATC
3 5A Immobilizer
4 20A
MBFM2/HZD PWR
5 20A
MBFM3/CDL
6 15A
Rear Defogger
7 20A
Fuel Lid/Anti Pinch
8 5A
Diagnostic
9 10A Park
10 20A
MBFM1/Fuel Pump
11 20A 4WD ECU
12 10A AT
13 10A 4WD Actuator
14 10A
EMS/Immobilizer
15 5A TPS
16 5A Crank
17 10A
Reverse/RPAS IGN
18 10A
MBFM/IC/FATC/IS
19 5A ABS
20 10A
Airbag
