C-95
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

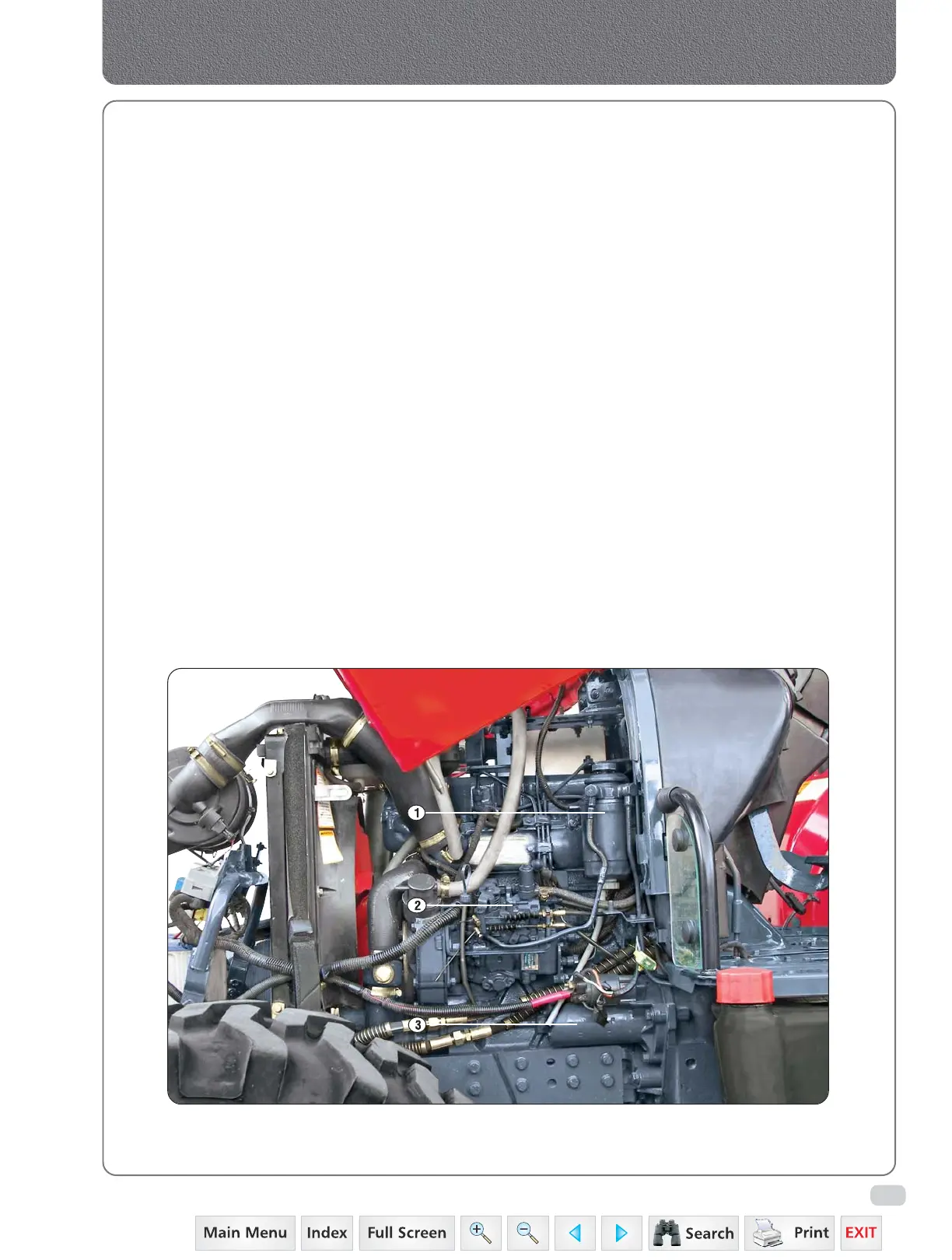

Fig.1 Left Hand view of Engine
1. Fuel Filter 2. Rotary Pump 3. Starter Motor
(A) Description
The fuel tank is enclosed below sheetmetal platform
and is bolted with side part support.
The filler cap incorporates an air vent hole and a
gasket.
The tank is rubber mounted on front and which
are bolted to the clutch housing.
At the rear, the scuttle panel, instrument panel and
filler plate are all secured to the tank surrounds.
A fuel gauge sender / Tank unit is fitted on the tank
for fuel level gauge.
The steering column and governor control rod run
through a tube in the fuel tank and are enclosed
by the tank surrounds.
(B) Removal
1. Drain the tank completely, through either
water drain tap.
2. Disconnect the fuel pipe at the tap or water
trap and disconnect the fuel return pipe.
3. Raise the hood, and disconnect the battery.
4. Remove the battery.
5. Remove the scuttle panel and the filler plate.
6. Carefully free the instrument panel. Disconnect
the oil pressure pipe from the gauge.
The machine is fitted with a heat indicator,
the transmitter must be removed from the
cylinder head. Disconnect the tractor meter
drive at the instrument panel.
7. Turn the steering wheel to the full left hand
lock and remove the steering wheel retaining
nut and washer. Remove the steering wheel
from the keyed taper.
8. Remove the two cap screws securing the
governor control bracket to the steering
column. Disconnect the governor lever to cross
shaft control rod and withdraw the governor
control lever complete with bracket.
9. Remove / disconnect the wire connection from
the Tank unit / Fuel gauge sender.
10. The tank is rubber mounted onto the front
and rear scuttle supports. Free the slacken off
the securing bolts and locknuts. Lift the tank
upwards and away from the steering column
housing. Remove the lower mounting pads.
Fuel System
