Mahindra 3535 - Page 361

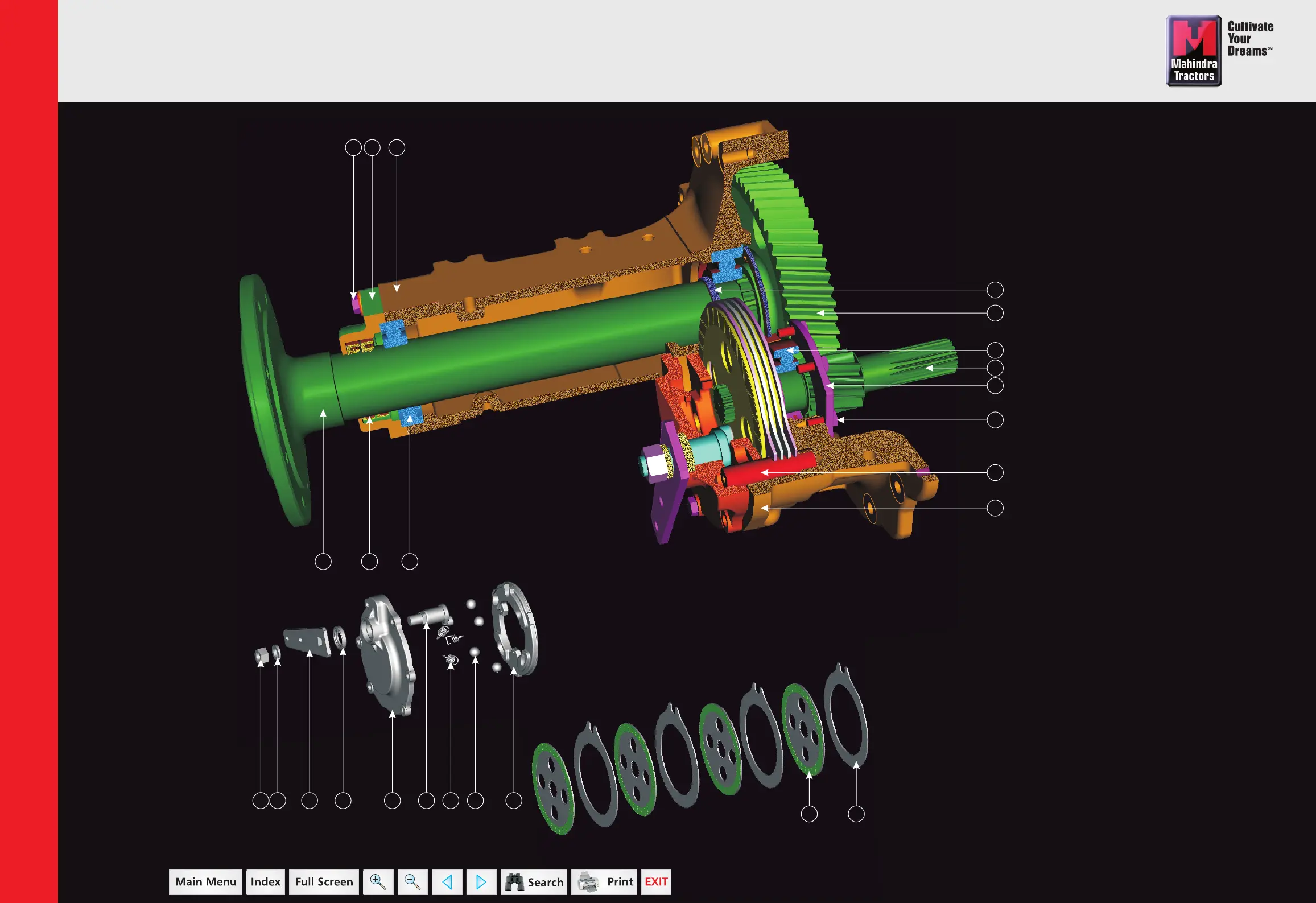

Rear Axle Carrier and Brake Assembly
13 12 11
1 2 3
4
5
6
7
8
9
10
25
14 15 16 17 18 19 20 21 22
2423
1. Flange Bolt
2. Case, Oil Seal Retainer
3. Rear Axle Carrier
4. Collar
5. Bull Gear
6. Ball Bearing
7. Bull Pinion Shaft
8. Bearing Retainer
9. Bolt M8 x 20
10. Brake Assembly
11. Bearing
12. Oil Seal
13. Rear Axle
14. Nut
15. Spring Washer
16. Brake Lever
17. Oil Seal
18. Brake Cover
19. Brake Cam
20. Spring
21. Steel Ball
22. Brake Plate
23. Brake Disc
24. Steel Plate
25. Brake Pin
