Mahindra 4035 Service Manual

B-15
35 Series 4WD, Model - 3535, 4035, 4535 and 5035 SM June’08

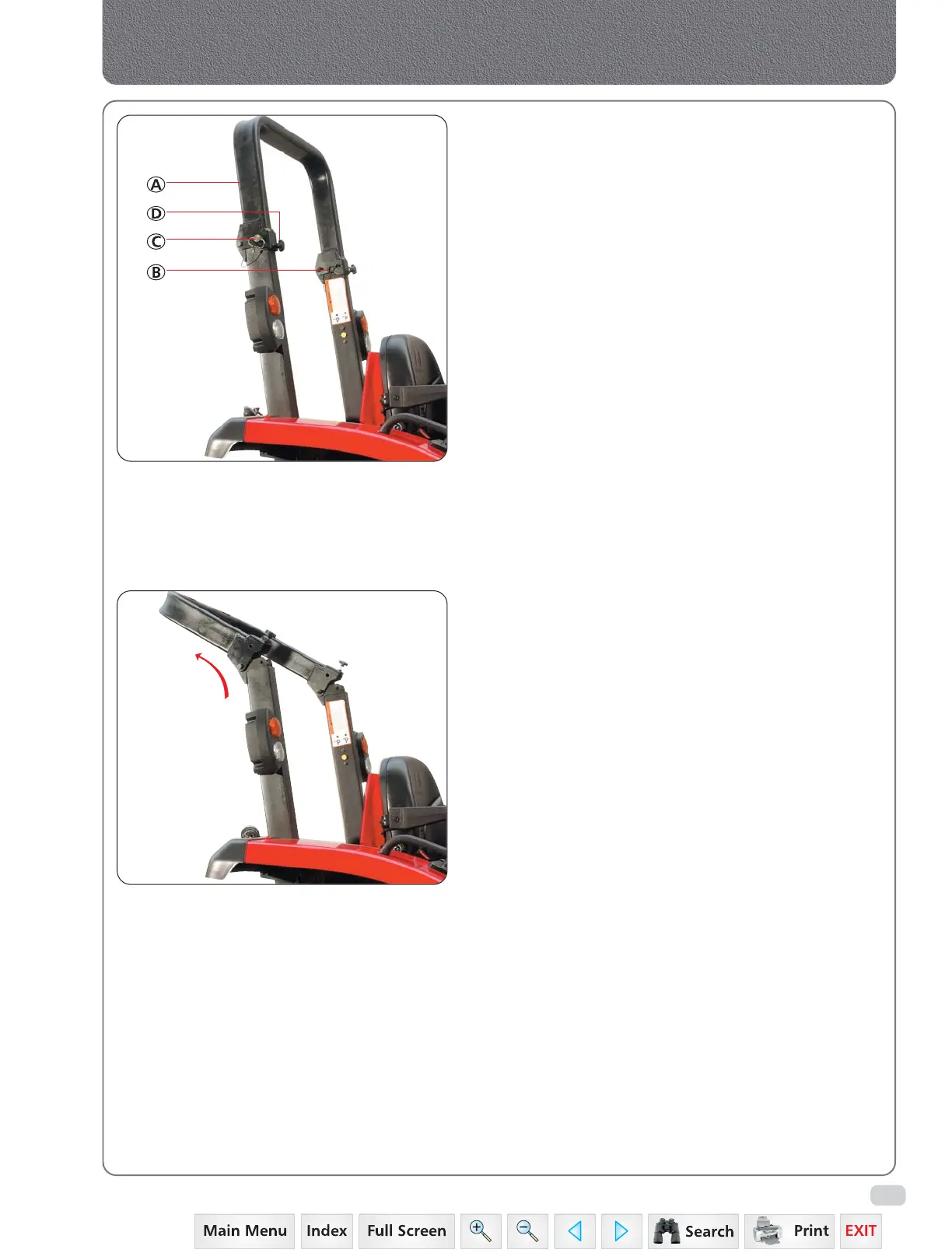

Removal & Refitment of ROPS
A - ROPS rollbar
B - Quick-lock Pins
C - Headed Pins
D - Knob
ROPS Folded
D. OPERATING FOLDABLE ROPS
To Fold-Down ROPS Rollbar (A):
1. Remove quick-lock pins (B) and headed pins (C).
2. Loosen the knob (D).
3. Turn the rollbar (A) of ROPS till it stops.
4. Reinstall pins (C and B) into its position on ROPS
To Raise ROPS in Operating Position:
1. Remove quick-lock pins (B) and headed pins (C).
2. Loosen the knob (D).
3. Turn to raise the rollbar (A) of ROPS.
4. Install pins (C) and quick-lock pins (B).
5. Tighten the knob (D).

Mahindra 4035 Specifications

General

Engine Power	35 HP
Engine Type	Diesel
Transmission	8 Forward + 2 Reverse
Hydraulic System	Open center
PTO Power	30 HP
Drive Type	4WD
No. of Cylinders	3
Steering	Power Steering
Wheelbase	73.2 inches
Ground Clearance	13.4 inches
Fuel Capacity	45 liters
Displacement	2.5 liters
Brakes	Oil Immersed
Fuel Tank Capacity	45 liters
