1. Adjustment of clutch
Due to continuous wear of parts during operation of the clutch, clutch slip and clutch
incomplete disengagement will happen, which can't make the tractor work normally;
therefore adjustment of clutch should be timely made.
1) Adjustment of dual stage clutch

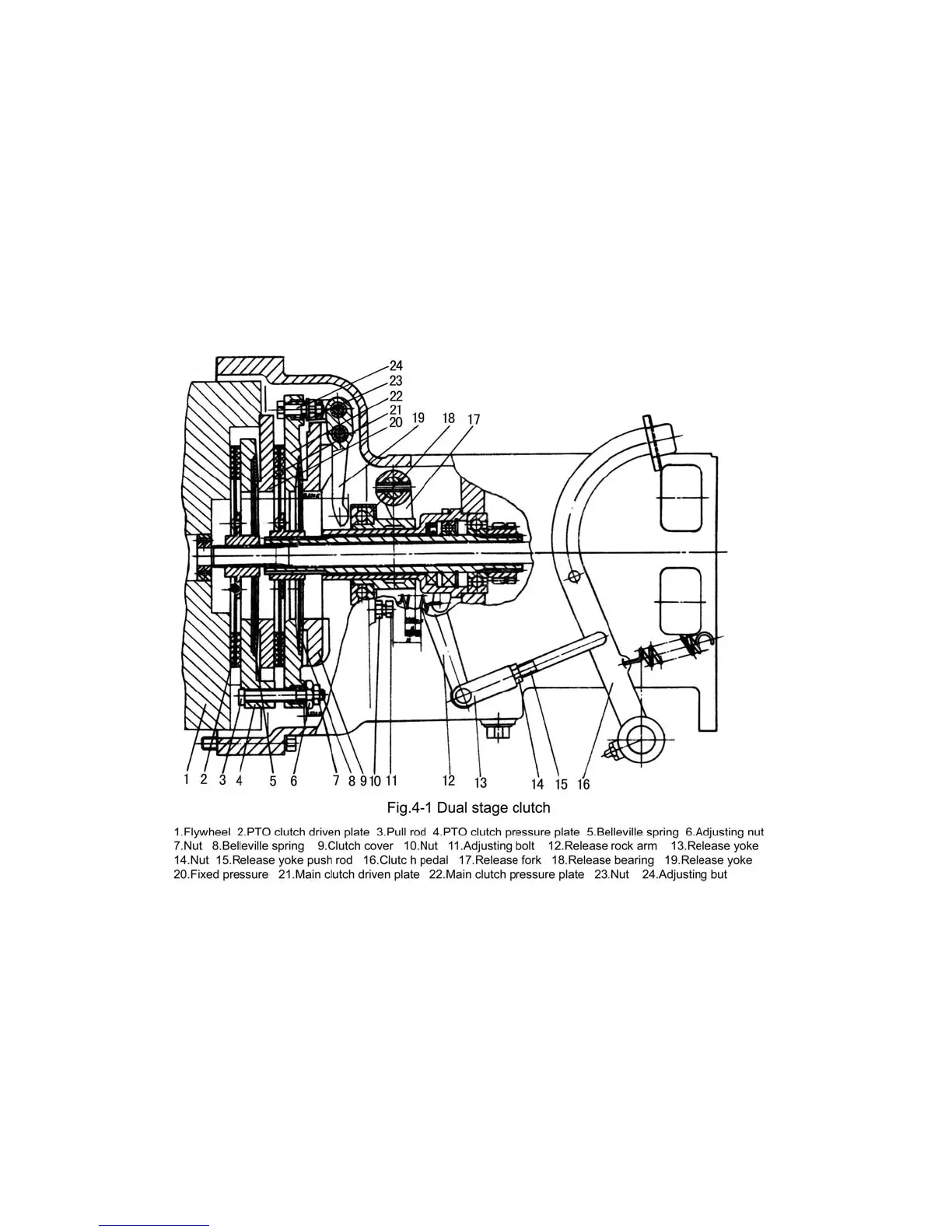

Fig. 4-1 is connection-controlled dual stage clutch. It mainly consists of three parts:
driving part, driven part and controlling part. Driving part rotates with the engine flywheel;
only when the clutch engages can the driven part rotate with the engine.
Dual stage clutch should be adjusted on a fixture. The adjusting steps are as follows:
Adjust the length of adjusting bolt (11) to make the distance between 3 release levers (19) and
the end faces of PTO clutch pressure plate (4) is 96.8mm, and the distance difference between
3 release levers and PTO clutch pressure plate is no more than 0.1mm; after adjustment
×
tighten it with nut M10 1.
