While left and right brake adjustment is unidentical and the tractor running in high
speed is braked in emergency , unidentical tyre print length (left and right ) and yaw motion
appear .In such case ,the brake pull rod should be shortened in the side with short print
length of tire ,or vice versa, to make both sides of the driving wheels to be braked
simultaneously and reliably ,then retighten the locking nut (9) . Subsequently ,check in the
3rd gear firstly ,after above adjustment has been done ,the check in the 4th gear again.
2) Adjustment of disc brake
A. Free state adjustment of disc brake pedal is the displacement measured from the
highest
Loosen the outer locking nut M10 (5) on adjusting rod (1) and turn the inner nut M10
(4) to change the mounting angle of the rock arm (2) through the longitudinal motion of the
self-position cushion (3) and ensure that the central connecting line of the upper and lower

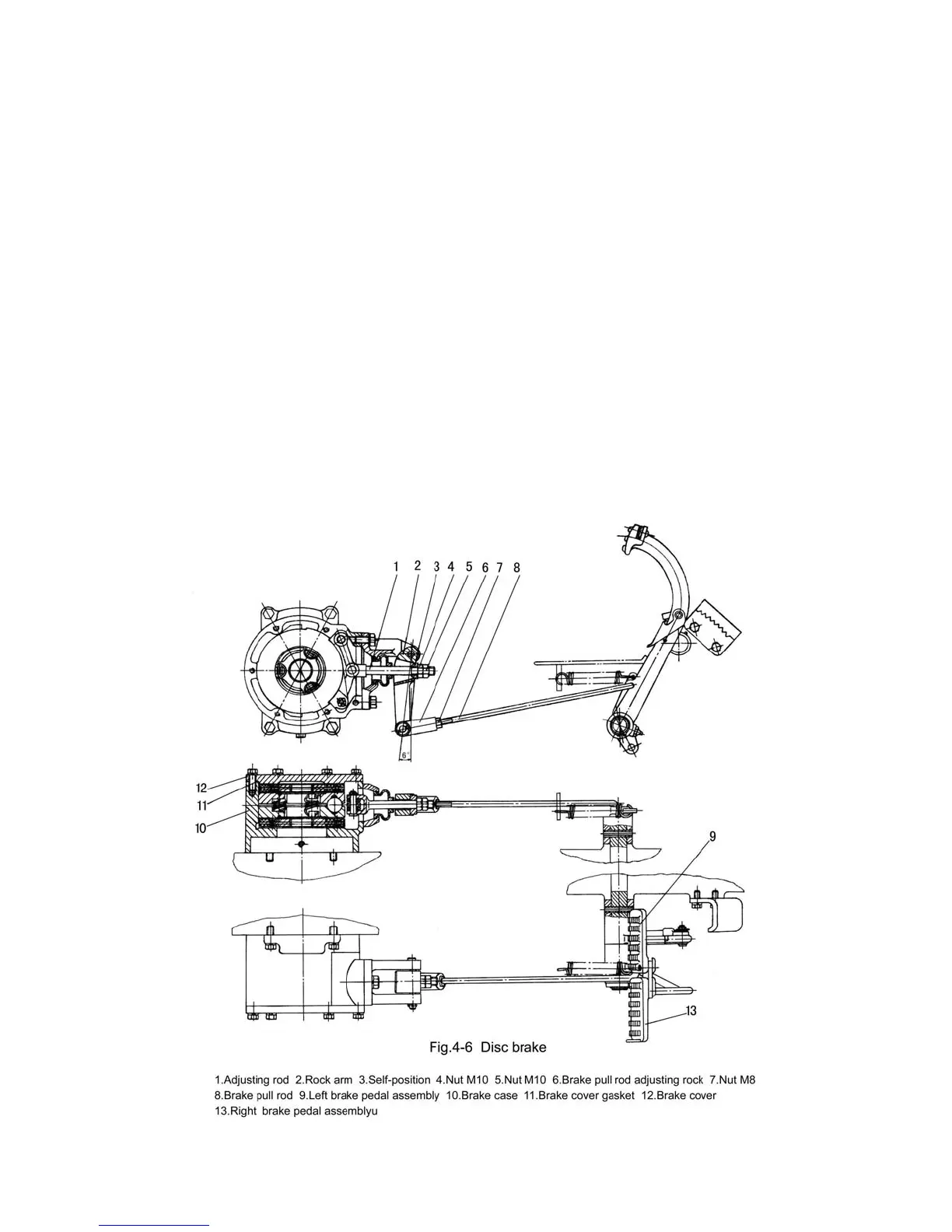

holes inclines to rear from the plumb line. After adjustment, lock it with locking nut (5). (Fig.4
-6)
