25

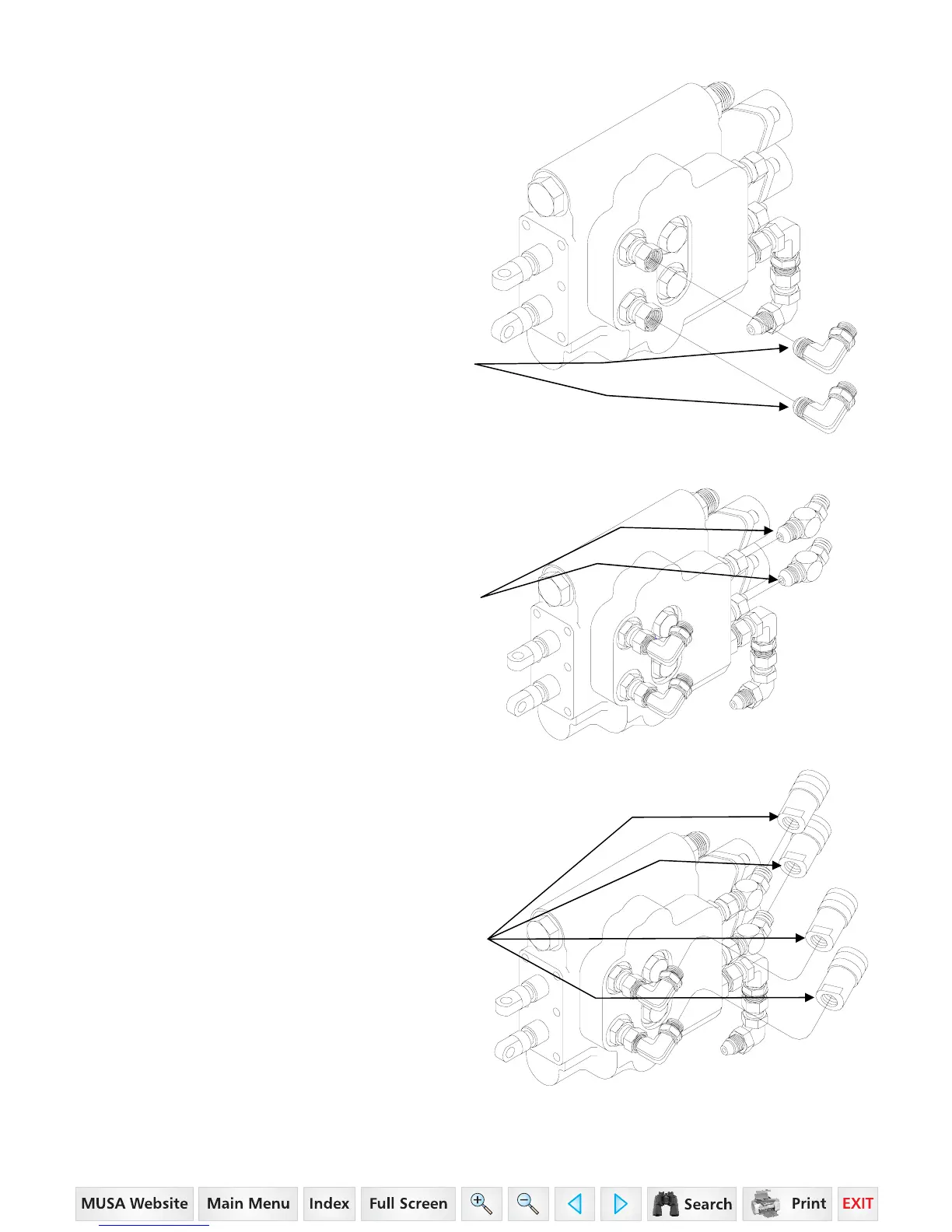

3.4.4. Install two 9/16” JICM x 9/16” ORBM 90° fittings
on two fittings installed in the “A” and “C” ports of the
loader valve. Position these fittings as shown.
9/16” JICM x 9/16” ORBM 90° fittings in ports “A”
and “C”
3.4.5. Install two 9/16” JICM x 9/16” ORBM 45° fittings
on two fittings installed in the “B” and “D” ports of the
loader valve. Position these fittings as shown. Install
these fittings at a 40° angle upward as shown.
9/16” JICM x 9/16” ORBM 90° fittings in ports “B”
and “D”
3.4.6. Install female quick couplers on fittings installed
in ports “A”, “B”, “C” and “D”. Make sure female quick
couplers are at a 40° angle upward.
Female Quick Couplers in ports “A”, “B”, “C” and
“D”
35 Series 4WD, Model - 3535 & 4035 Loader June’08
