26

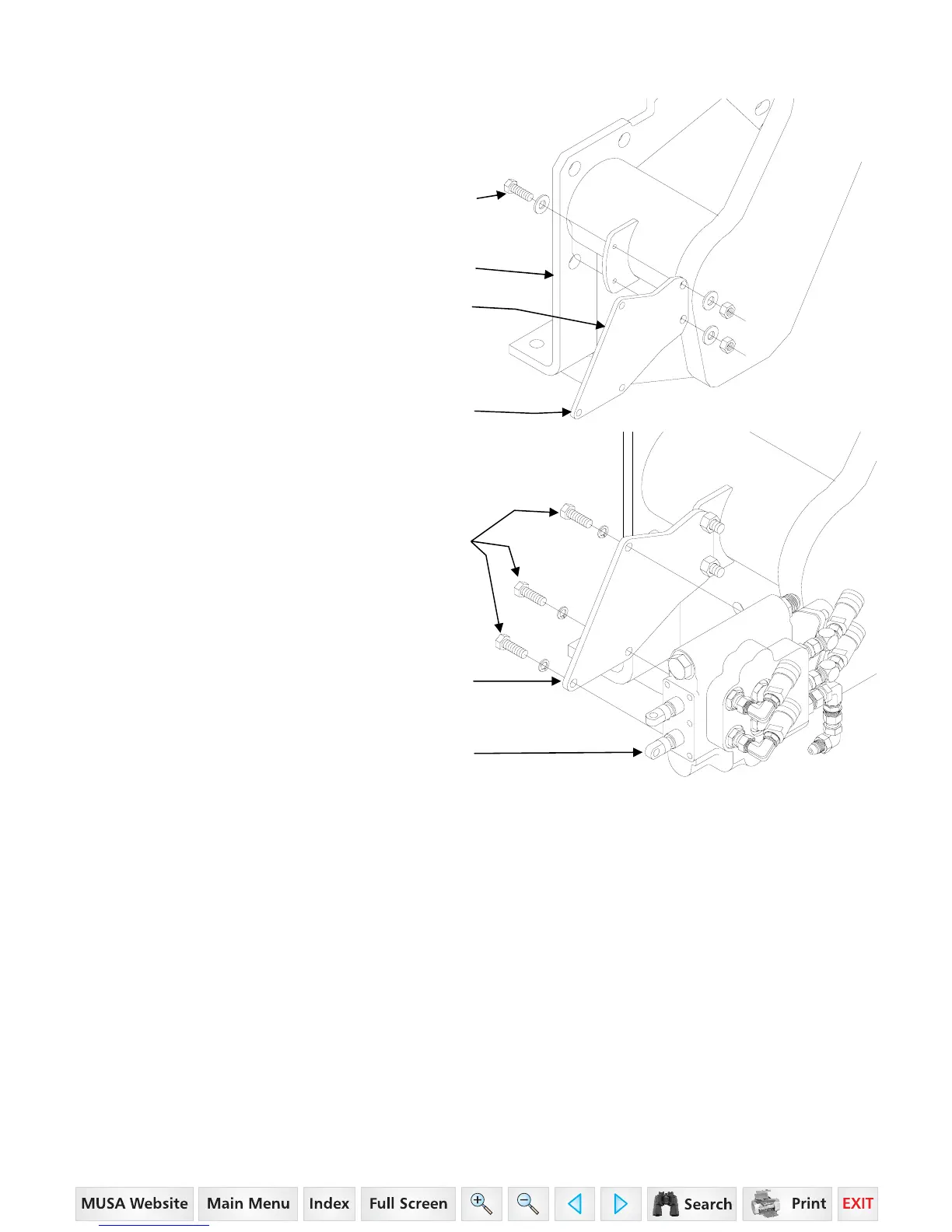

3.4.7. Install valve mount to RH center bracket using
hex head cap screw 5/16” x 1.25”, 5/16” flatwasher and
5/16” stover hex locknut as shown. Valve mount should
be installed as shown and angle slightly towards the
center of the tractor.
Hex Head Cap Screw 5/16” x 1.25”, 5/16”
Flatwasher,
5/16” Stover Hex Locknut
Rh Center Bracket
Valve Mount
NOTE: After installation is completed position valve
and components so they clear all tractor
components then tighten 5/16” valve mount
hardware.
Third hole downward
3.4.8. Install loader valve to valve mount using hex
head cap screw 5/16” x 5/8” and 5/16” lockwasher, 3
places as shown. Valve will angle in slightly toward the
center of the tractor.
Hex Head Cap Screw 5/16” x 5/8”,
5/16” Lockwasher, 3 places
Valve Mount
Loader Valve
NOTE: It is very important that fittings are rotated correctly so hose and fitting routing have a good
appearance. See page 28 photo.
35 Series 4WD, Model - 3535 & 4035 Loader June’08
