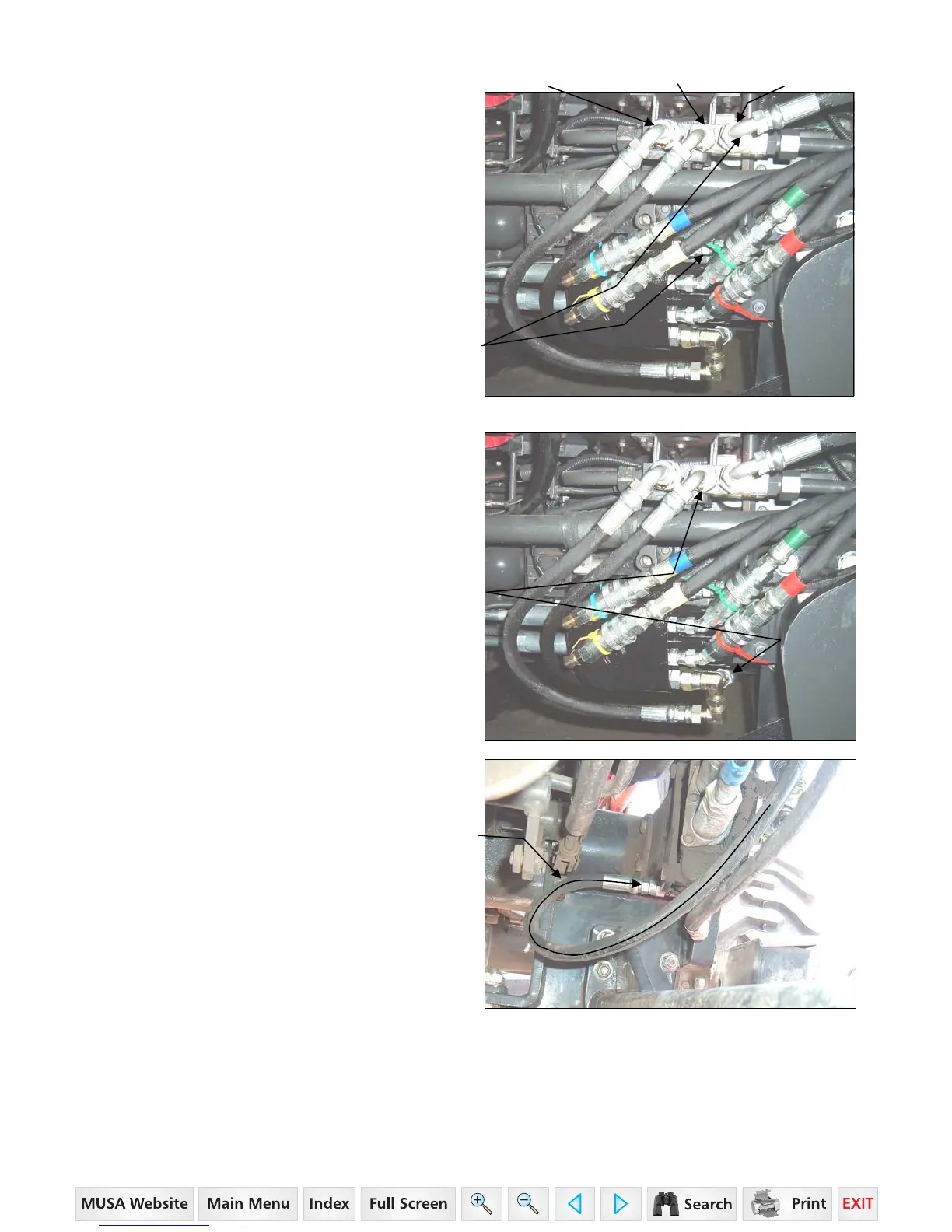

3.4.9. Remove plugs from tractor hydraulic block
located under the right hand side of tractor floorboard.
Install 22” hydraulic hose assembly ¾” JICF 90° x ¾”
JICF to pressure port of tractor and connect to fitting in
“In” port of loader valve. Route hose as shown.
Install 32” hydraulic hose assembly ¾” JICF 90° x ¾”
JICF to return port of tractor and connect to fittings in
“Out” port of loader valve.
Install 22” hydraulic hose assembly ¾” JICF 90° x ¾”
JICF to power beyond port of tractor and connect to
fittings in “PB” port of loader valve.
22” Hydraulic Hose Assembly ¾” JICF 90° x ¾”
JICF connected to Pressure port of Tractor and
connected to fitting in “In” port of loader valve.
Route hose as shown
32” Hydraulic Hose Assembly ¾” JICF 90° x ¾”
JICF connected to Return port of Tractor and
connected to fitting in “Out” port of loader valve.
Route hose under tractor as shown in photo below
Route hose toward center of tractor and back
toward 90° fitting as shown
Power Be
y
ond
Return
Pressure
35 Series 4WD, Model - 3535 & 4035 Loader June’08
