Mahindra ML 120 4035 User Manual

28

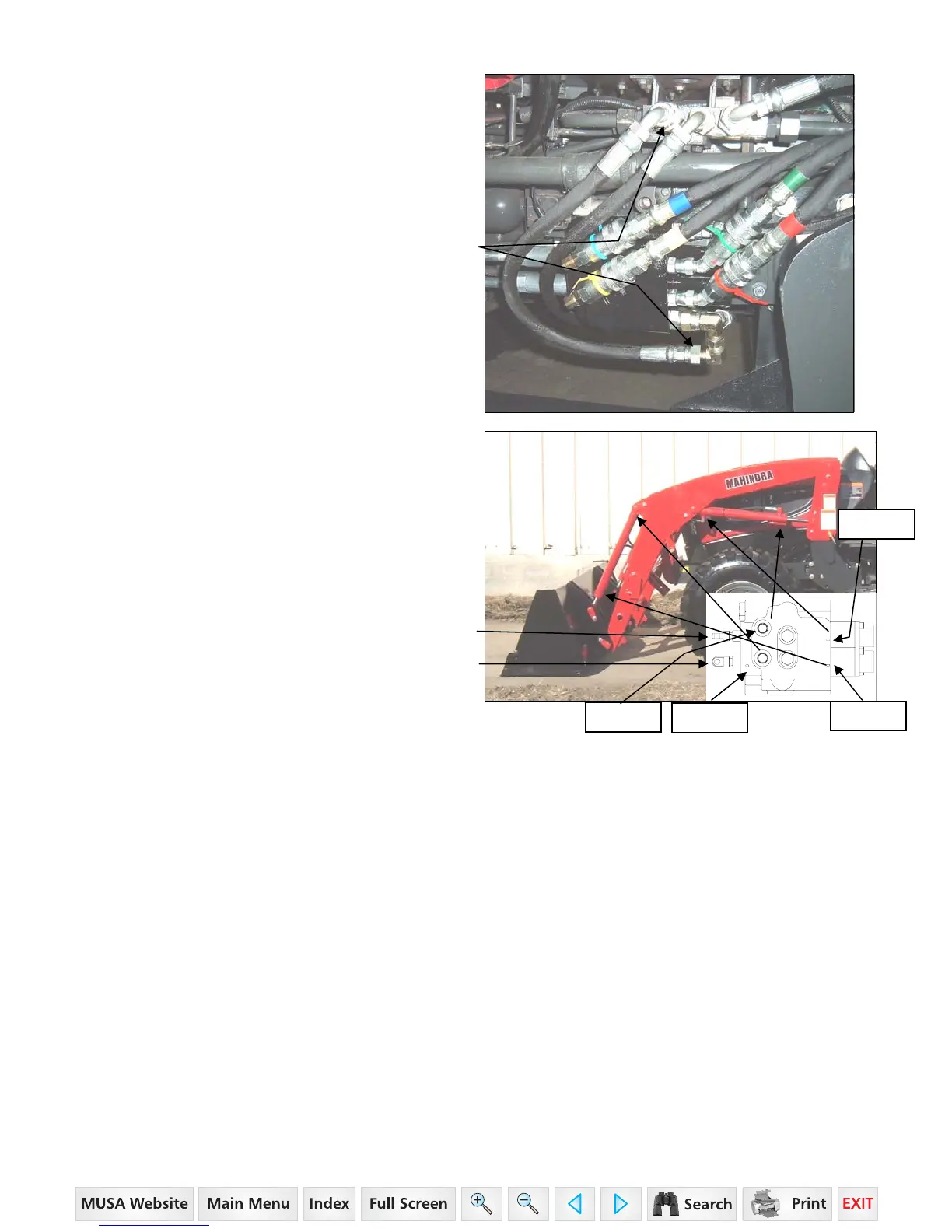

22” Hydraulic Hose Assembly ¾” JICF 90° x ¾”
JICF connected to Power Beyond port of Tractor
and connected to fitting in “PB” port of loader
valve. Route hose as shown
Valve Port Circuit Information:
Port "A" to Tilt Cylinder Base End – Yellow Tie
Port "B" to Tilt Cylinder Rod End – Red Tie
Port "C" to Lift Cylinder Rod End – Blue Tie
Port "D" to Lift Cylinder Base End – Green Tie
Lift Spool
Bucket Spool
Port D
Port B
Port C
Port
A
35 Series 4WD, Model - 3535 & 4035 Loader June’08
