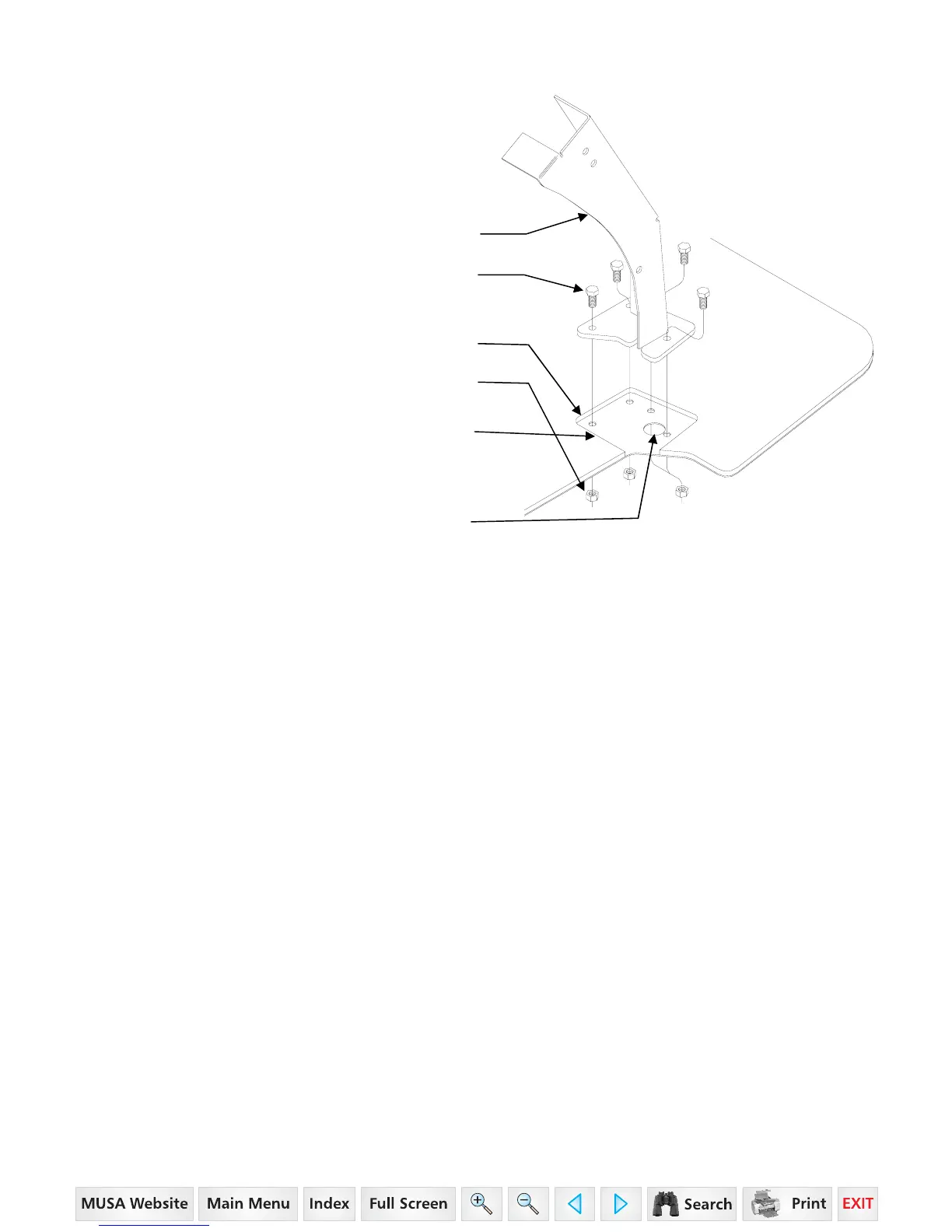

3.4.10. Remove cutout in floorboard rubber mat located
directly in front of right hand fender. Install single
handle controller mount to tractor platform directly in
front of right hand fender using hex head cap screw
3/8”-16 x 1.25” and 3/8”-16 stover hex locknut, 4 places
as shown.
Single handle controller Mount
Hex Head Cap Screw 3/8”-16 x 1.25”, 4 places
Tractor Floor
Stover Hex Locknut 3/8”-16, 4 places
Remove Rubber Floormat in this area
Single handle controller Cables must be routed
through this hole
35 Series 4WD, Model - 3535 & 4035 Loader June’08
