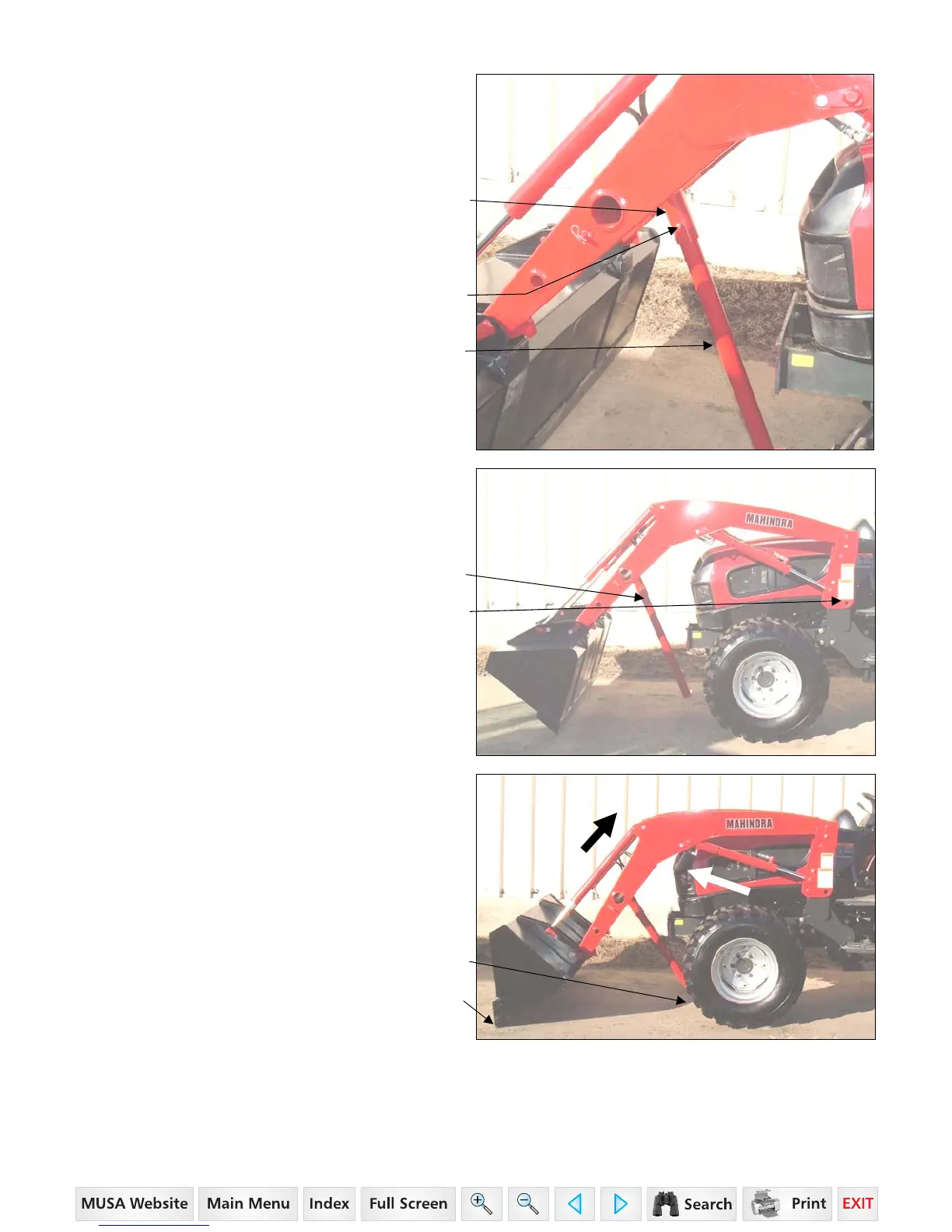

7.1.6. Position parking stand in attaching bracket
located in center of cross tube. Secure using clevis
pin and hairpin cotter.
Attaching bracket
Clevis pin and hairpin cotter
in park position
Parking Stand
in park position
7.1.7. Photo shows parking stand in park position and
handle pins removed from bearing boxes. Loader is
ready to be dismounted.
Parking stand in park position
Handle pins removed from bearing boxes
7.1.8. Retract tilt cylinders (A) to roll bucket back and
retract lift cylinders (B) to lower loader boom down
until parking stand makes firm contact with ground.
NOTE: Driving the tractor forward slowly while
positioning loader will allow parking stand to
contact ground firmly.
Parking stand
contacting ground firmly
Bucket resting on ground
A
B
