50

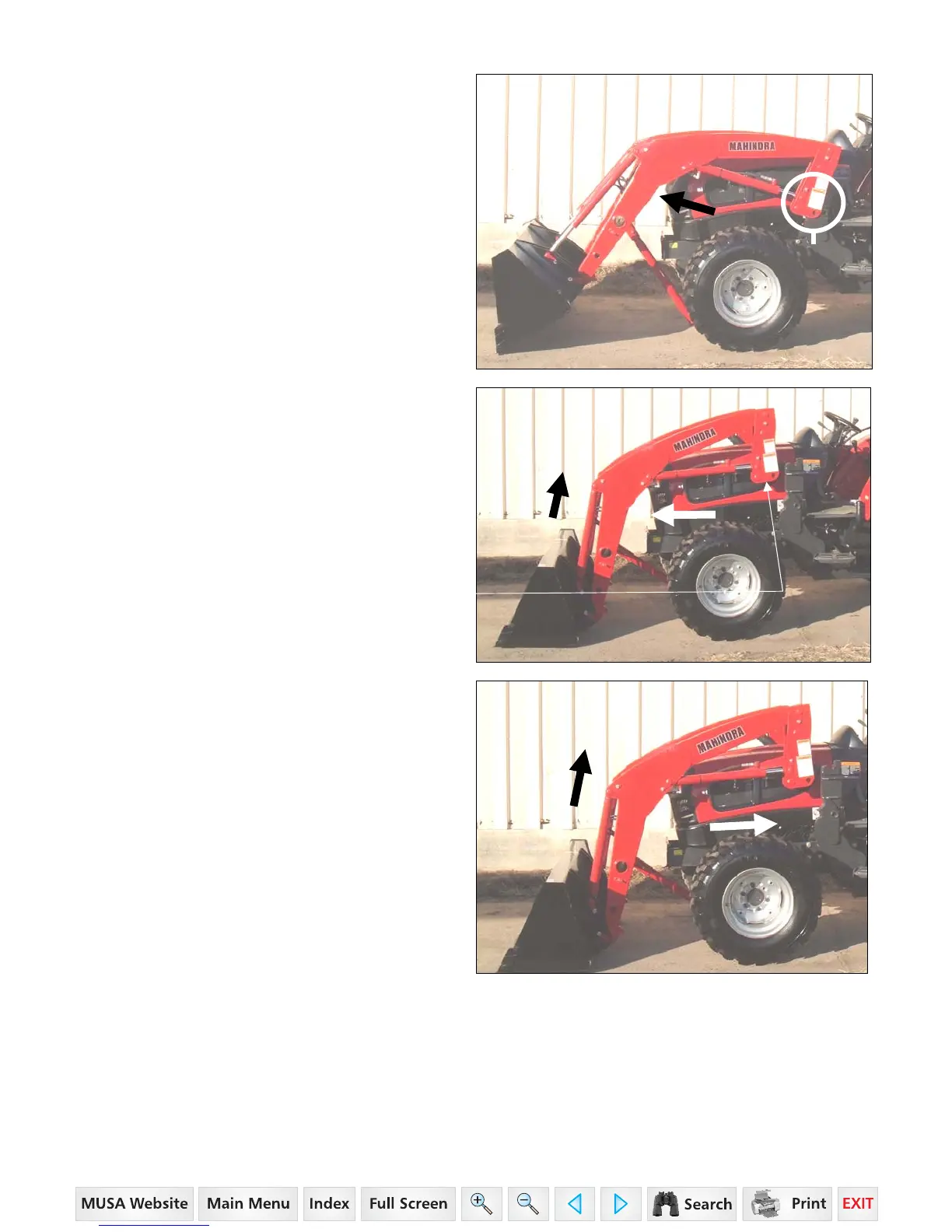

7.1.9. Retract lift cylinders (C) until bearing box pins
(D) rotates out of tower hooks and loader bracket
towers.
7.1.10. Slowly drive tractor forward (E) while retracting
tilt cylinders (F). Doing this will allow bearing boxes to
guide loader as it is being parked off of tractor.
Bearing boxes
7.1.11. Retract tilt cylinders (G) completely.
7.1.12. Make sure all loader components clear tractor.
Back tractor away (H) slightly.
7.1.13. Stop the tractor engine and then work valve
handle/handles to relieve hydraulic fluid pressure in
lines. Refer to tractor operator manual for additional
information.
C
D
E
F
G
H
35 Series 4WD, Model - 3535 & 4035 Loader June’08
