Diagnostic Manual (MBFM) MAN-00068-60
October 2009/Rev 1
The repair methods given by the manufacturer in this document are based on the technical specifications, current at the time of release. The
methods may be modified as a result of changes introduced by the manufacturer in the production of the various component units and
accessories from which the vehicles are manufactured. The reproduction, translation, transmission, in part of or whole of the present
document, are prohibited without the prior written consent of Mahindra & Mahindra Ltd.
The use of this document by any person other than the
trained personnel, at the Authorised Service Centre of Mahindra & Mahindra Ltd., will amount to unauthorized use and shall be liable for
penalty/prosecution© 2009 Mahindra & Mahindra Ltd.

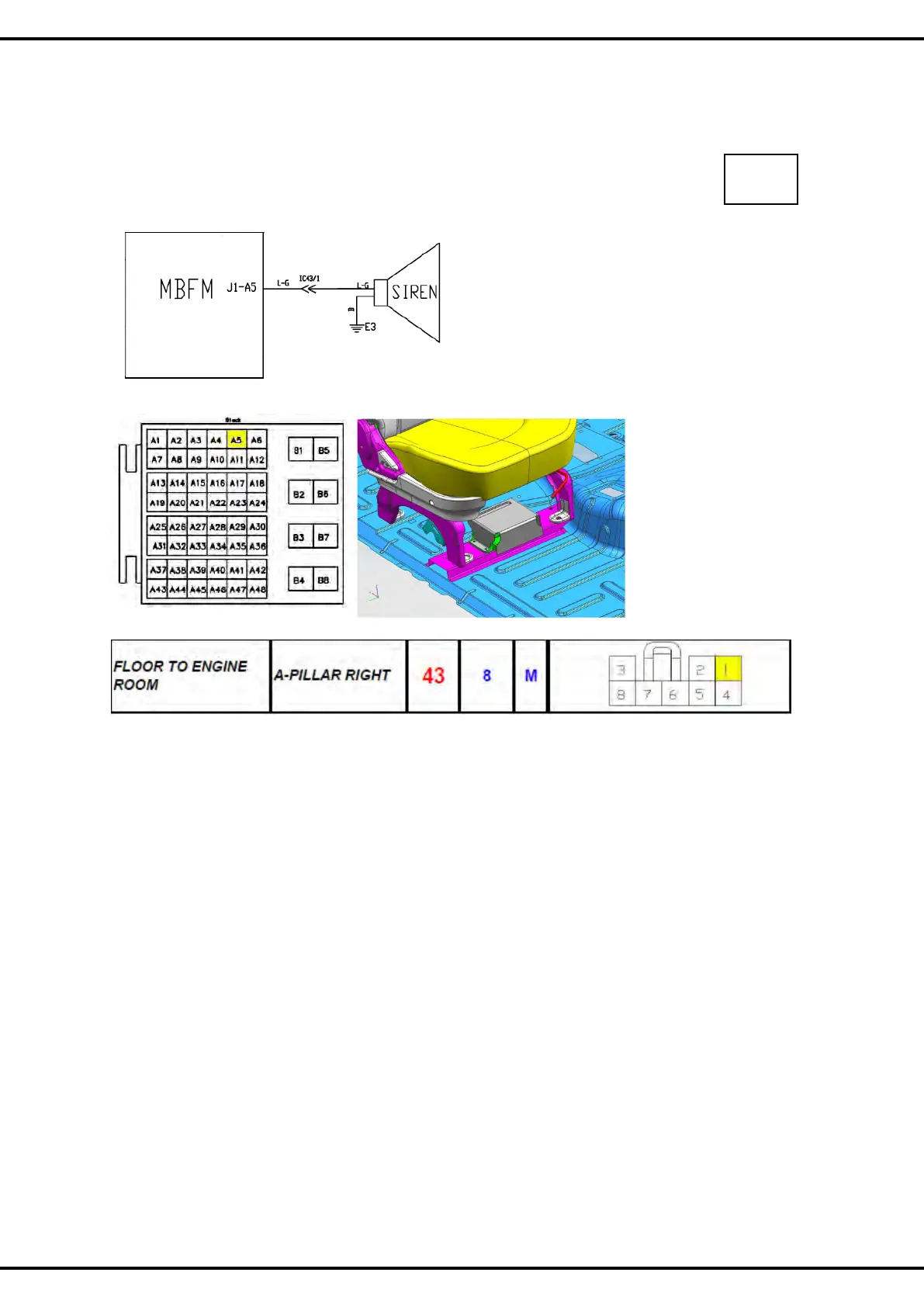

Wiring diagram
Rectification
Siren short to battery will be detected when the circuit is Open or if the there is a short
circuit to battery
If any wire is getting short to ground then the current flow increases and the complaint is
registered as short to ground.
Please note that once the complaint is resolved, the status will not change until security
system is used and the system finds that everything is in order.
B 1039
