BODY AIRBAG
SCORPIO
47
CHECK THE PASSENGER AIRBAG
NEGATIVE LINE FOR ISOLATION FROM
POWER
SRSD2

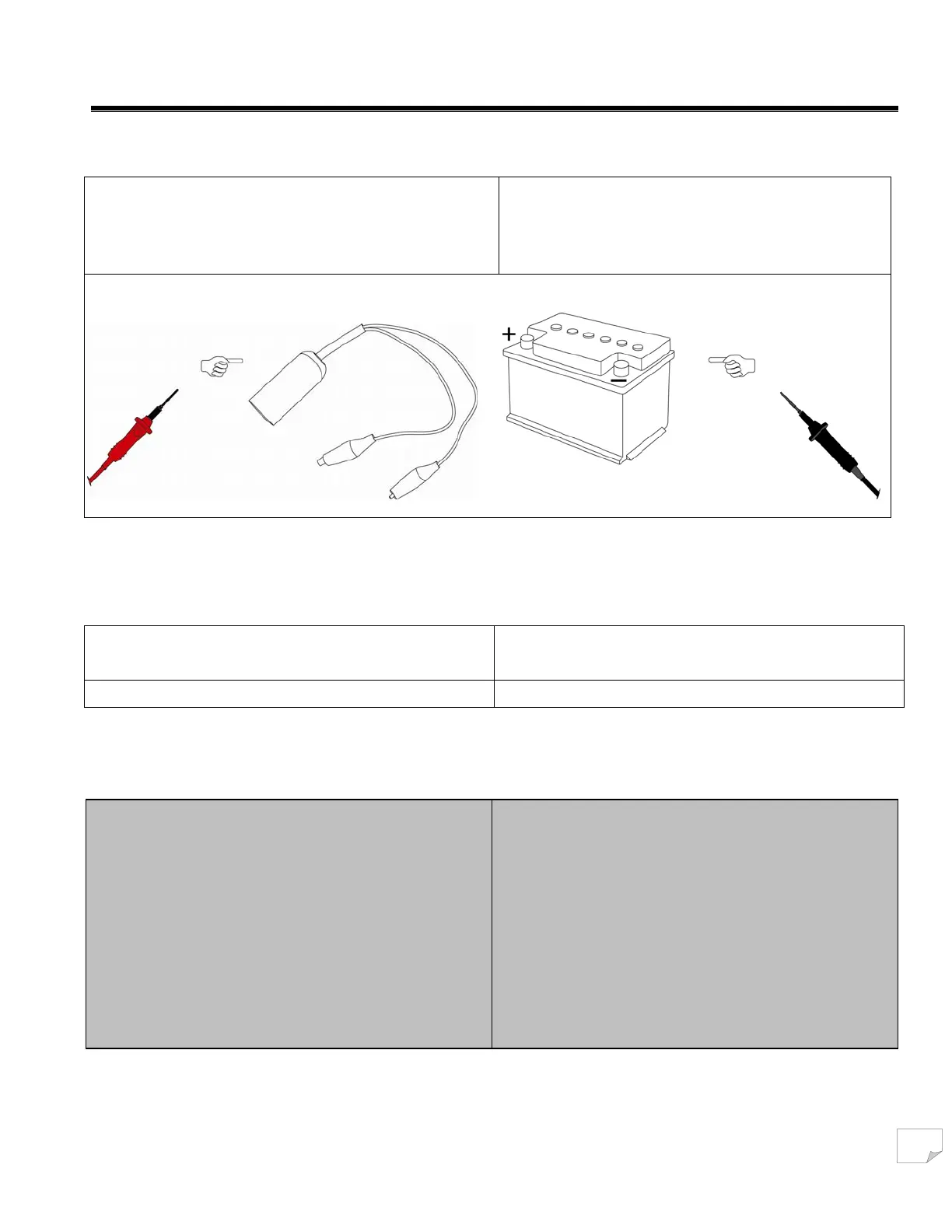

Measure the voltage between:
(+) Red Probe of Multimeter
Vehicle Battery
(-) Black Probe of Multimeter
Airbag Simulator, Fitted in PAB harness
Positive terminal Black Colour extension
Is the voltage more than 3.7 V?
YES
An intermittent fault may be present in the wiring
harness. Visually check for chaffed wires or other
physical damage to the harness. If no fault is found
in the circuit, suspect the following component(s):
a) PAB connector
b) Airbag module connector
c) PAB assembly
d) Airbag module.
NO
Replace the CCB wiring harness and reactivate the
system.
(Refer to Reactivation sheet.)
