M6*1*30 Hexagon Socket
Round Head Screw
×8
29
M4 Allen Wrench
×
1
4
3
9
29
22

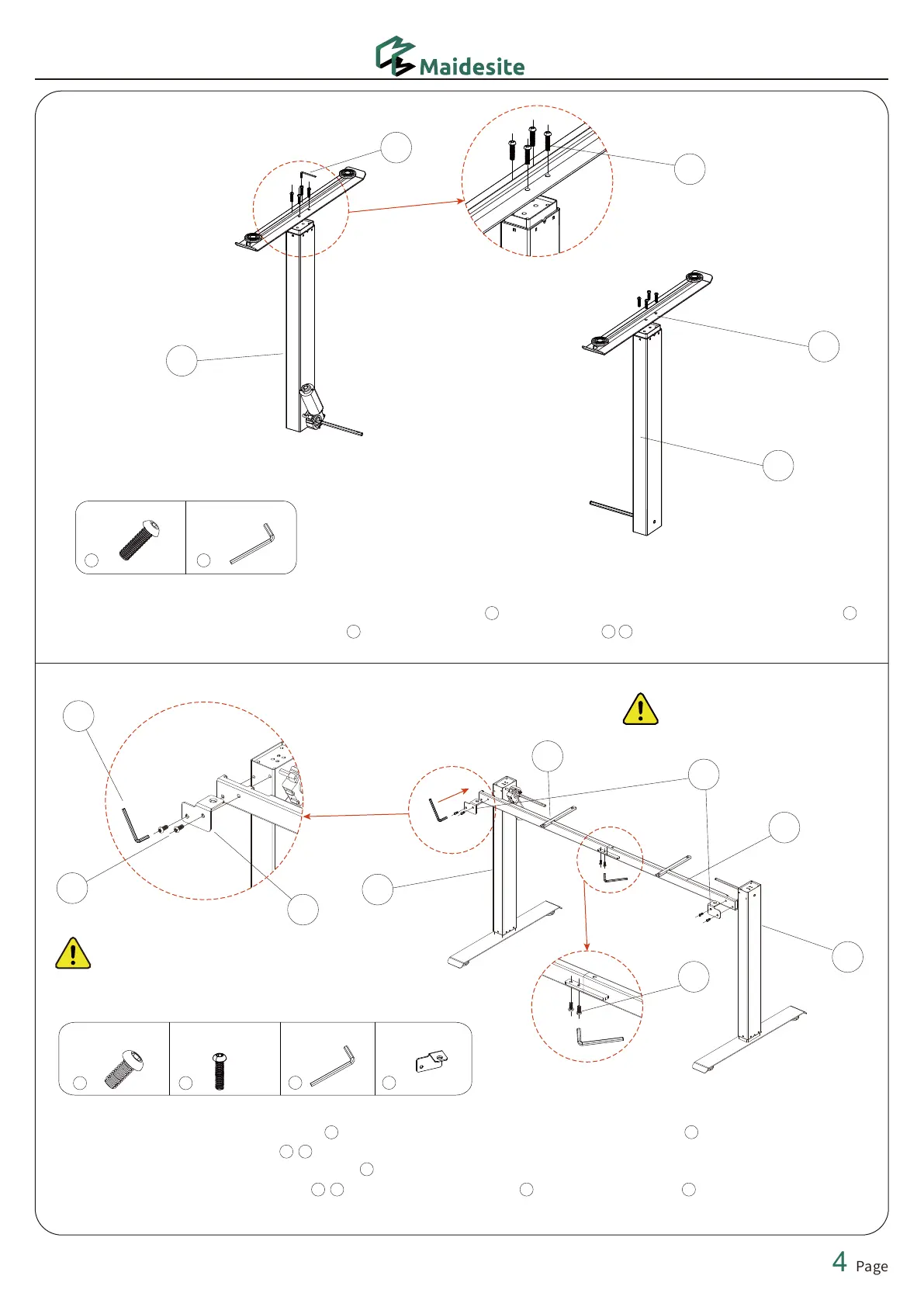

STEP 2: As shown in the figure, Use the M4 allen wrench and 8 M6*30 hexagon socket round head screws
to connect the two desk feet to the left and right lifting columns from the bottom.
22
29
9 3 4
STEP 3: First use the M4 allen wrench and 2 M6*14 hexagon socket round head screws to connect the left
and right frame beams (Pay attention to the directions).
Next, fix the frame beam fasteners (pay attention to the direction) to the corresponding screw holes of the
left and right lifting columns with an M4 Allen Wrench and 4 M6*30 screws as shown in the figure.
20
2229
29
32
65
43
Note: This step requires two people to assemble
together to prevent the lifting column from
tipping and causing a fall.
4
5
6
3
29
22
22
32
32
M6*14 Hexagon Socket
Round Head Screw
×2
M6*30 Hexagon Socket
Round Head Screw
×4
M4 Allen Wrench Frame Beam Fastener
×1 ×2
20 22
29 32
Note: Fasten frame beams and lifting
columns with M6*30 screws and
frame beam fasteners.
