Operating manual Series DP_en – Part-B-Version 10 – 19.03.2020
2/31
B

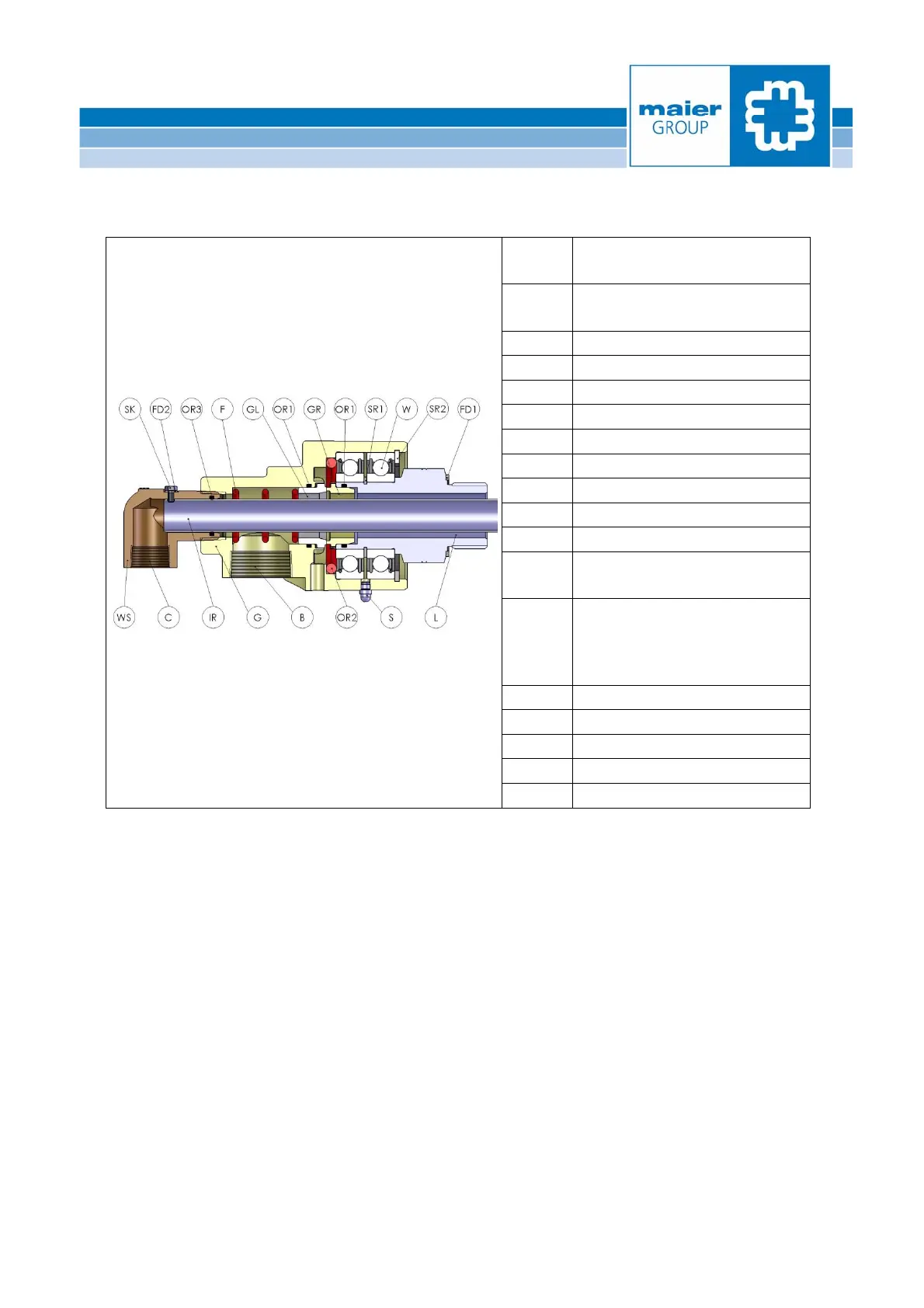

2.3 Components
B-1
SK
Hexagon screw
(two-way flow design)
FD2
Flat packing 2
(two-way flow design)
OR3 O-ring 3 (two-way flow design)
F Spring
GL Mechanical seal
2 x OR1 O-ring 1
GR Counter ring
SR1 Circlip 1
W Roller bearing
SR2 Circlip 2
FD1 Flat packing 1
WS
Elbow
(two-way flow design).
C, B
Housing connections for the
medium (the one-way flow design
(single passage) has only one
housing connection)
IR Inner pipe (two-way flow design)
G Housing (stationary)
OR2 O-ring 2
S Lubricant inlet
L Rotor (rotating)
