8.0 Flue Options
23
© Baxi Heating UK Ltd 2014

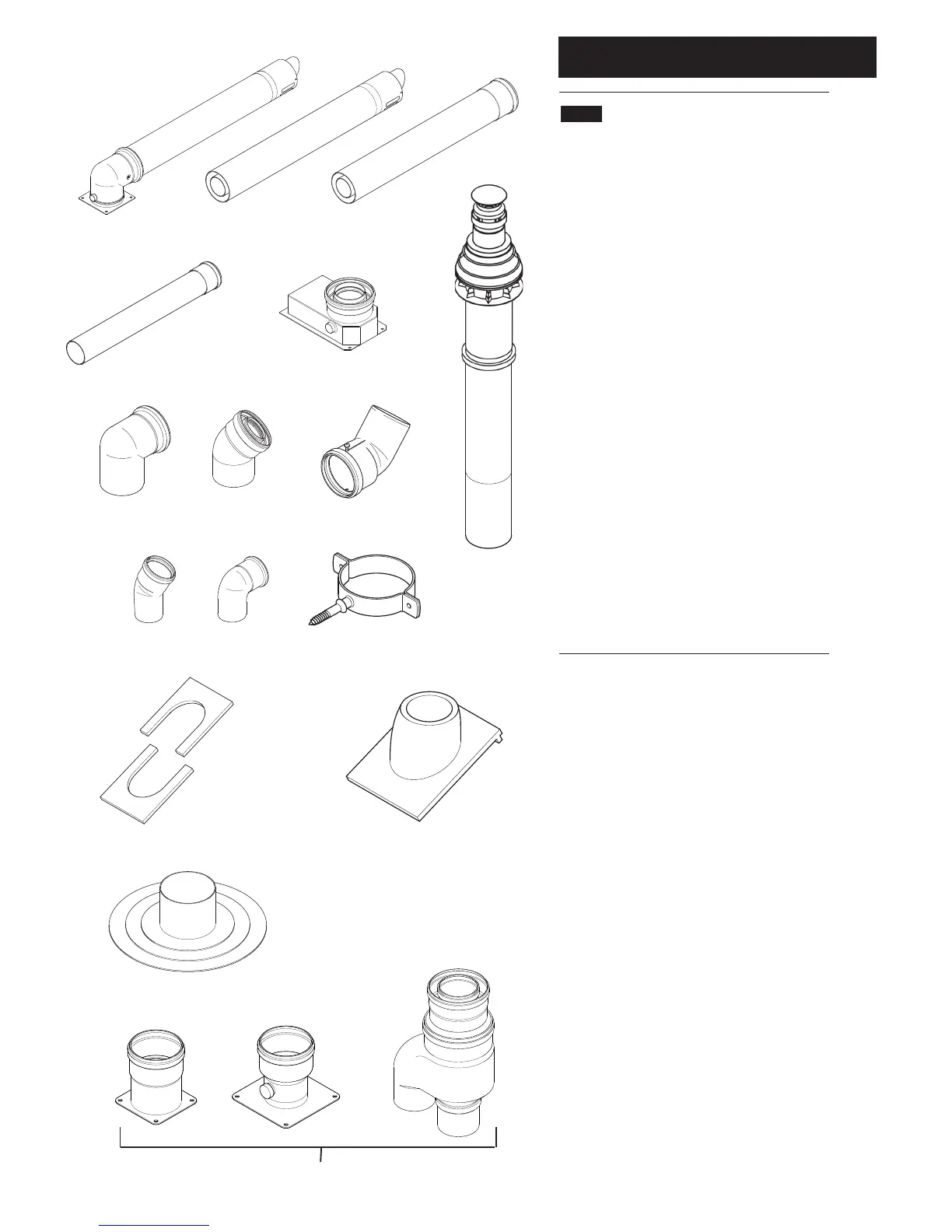

Key Accessory Size Code No
FLUE GROUP B
Concentric Flue System 110mm diameter
A1 Horizontal Flue Terminal 850mm 243013BAX
A Horizontal Flue Terminal (incl elbow) 236921
B Flue Extension 1000mm 241695
500mm 241694
250mm 241692
C Flue Bend 93° 241687
D Flue Bend (pair) 135° 241689
U Pipe Support 110mm 243014BAX
T Vertical Flue Boiler Adaptor 5106888
S Flue Terminal Deflector 248167
FLUE GROUP P
Twin Flue System 80mm diameter
E Flue Extension 1000mm 246137
500mm 246136
250mm 246135
F Flue Bend (pair) 90° 5121560
G Flue Bend (2 pair) 135° 5121561
J Vertical Flue Boiler Adaptor Kit 242757
W Pipe Support (pair) 80mm 5111081
FLUE GROUP B,P
Vertical Flue Kits
K Vertical Flue Terminal 242802
L Pitched Roof Flashing 25°/50° 243015
M Roof Cover Plate 243131
N Flat Roof Flashing 243016BAX
A
A1
B
K
T
D
C
N
U,W
S
L
J
M
E
G
F
8.3 Flue Accessories
