8.0 Flue Options
24
© Baxi Heating UK Ltd 2014

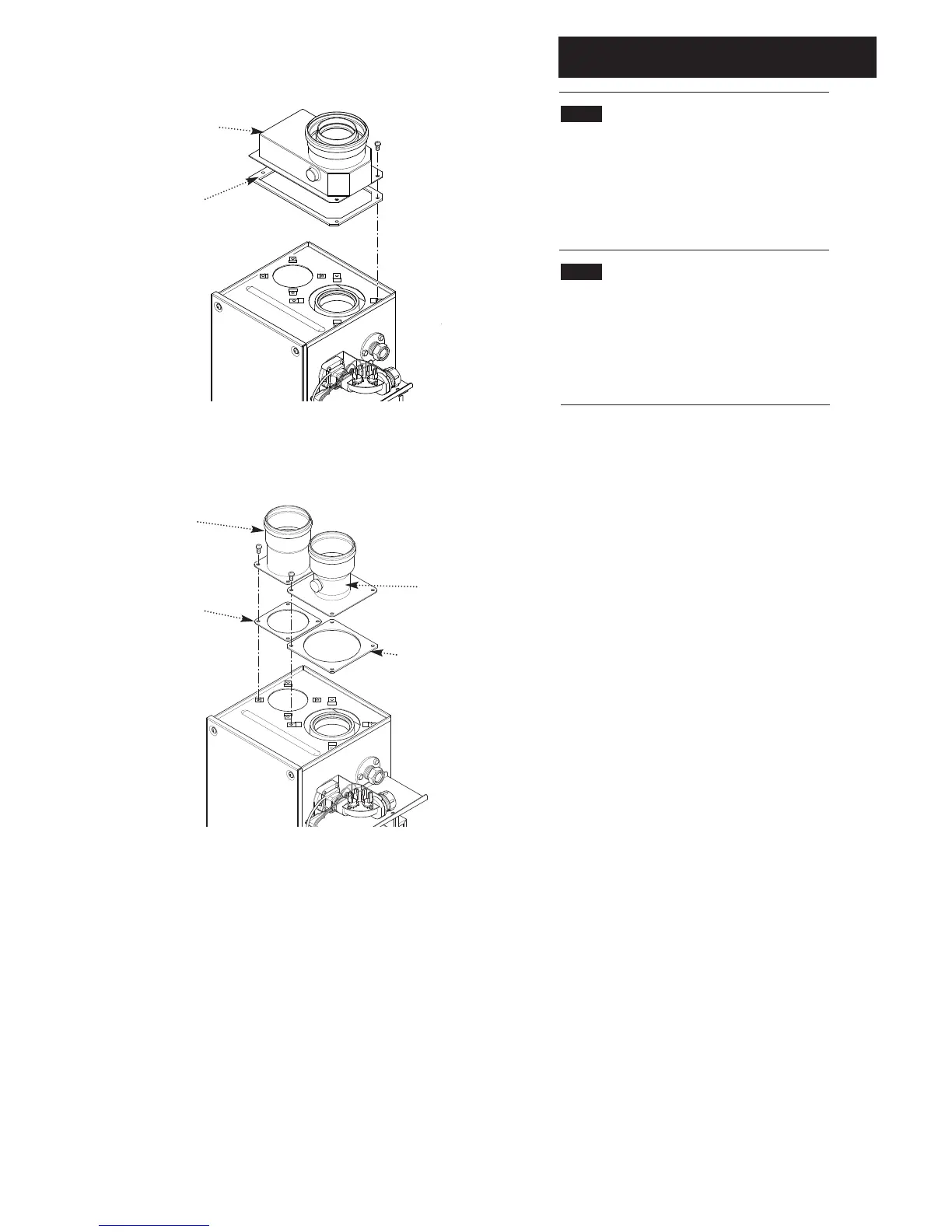

Vertical Flue
Adaptor
Gasket
8.4 For Vertical Flue Systems
1. Undo the screws securing the blanking plate to the
boiler top panel. Discard the plate.
2. Fix the vertical adaptor and gasket to the top panel with
the previously removed screws.
8.5 For Twin Flue Systems
1. Undo the screws securing the blanking plate to the
boiler top panel. Discard the plate.
2. Fix both the air and flue adaptors with their gaskets
onto the boiler top panel. Secure with screws.
For Vertical Flues
For Twin Flues
Air Duct
Adaptor
Flue Duct
Adaptor
Gasket
Gasket
To Next Page
