10
Assembly Instructions for Table-top Display

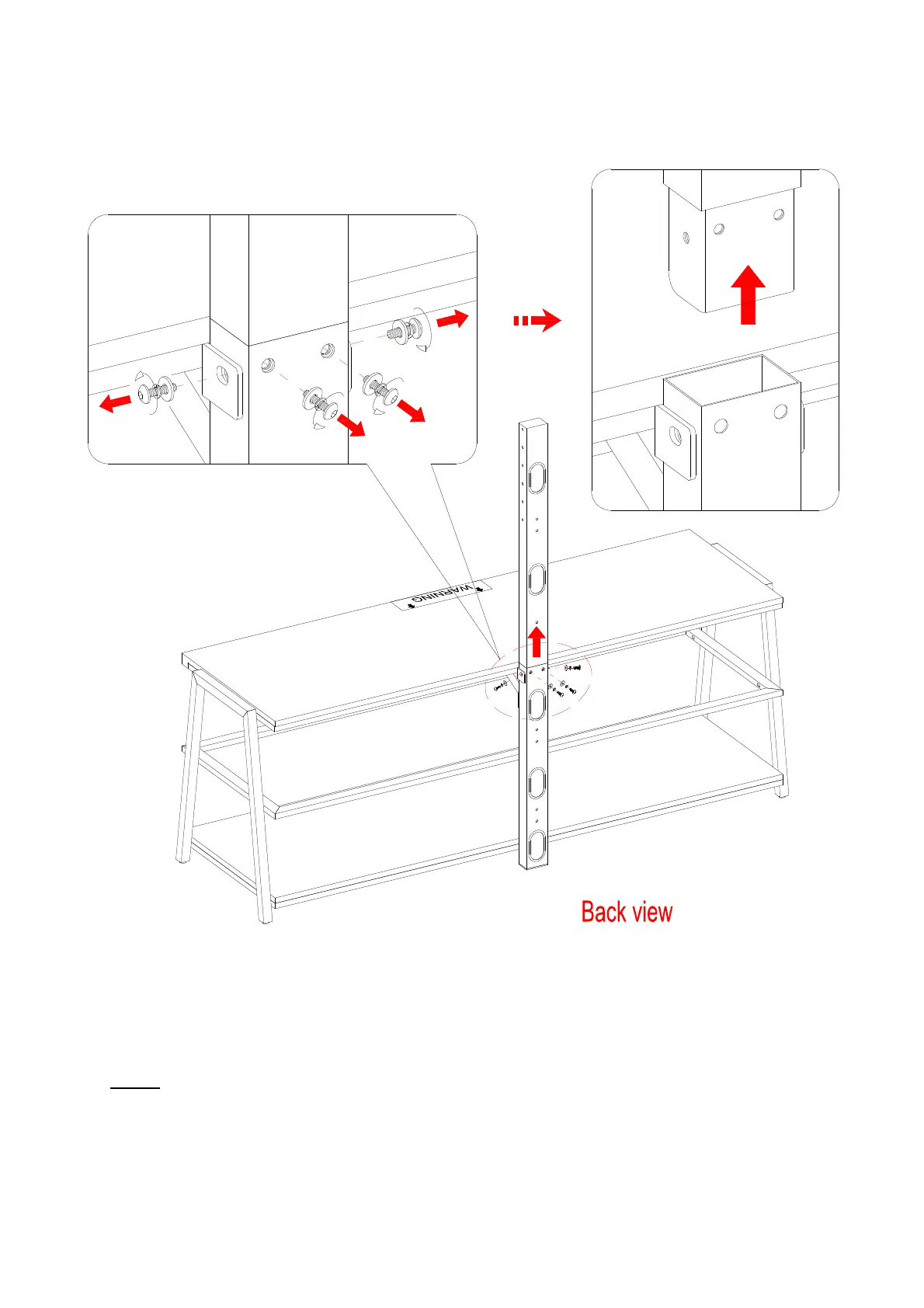

11. Remove the Upper Spine from the assembled unit by unscrewing the four bolts and four
washers with the provided hex wrench as shown.
NOTE: The upper spine is pre-installed for shipping. Keep the bolts and the washers for the
future used.
D
A
D
D
D
A
