The Side Mount Topper is often supplied in kit form; please ensure that all components are tted before using the
machine. Ensure the damper system is correctly set up as shown below. Ensure primary PTO shaft is tted correctly
with the Shearbolt / Overrunning clutch tted onto the primary gearbox of the machine and a standard yoke end on the
tractor PTO drive.

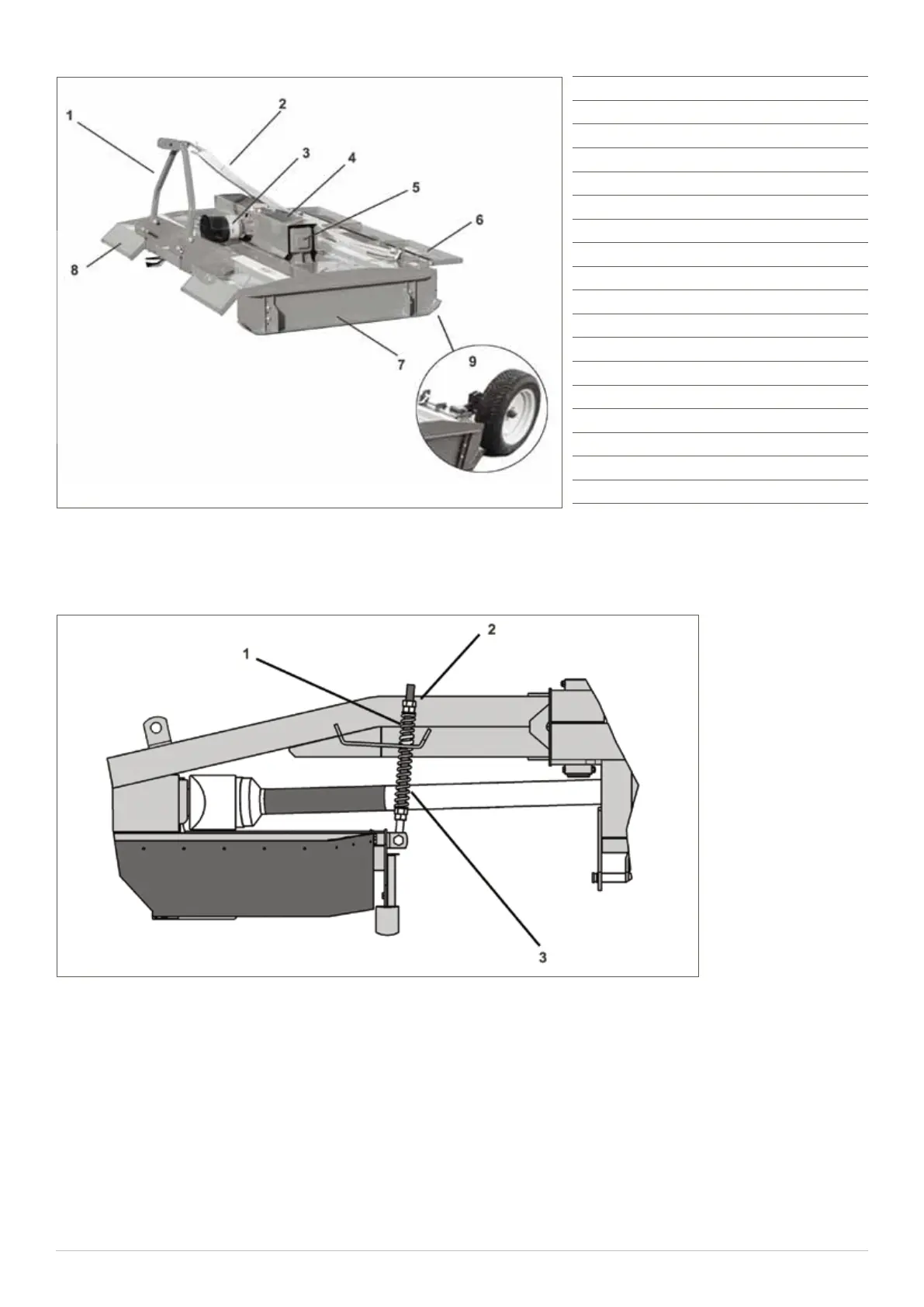

800SM and 900SM
No Name
1 Hydraulic ram
2 Float
3 Headstock
4 Transport locking pin (in transport)
5 Carrying arm
6 Gearbox cover
7 Rotor gearbox
8 Front guard
9 Skid
10 Read guard
11 Secondary shaft
12 PTO guard
13 Transport locking pin ( when mowing)
14 Hydraulic hoses
15 Skid
16 Long damper spring
17 Short damper spring
No Name
1 Short spring
2 Nyloc nut
3 Long spring
Starting Regulations
Always check that any imminently dangerous conditions have been eliminated before using the machine. Ensure all
guarding is present & the operator is fully aware of the operations of the machine
Always ensure the pins lock the PTO shaft yoke ends onto the spline shafts on both the tractor and the implement. An
unlocked shaft could slip out of position, causing notable mechanical damage and serious injury to both operator and
bystanders.
