Major M-360 - Specifications; Receiver; Transmitter; Microphone wiring

Sensitivity
· [AM] 1 µV at 10dB S/N
· [FM] 0.5 µV at 20 dB S/N
· [SSB] 0.5 µV at 10 dB S/N
Spurious rejection ratio: 40dB
Squelch Sensitivity at
Maximum [AM/FM]: 300 µV
Squelch Sensitivity at
Maximum [SSB] 300 µV
Squelch Sensitivity at
Threshold [AM/FM]: 1 µV
Squelch Sensitivity at
Threshold [SSB]: 0.7 µV
A.G.C. (As measured to
EIA specs): 70 dB
IF response at 6 dB down
bandwidth [AM/FM]: 6 kHz
IF response at 6 dB down
bandwidth [SSB]: 2 kHz
Adjacent Channel
Selectivity: 40 dB
Adjacent Channel
Selectivity: 40 dB
Frequency Stability: ±0.005%
Audio Output Power at
Maximum [8 Ohm]: 4W
Audio Output Power at
10% distortion [8 Ohm]: 3W
Audio Fidelity at
3,000 Hz: -15 dB
S-Meter Sensitivity for S-9: 100µV
Current Drain at no signal: 350 mA
Current Drain at Maximum
Audio Output: 1500mA
Receiver
Specifications
RF Output Power at 13.8V DC
[SSB] 20W PEP nominal
[AM/FM] 10W nominal
Modulation Capability
[AM]: 100% Down
Frequency Stability: ±0.005%
SSB Generation: Double balanced
Modulator with
Crystal lattice filter
Carrier Suppression [SSB]: 40dB down
Unwanted Sideband
Suppression [SSB]: 60dB down
Harmonic Suppression: 60dB down
FM Deviation with 20 mV
1260 Hz audio: 1.5 kHz
Current Drain at no
Modulation: 1850 mA [AM]
800 mA [SSB]
Current Drain at Maximum
Modulation: 2.4 A [AM]
Transmitter
- 1 -
Microphone wiring

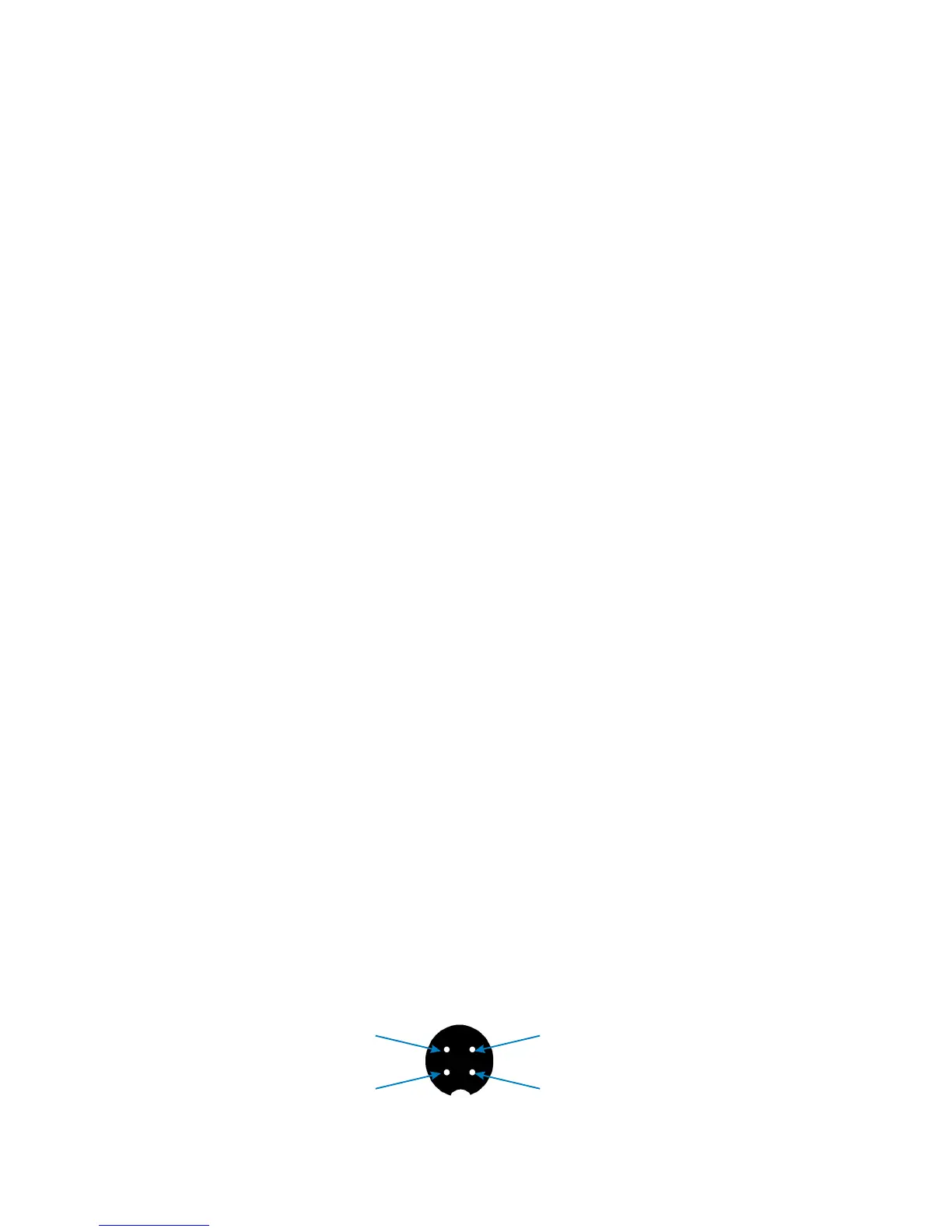

Microphone connection for Major M360 (Viewed from Solder Side of the plug)
TX
Transmit
RX
Receive
COM
Common
/ Screen
AUD
Mic. Audio
